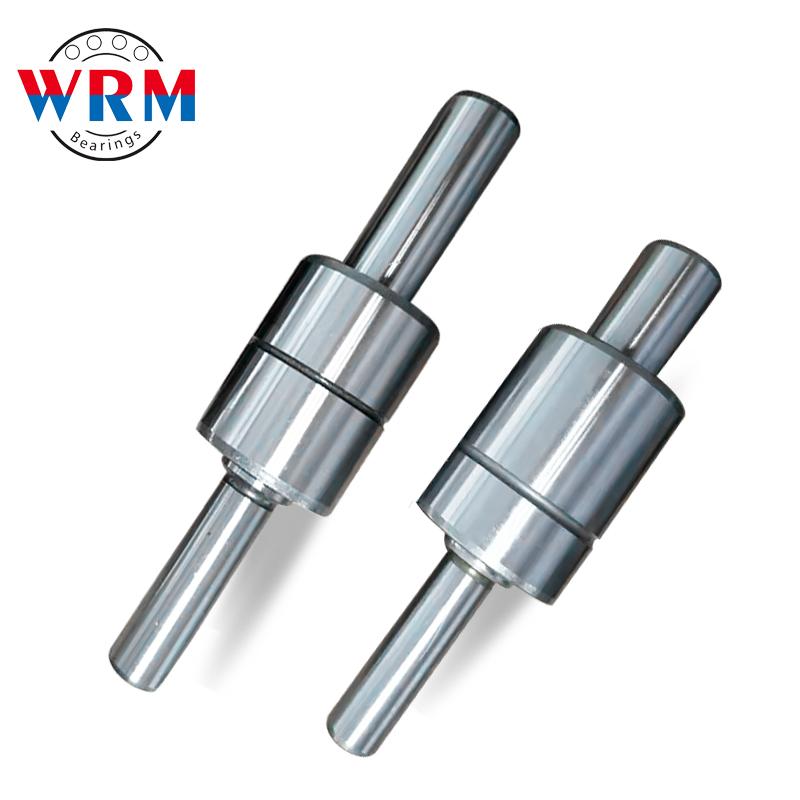

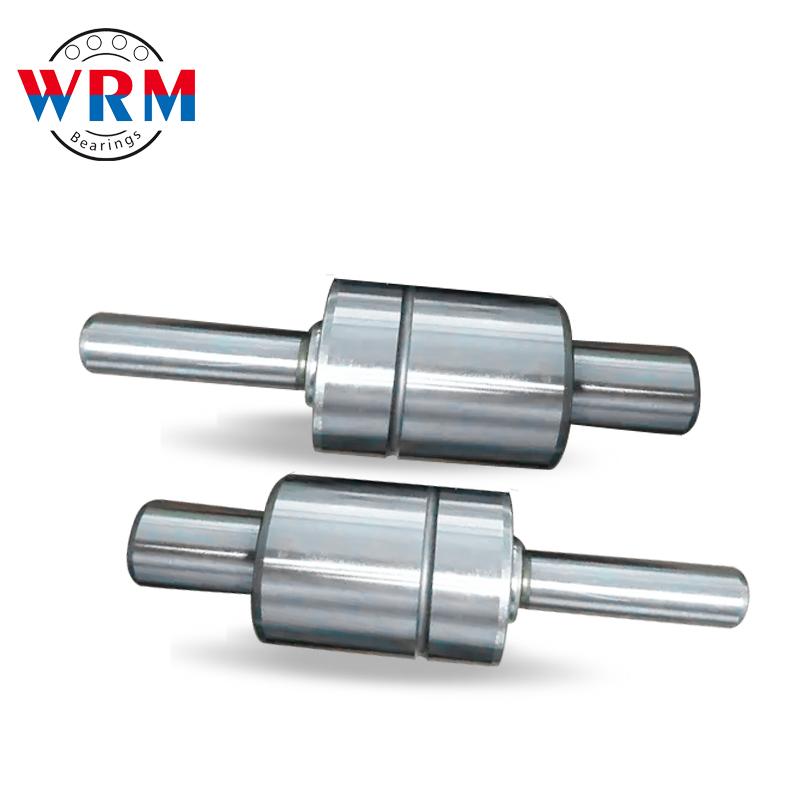

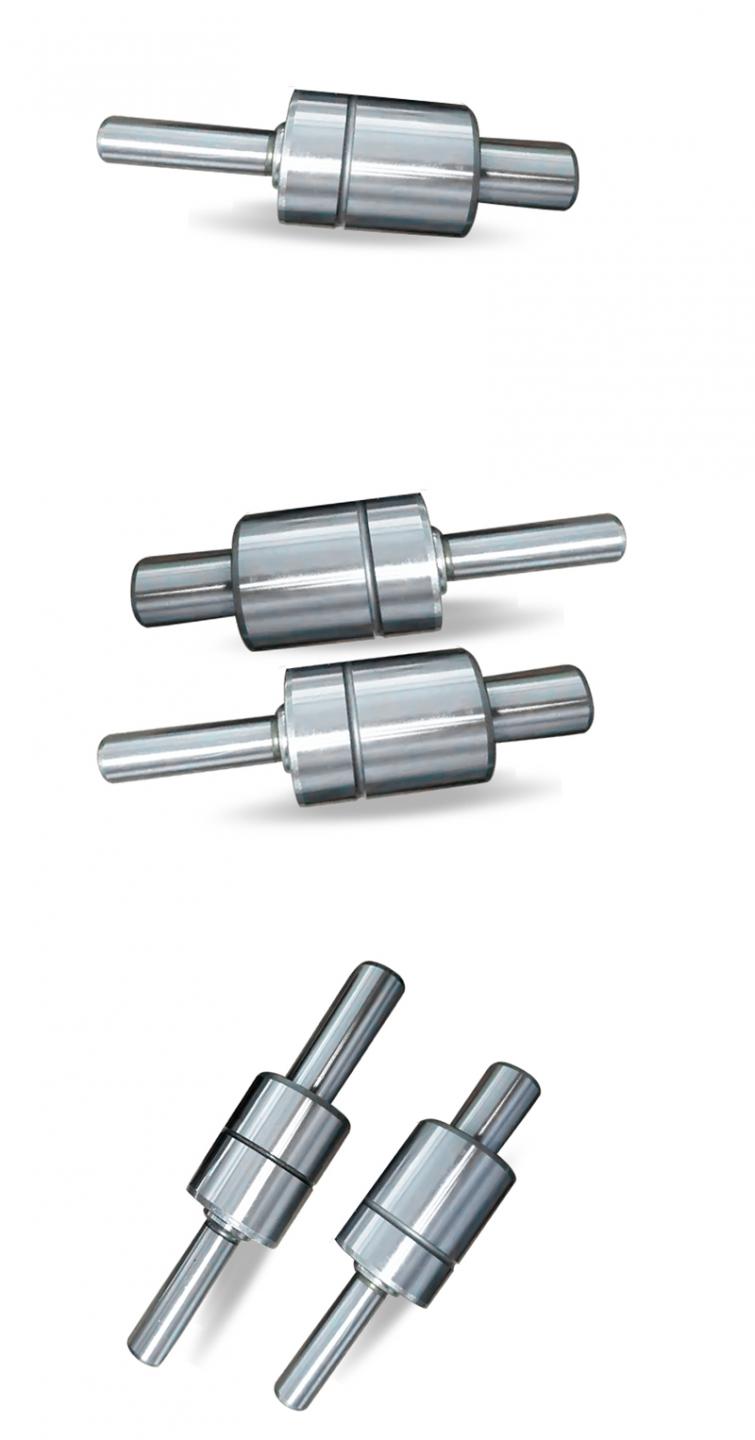

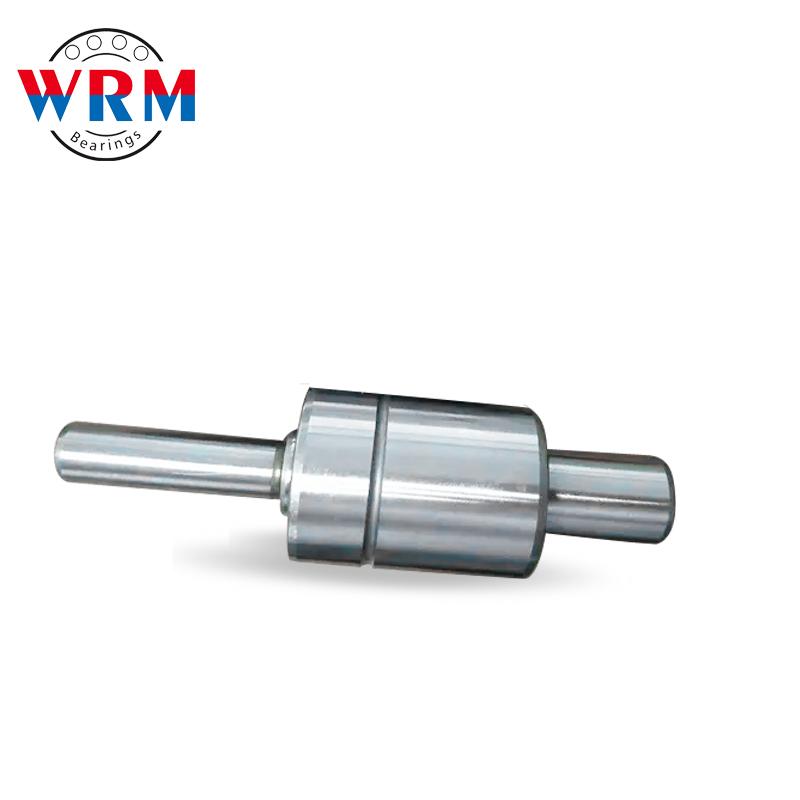

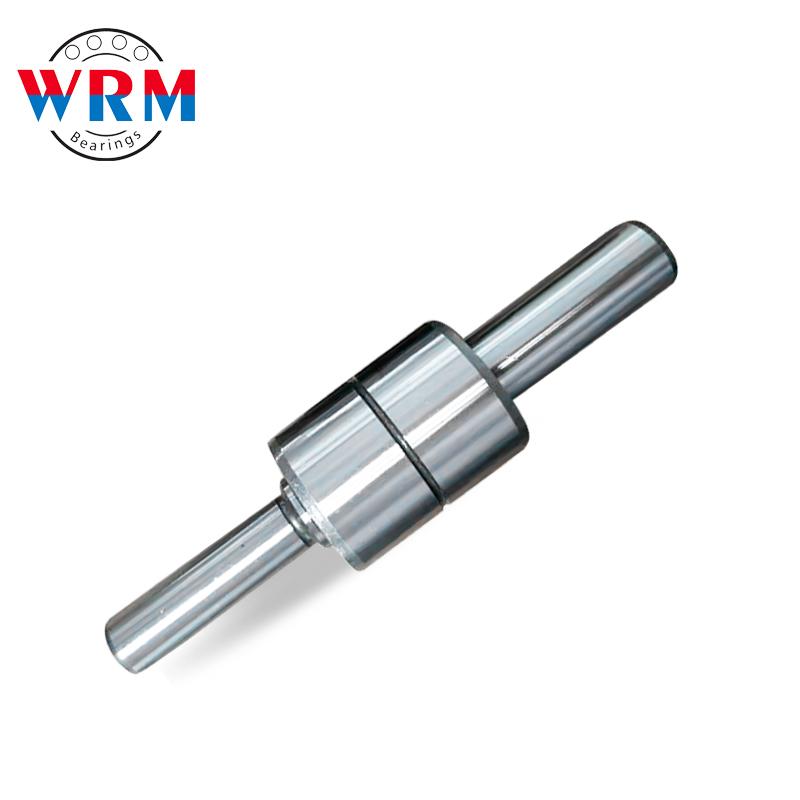

Water pump bearing WB1630068

The pump bearing is water-resistant, corrosion-resistant, has a suitable load-bearing capacity, is low-noise and wear-resistant, and can meet the wet working conditions and power transmission requirements of the pump. It can simultaneously withstand radial loads (water flow impact, rotor self-weight) and axial loads (pump shaft movement). Some models can adapt to installation deviations through self-aligning design.

Description

Product Name	Water pump bearing WB1630068
Material	Chrome Steel
Inside diameter	24-30mm
Outside Diameter	31.5-39mm

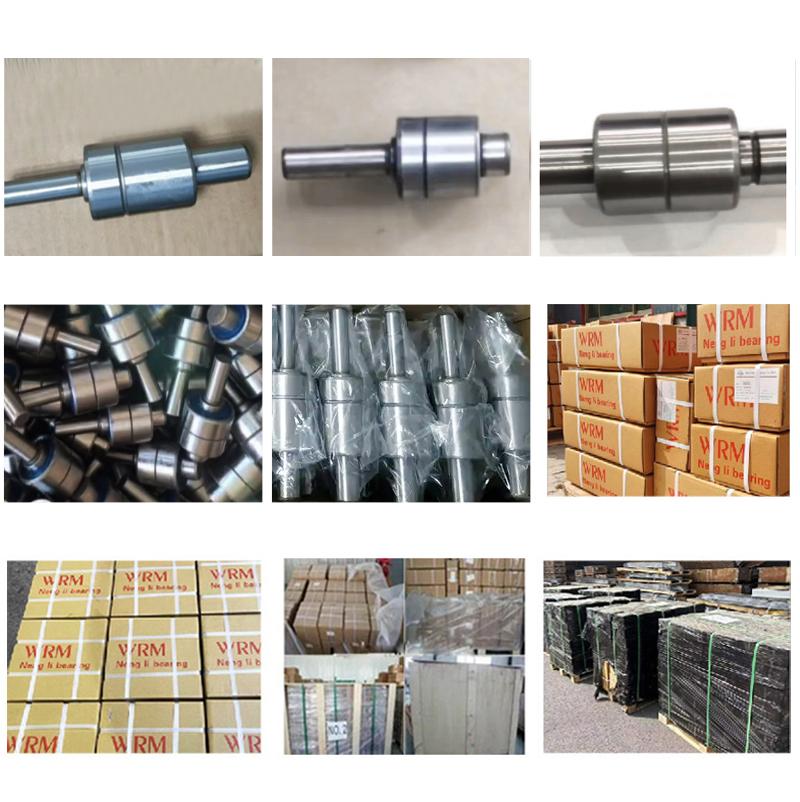

Packing	According to the buyer requests for packaging

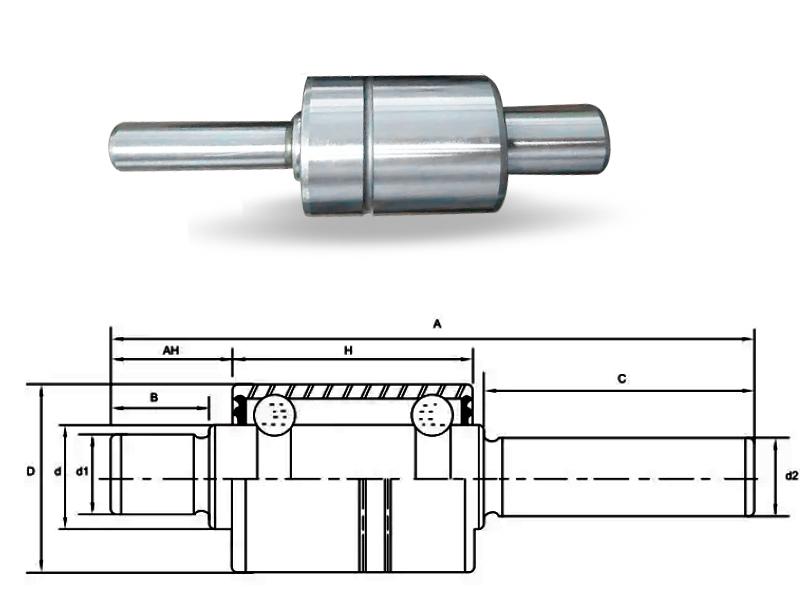

Designation	Principal Dimension
Designation	D	H	A	AH	d	d1	d2	B	C
WB1024081	24	31.5	81	19.5	10	—	—
WB1024091	24	31.5	91	19.5	10	—	—
WB1226086	26	39	86.5	16.5	12	10	10
WB1226094	26	39	94.5	16.5	12	10	10
WB1226102	26	39	102.5	16.5	12	10	10
WB1226092	26	39	91.5	21.5	12	10	10
WB1226100	26	39	99.5	21.5	12	10	10
WB1226108	26	39	107.5	21.5	12	10	10
WB1226104	26	39	104	26	12	10	10
WB1226112	26	39	112	26	12	10	10
WB1630068	30	38.89	68.4	25	15.918
WB1630069	30	38.89	68.66	27.8	15.918
WB1730071	30	23	71	13.5	17				32
WB1630073	30	38.89	73	17	16
WB1630074	30	38.89	73.91	11.4	15.918
WB1630076	30	38.89	75.6	27.01	15.918
WB1730078	30	23	77.8	15.5	15.918		12		37.3
WB1630080-1	30	30	79.6		15.918		12		33
WB1630080-4	30	27	80	15.9	15.918
WB1630080-3	30	23	80.3	17.2	15.918		12		38.5
WB1630080D	30	30	80	18	16	12	12	17	31
WB1630081	30	38.89	80.95	22.48	15.918
WB1630083	30	27	82.5	17.7	15.918
WB1630083D	30	30	83	18	16		12		33.8
WB1630083C	30	25	83.1	16	15.918
WB1630084	30	30	84	17	15.918		12		33
WB1630084-1	30	38.89	84.4	13	15.918		12		30
WB1630085-2	30	27	84.4	17	15.918
WB1630085D	30	38.89	84.99	15.07	15.918		12.037		28
WB1530085	30	38.89	85	13.06	15		12		28.5
WB1630085-1	30	38.89	85.22	15.21	15.918		12.042		29.21
WB1630086	30	30	86	16.5	15.918		12		37
WB1630086D	30	38.89	86	17	16	15	12	16	33
WB1630087C	30	38.89	86.5	13.5	15.918		12.038		32.7
WB1630087-4	30	38.89	86.5		15.918		12		32
WB1630087-1	30	38.89	87.4		15.918
WB1630088-2	30	30	87.5	13.5	15.918		12		37.5
WB1630088-1	30	38.89	88	12.4	15.918		12		35.3
WB1630091C	30	38.89	91	13.5	15.918		12		36
WB1630091D	30	38.89	91.5	17.56	15.918	12	12	15.5	33
WB1630092-1	30	38.89	91.85	20.45	15.918		12.675		29.34
WB1630092D	30	38.89	92	16.5	15.918	12	12	14.5	34.5
WB1630092-2	30	38.89	92		16
WB1630092	30	38.89	92.48	25.12	15.918		12.037		26.06
WB1630093D	30	38.89	92.5	16.5	15.918		12		34.5
WB1630093-1	30	38.89	93	18.5	15.918		12		32.6
WB1630093	30	38.89	93	18.5	15.918
WB1630094	30	38.89	94.5	35.11	15.918
WB1630093D	30	38.89	94.6	19.2	15.918		12		33.5
WB1630093-1	30	38.89	96.5	17.87	15.918		12.052		35.45
WB1630093	30	30	97		15.918
WB1630094	30	38.89	97.51	23.49	15.918
WB1630098-2	30	38.89	97.65	19.05	15.918		12.675		36.53
WB1630098-6	30	38.89	97.65		15.918
WB1630098-3	30	38.89	97.82	17.88	15.918
WB1630098A	30	38.89	98	17	15.918
WB1630098-4	30	38.89	98	20	15.918
WB1630098W	30	38.89	98	16.5	15.918
WB1630098C	30	38.89	98	16	15.918		12		40.6
