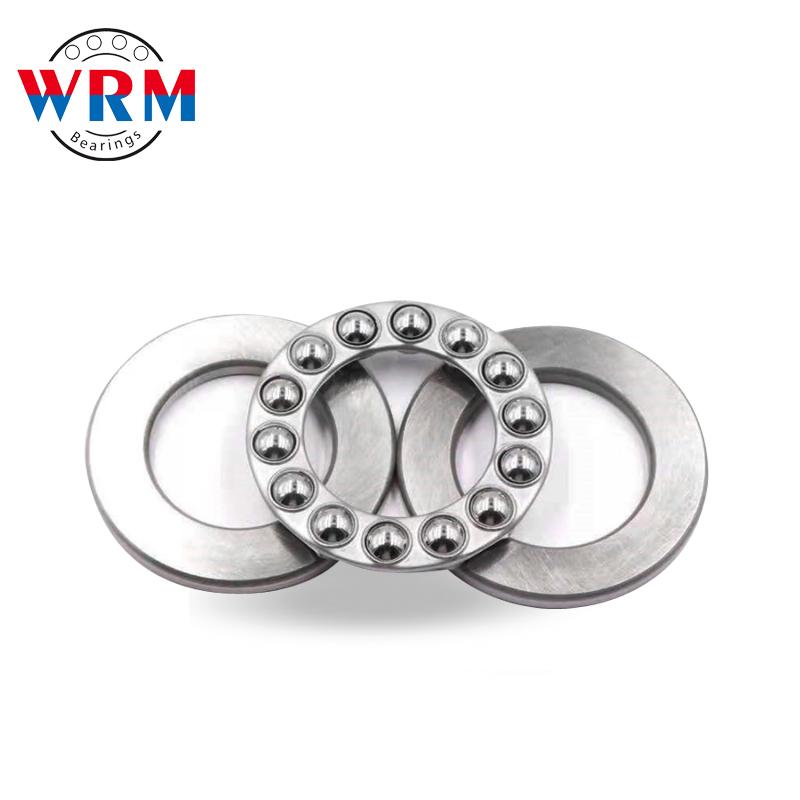

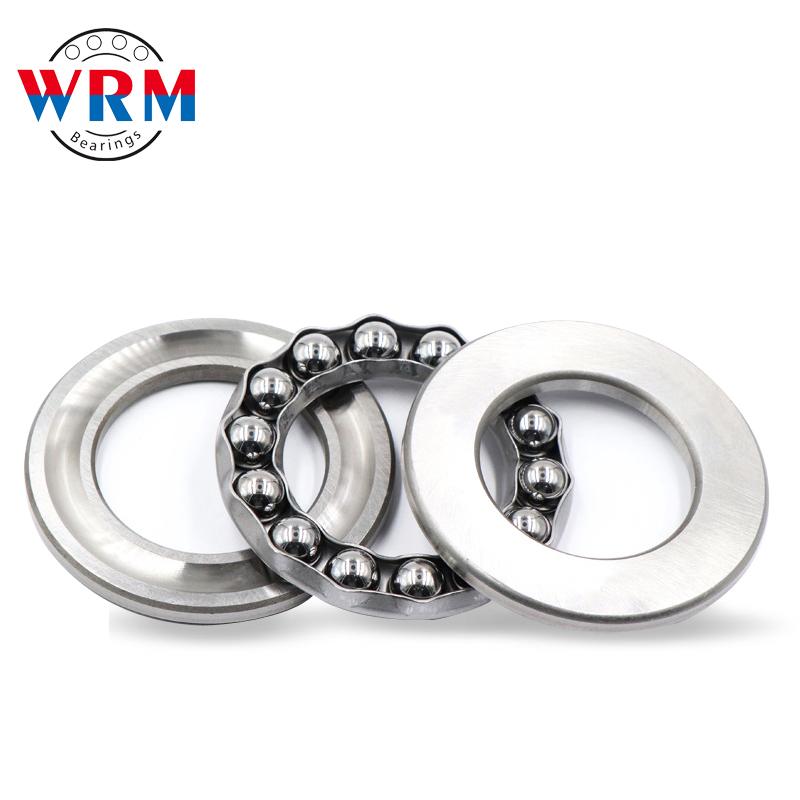

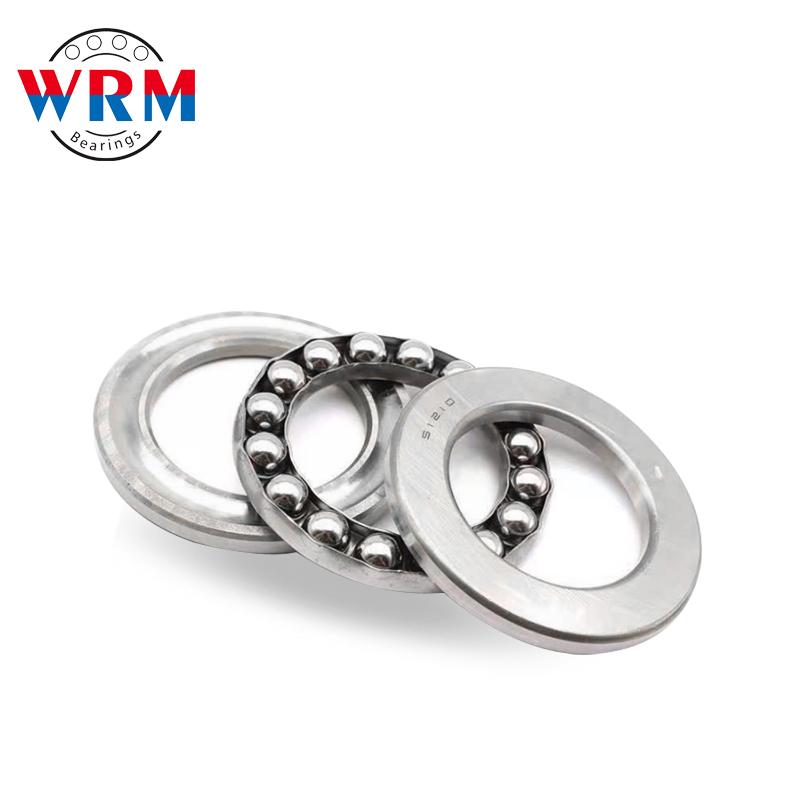

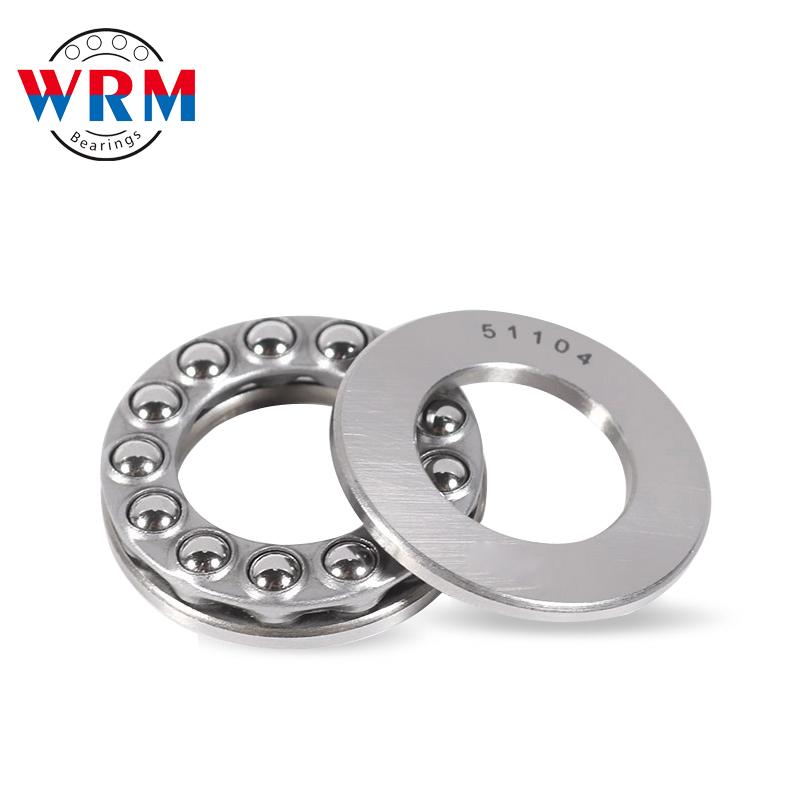

Thrust Ball Bearing 52204

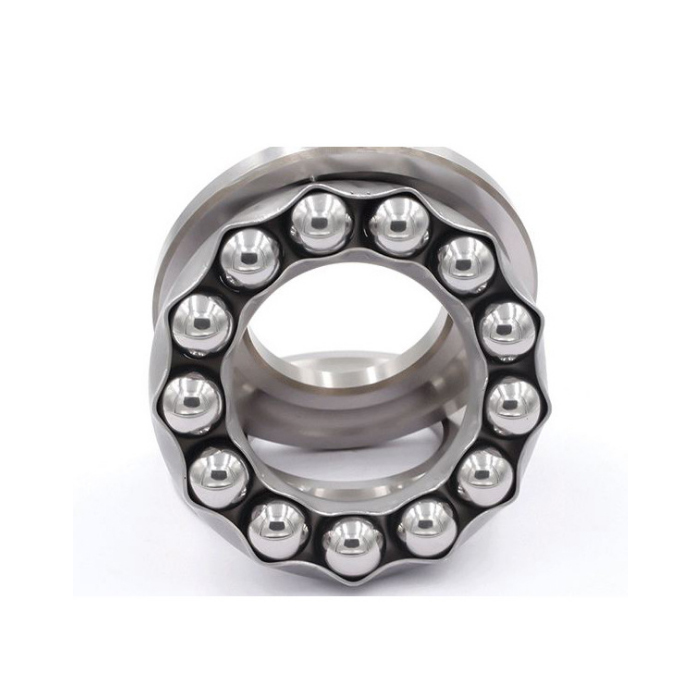

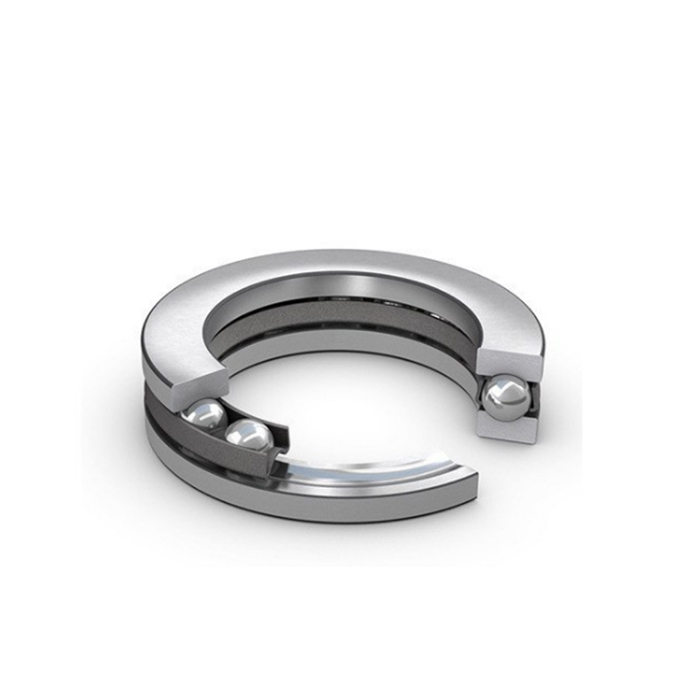

Thrust ball bearing is composed of seat ring, shaft ring and steel ball retainer assembly.
The bearing ring matched with the shaft and the bearing ring matched with the housing.

Thrust Ball Bearing: it is only suitable for the machine parts that bear one axial load and low speed, such as crane hook, vertical pump, vertical centrifuge, jack, low speed reducer, etc.

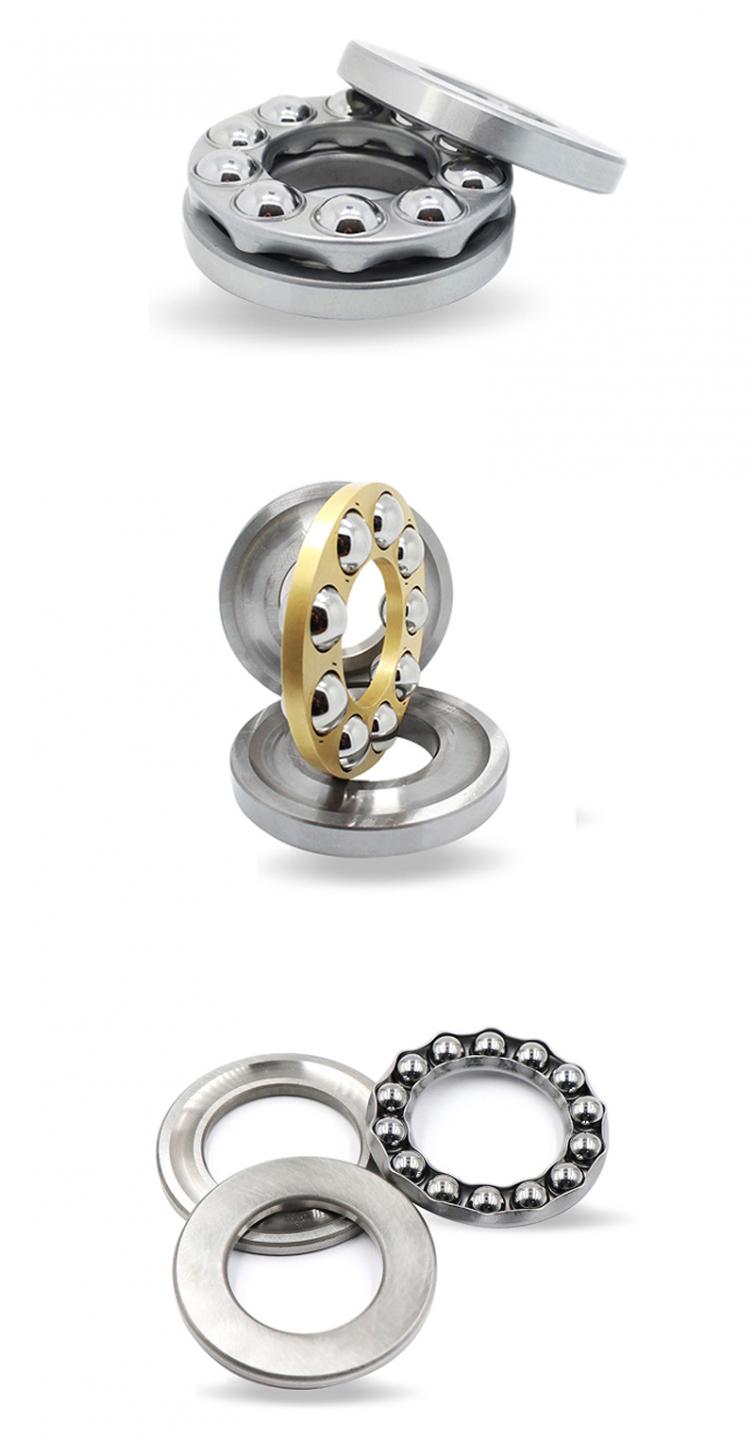

The shaft ring, seat ring and rolling body of the bearing are separated and can be installed and removed separately.

Description

Product Name	Thrust Ball Bearing 52204
Material	Chrome Steel
Inside diameter	20-150mm
Outside Diameter	40-300mm

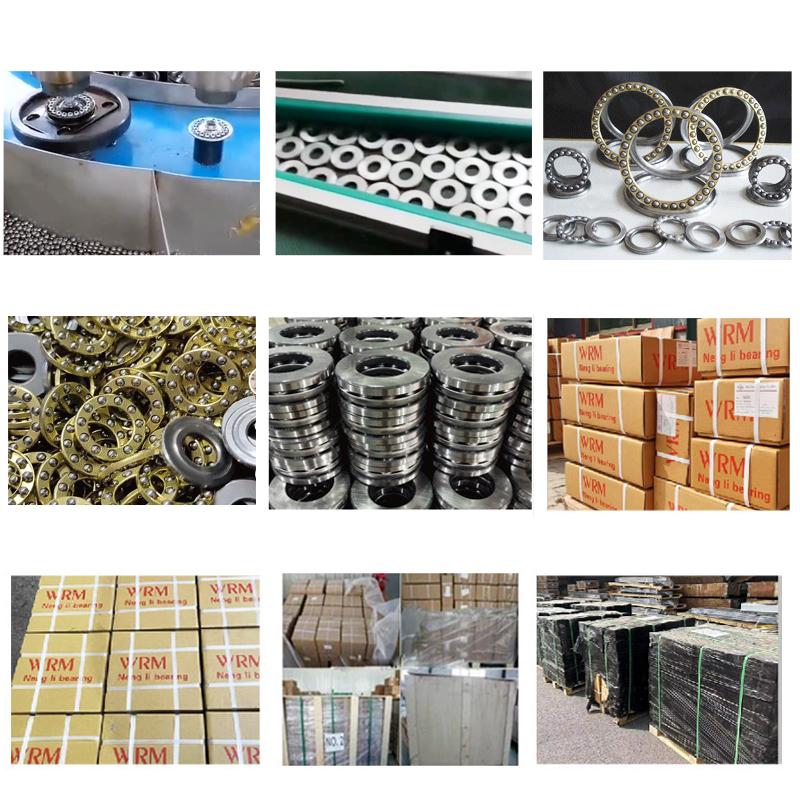

Packing	According to the buyer requests for packaging

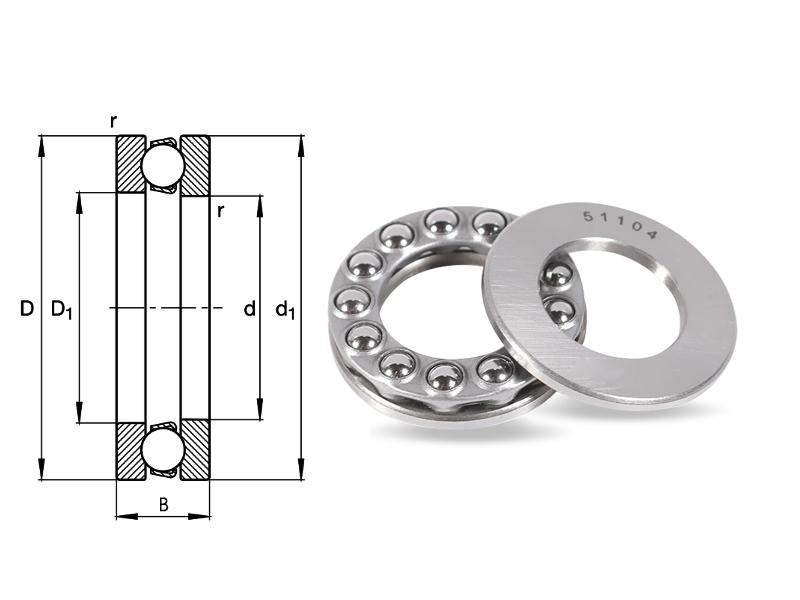

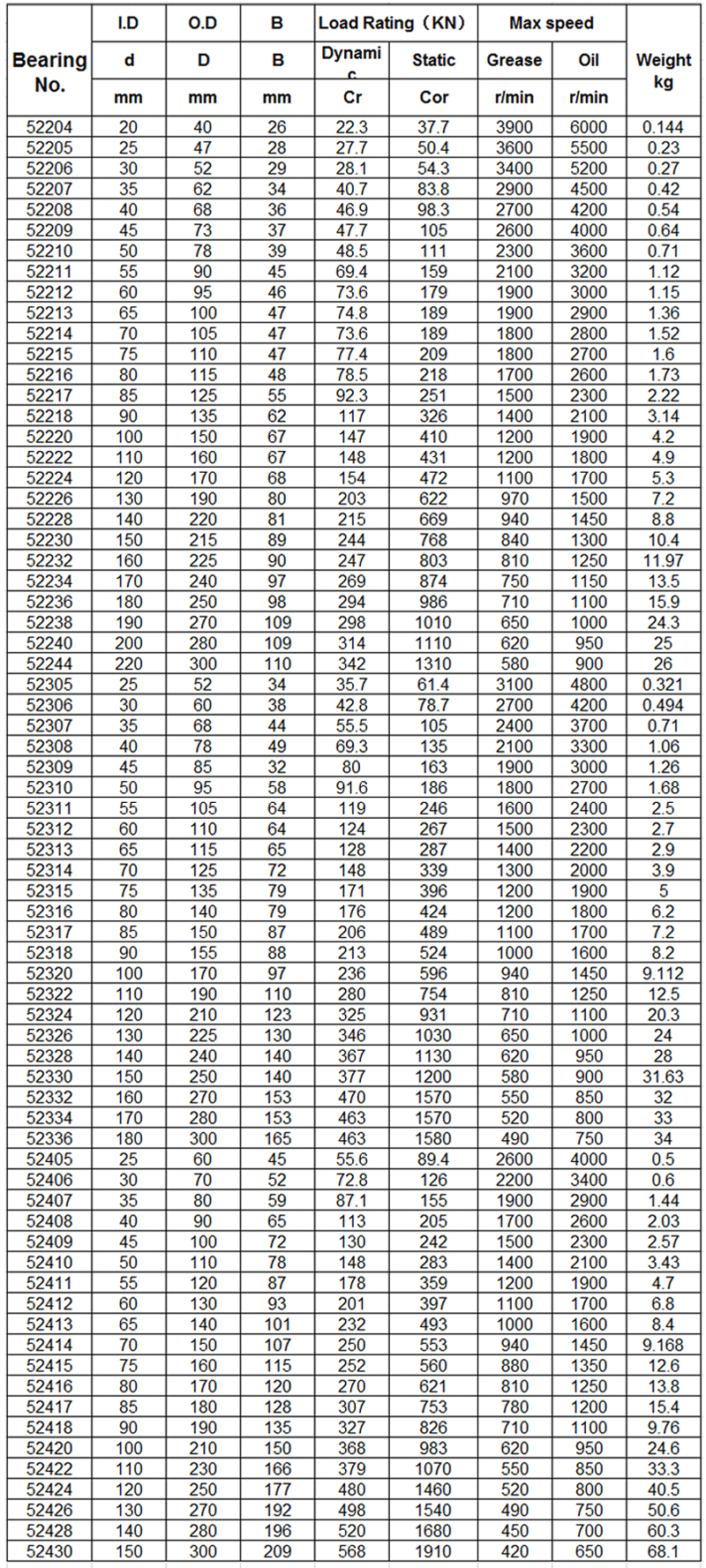

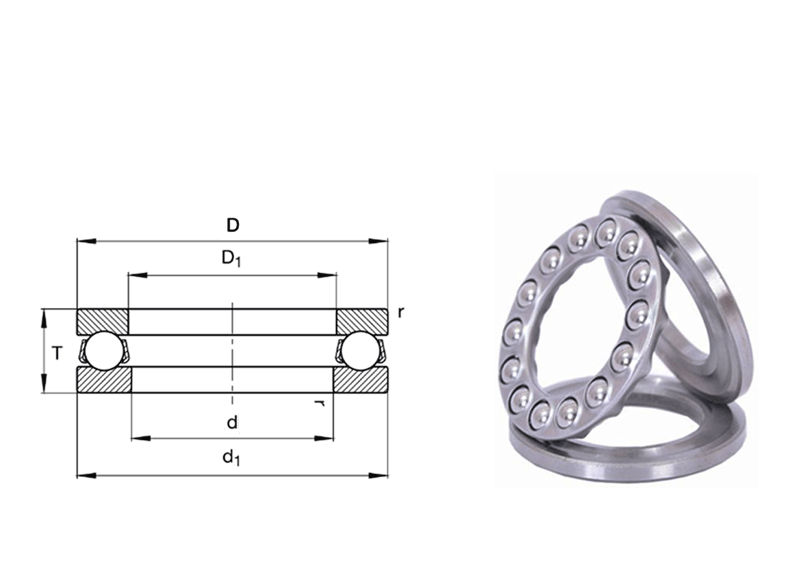

Designation	Principal Dimension			Basic Load Ratings（KN)		Speed ratings(r/min)		Weight (kg)
Designation	d	D	B	Dynamic	Static	Grease	Oil	Weight (kg)
52204	20	40	26	22.3	37.7	3900	6000	0.144
52205	25	47	28	27.7	50.4	3600	5500	0.23
52206	30	52	29	28.1	54.3	3400	5200	0.27
52207	35	62	34	40.7	83.8	2900	4500	0.42
52208	40	68	36	46.9	98.3	2700	4200	0.54
52209	45	73	37	47.7	105	2600	4000	0.64
52210	50	78	39	48.5	111	2300	3600	0.71
52211	55	90	45	69.4	159	2100	3200	1.12
52212	60	95	46	73.6	179	1900	3000	1.15
52213	65	100	47	74.8	189	1900	2900	1.36
52214	70	105	47	73.6	189	1800	2800	1.52
52215	75	110	47	77.4	209	1800	2700	1.6
52216	80	115	48	78.5	218	1700	2600	1.73
52217	85	125	55	92.3	251	1500	2300	2.22
52218	90	135	62	117	326	1400	2100	3.14
52220	100	150	67	147	410	1200	1900	4.2
52222	110	160	67	148	431	1200	1800	4.9
52224	120	170	68	154	472	1100	1700	5.3
52226	130	190	80	203	622	970	1500	7.2
52228	140	220	81	215	669	940	1450	8.8
52230	150	215	89	244	768	840	1300	10.4
52232	160	225	90	247	803	810	1250	11.97
52234	170	240	97	269	874	750	1150	13.5
52236	180	250	98	294	986	710	1100	15.9
52238	190	270	109	298	1010	650	1000	24.3
52240	200	280	109	314	1110	620	950	25
52244	220	300	110	342	1310	580	900	26
