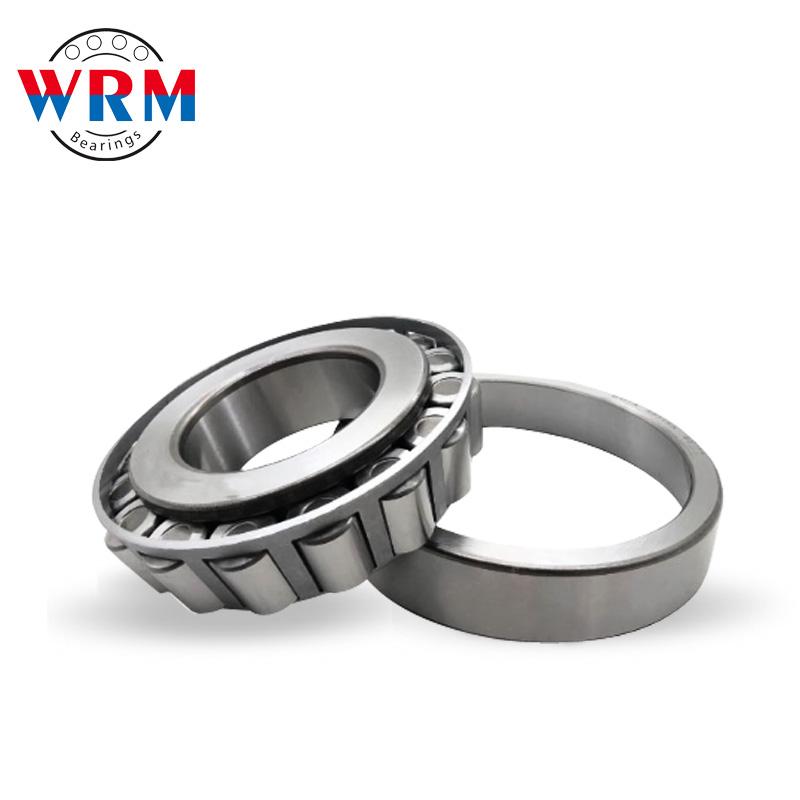

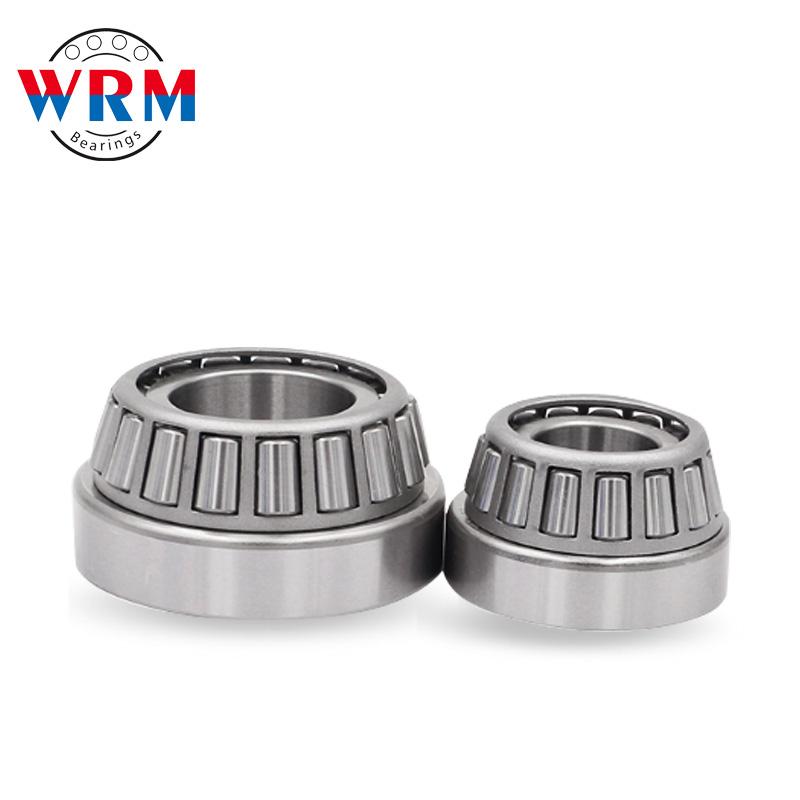

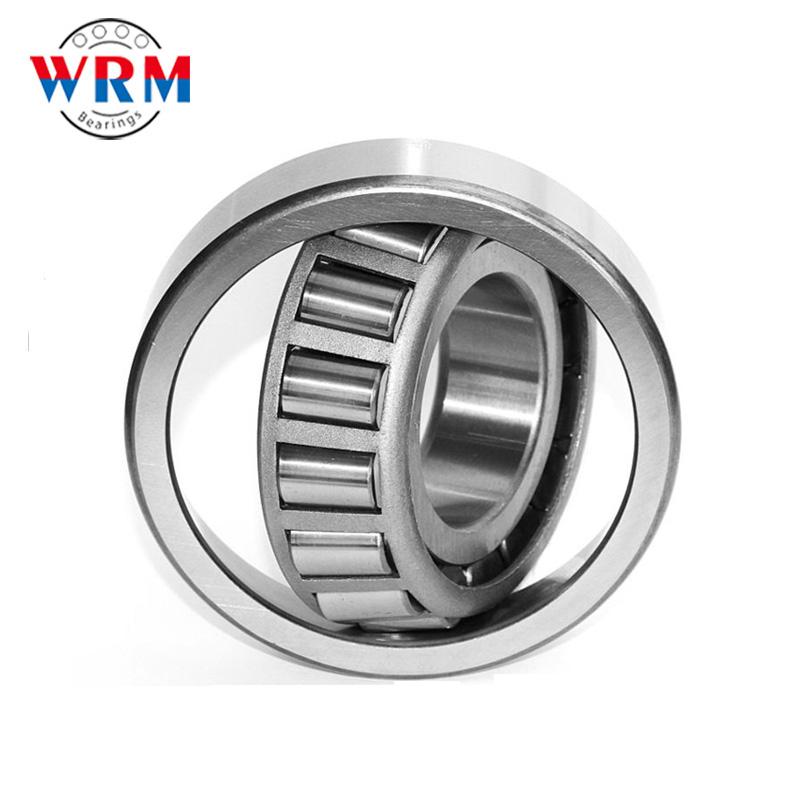

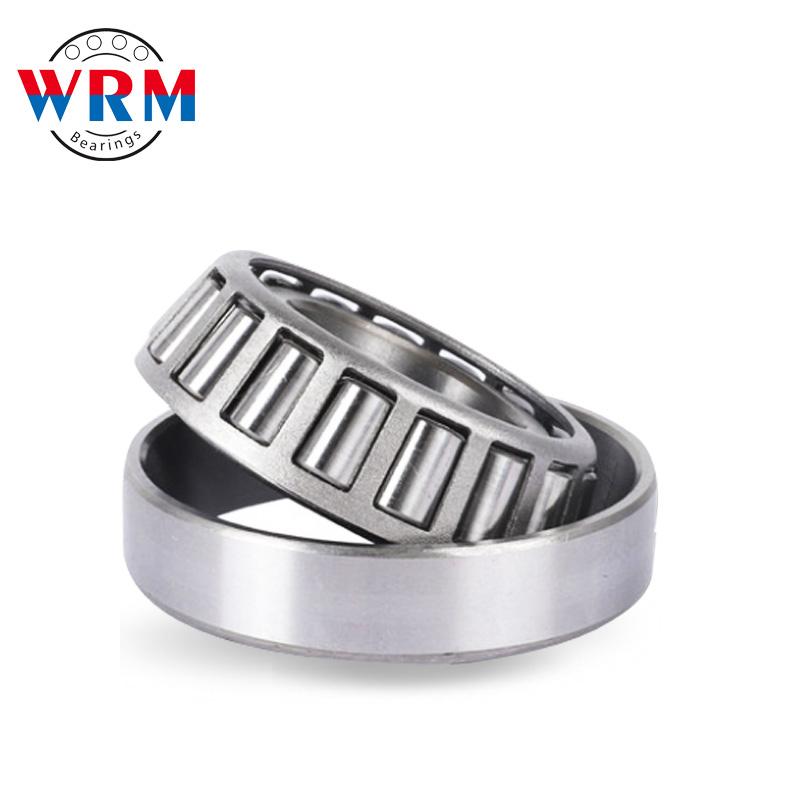

Taper Roller Bearing 32004

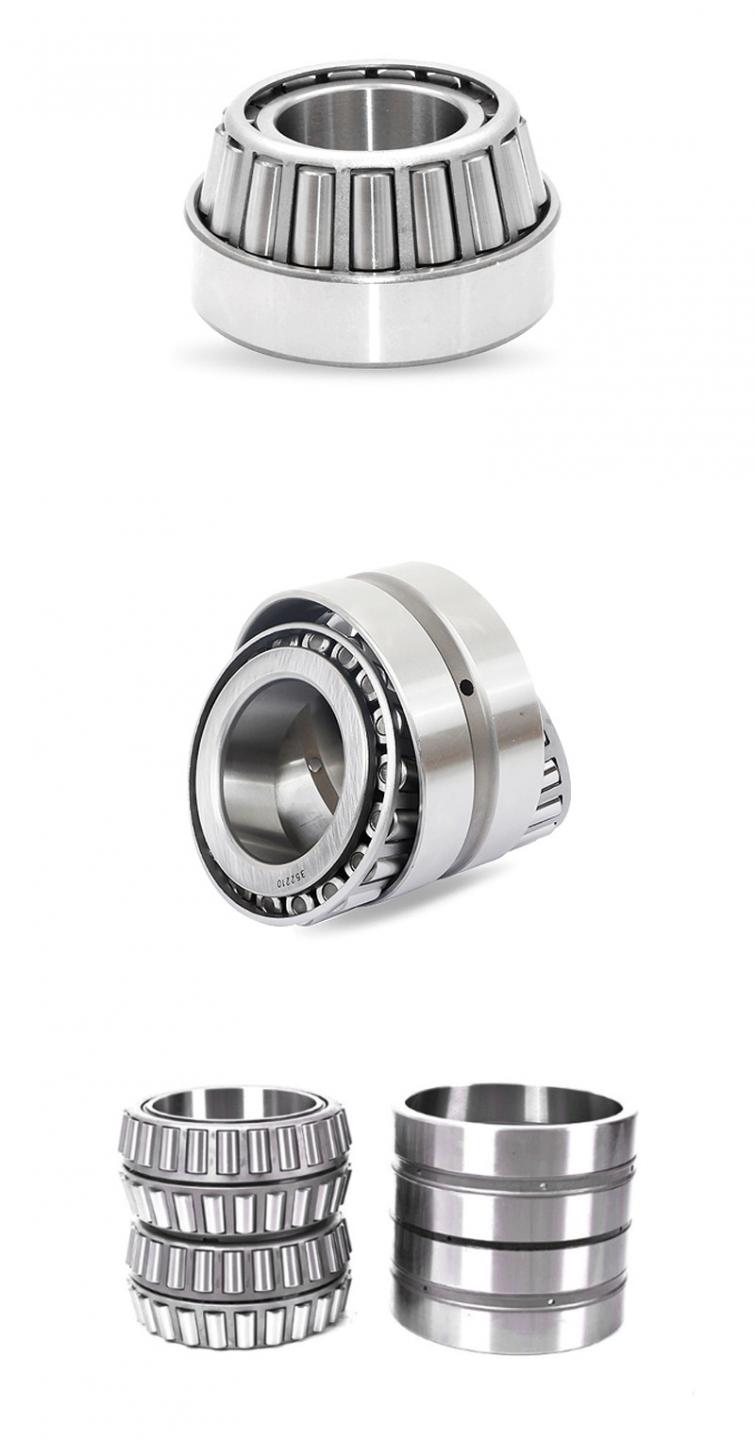

Tapered roller bearings belong to separate type bearings, which are divided into single row, double row and four row tapered roller bearings according to the number of rollers loaded.
Clearance of single row tapered roller bearing shall be adjusted by the user during installation.
The clearance of double-row and four-row tapered roller bearings has been given according to the customer's requirements when the product leaves the factory, and it does not need to be adjusted by the customer.

Description

_02

Product Name	Tapered roller bearing 32004-32236
Material	Chrome Steel
Inside diameter	20-380mm
Outside Diameter	42-560mm
Packing	According to the buyer requests for packaging

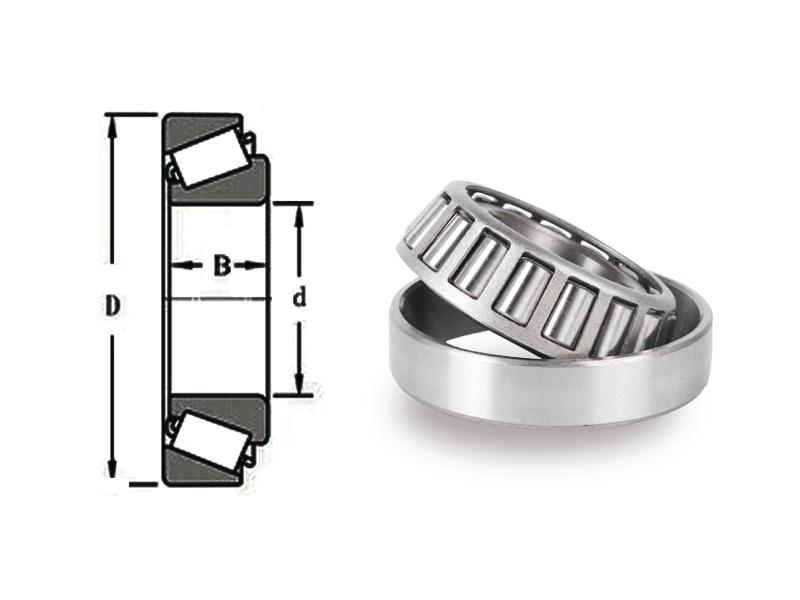

Designation	Old model	Principal Dimension			Basic Load Ratings（KN）		Speed ratings(r/min)		Weight
Designation	Old model	d	D	B	Dynamic	Static	Grease	Oil	kg
32004	2007104E	20	42	15	25	28.2	8500	11000	0.095
32005	2007105E	25	47	15	28	34	7500	9500	0.11
32006	2007106E	30	55	17	35.8	46.8	6300	8000	0.17
32007	2007107E	35	62	18	43.2	59.2	5600	7000	0.224
32008	2007108E	40	68	19	51.8	71	5300	6700	0.267
32009	2007109E	45	75	20	58.5	81.5	5000	6300	0.337
32010	2007110E	50	80	20	61	89	4500	5600	0.366
32011	2007111E	55	90	23	80.2	118	4000	5000	0.551
32012	2007112E	60	95	23	81.8	122	3800	4800	0.584
32013	2007113E	65	100	23	82.8	128	3600	4500	0.62
32014	2007114E	70	110	25	105	160	3400	4300	0.839
32015	2007115E	75	115	25	102	160	3200	4000	0.875
32016	2007116E	80	125	29	140	220	3000	3800	1.27
32017	2007117E	85	130	29	140	220	2800	3600	1.32
32018	2007118E	90	140	32	170	270	2600	3400	1.72
32019	2007119E	95	145	32	170	280	2400	3200	1.84
32020	2007120E	100	150	32	172	282	2200	3000	1.85
32021	2007121E	105	160	35	205	335	2000	2800	2.4
32022	2007122E	110	170	38	245	402	1900	2600	3.02
32024	2007124E	120	180	38	242	405	1700	2200	3.18
32026	2007126E	130	200	45	335	568	1600	2000	4.94
32028	2007128E	140	210	45	330	568	1400	1800	5.15
32030	2007130E	150	225	48	368	635	1300	1700	6.25
32032	2007132E	160	240	51	420	735	1200	1600	7.66
32034	2007134E	170	260	57	520	920	1100	1500	10.4
32036	2007136E	180	280	64	640	1150	1000	1400	14.1
32038	2007138E	190	290	64	652	1180	950	1300	14.6
32040	2007140E	200	310	70	782	1420	900	1200	18.9
32044	2007144E	220	340	76.5	908	1670	800	1000	24.4
32048	2007148E	240	360	76	920	1730	700	900	25.9
32052	2007152E	260	400	87	1120	2170	670	850	38
32056	2007156E	280	420	87	1190	2200	600	750	40.2
32060	2007160E	300	460	100	1120	2000	560	700	57.5
32064	2007164E	320	480	100	1000	1900	530	670	60.6
32068	2007168E	340	520	112	900	1800	500	650	80.4
32072	2007172E	360	540	112	850	1600	480	630	84
32076	2007176E	380	560	112	800	1400	460	610	89.3
