Spherical Roller Bearings 22205CA/W33

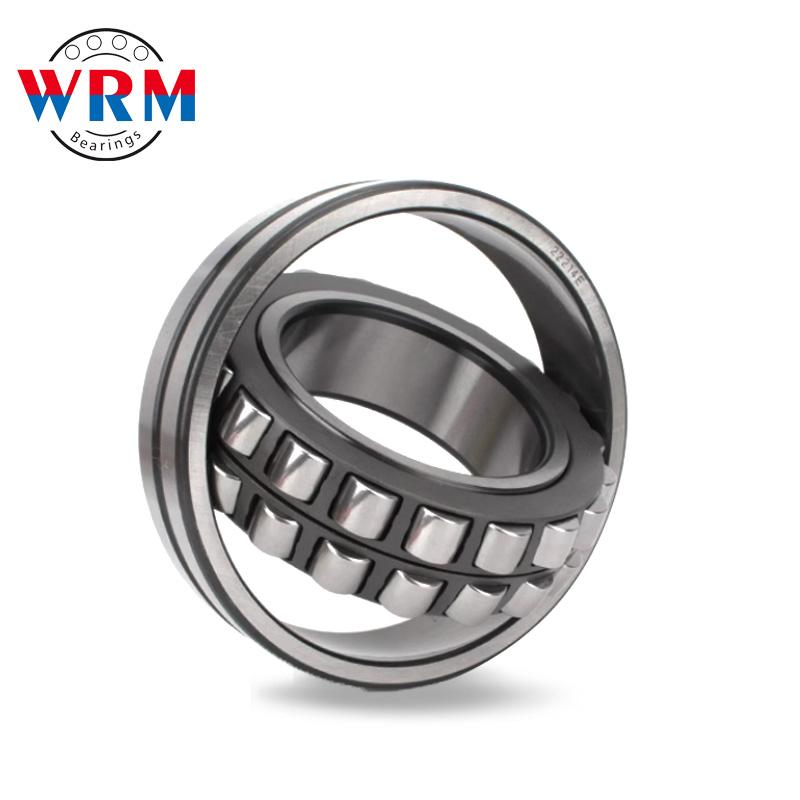

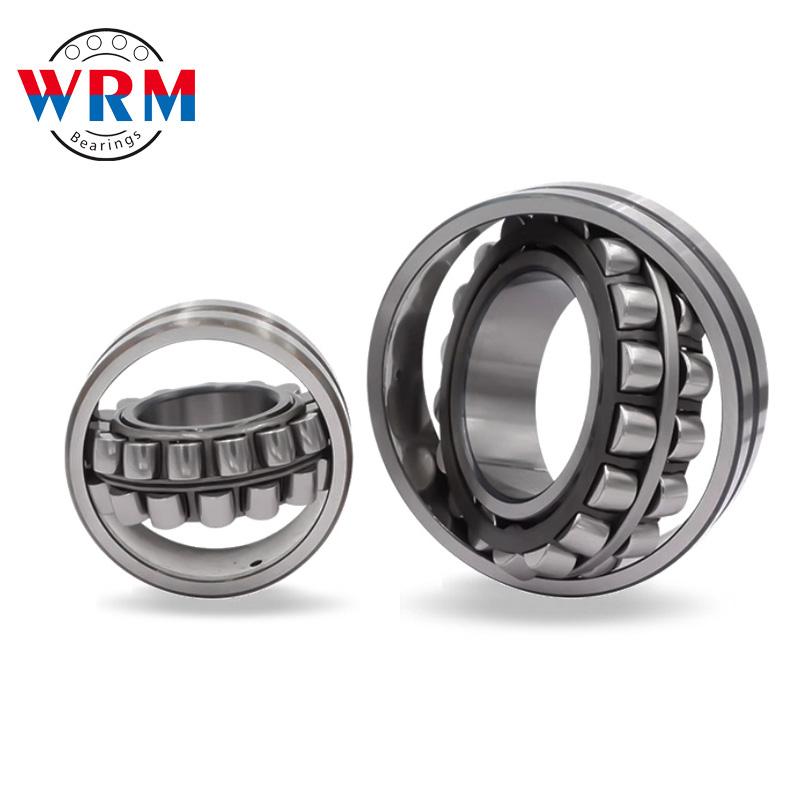

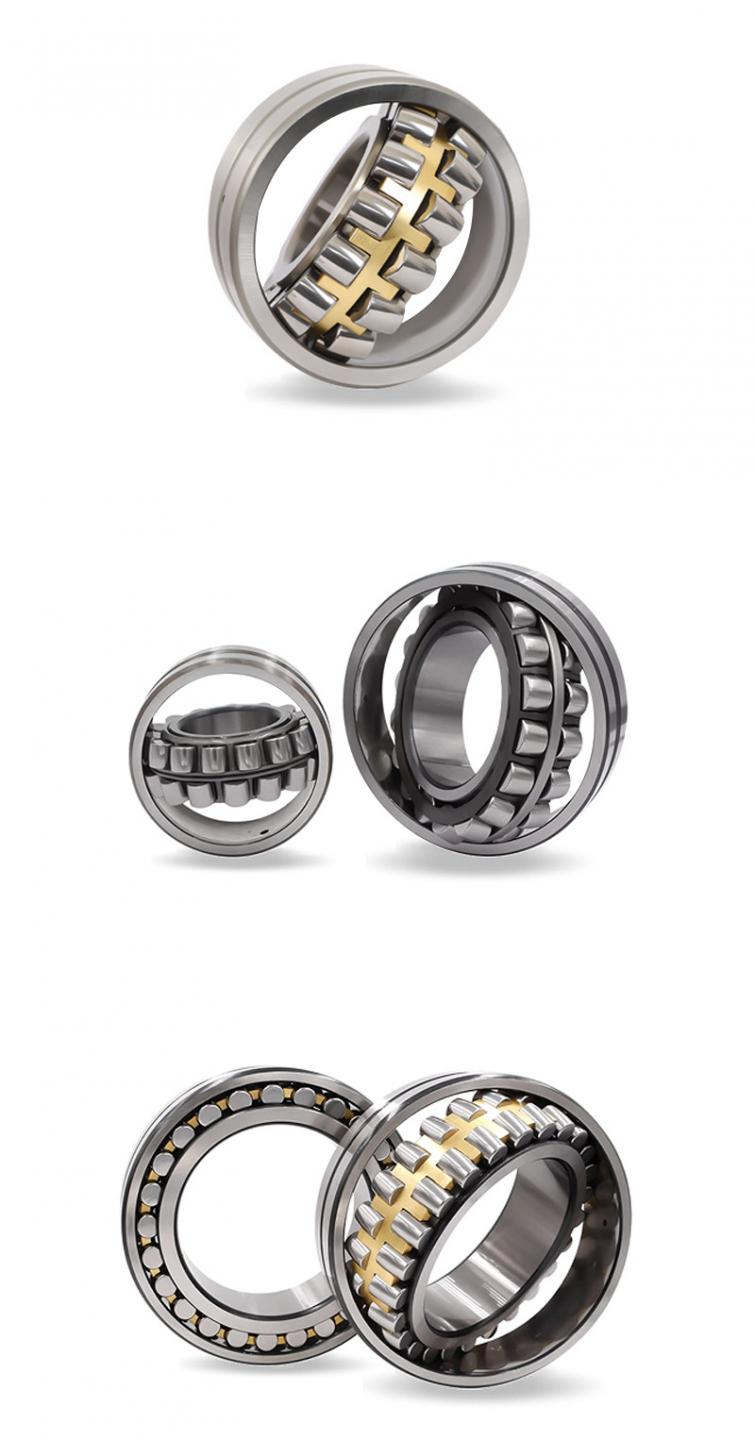

The self-aligning roller bearing has a double row of rollers. The outer ring has a common spherical raceway, and the inner ring has two raceways and is tilted at an Angle relative to the bearing axis.This kind of ingenious construction makes it self-aligning, so it is not easy to be affected by the Angle of the shaft and bearing box on the error or bending of the shaft. It is suitable for the occasion of the error caused by the installation error or deflection of the shaft.The bearing can bear radial load as well as bi-directional axial load.

Spherical Roller Bearings

Description

_02

Product Name	Self-aligning roller bearings 22205CA/W33
Material	Chrome Steel
Inside diameter	25-220mm
Outside Diameter	52-400mm

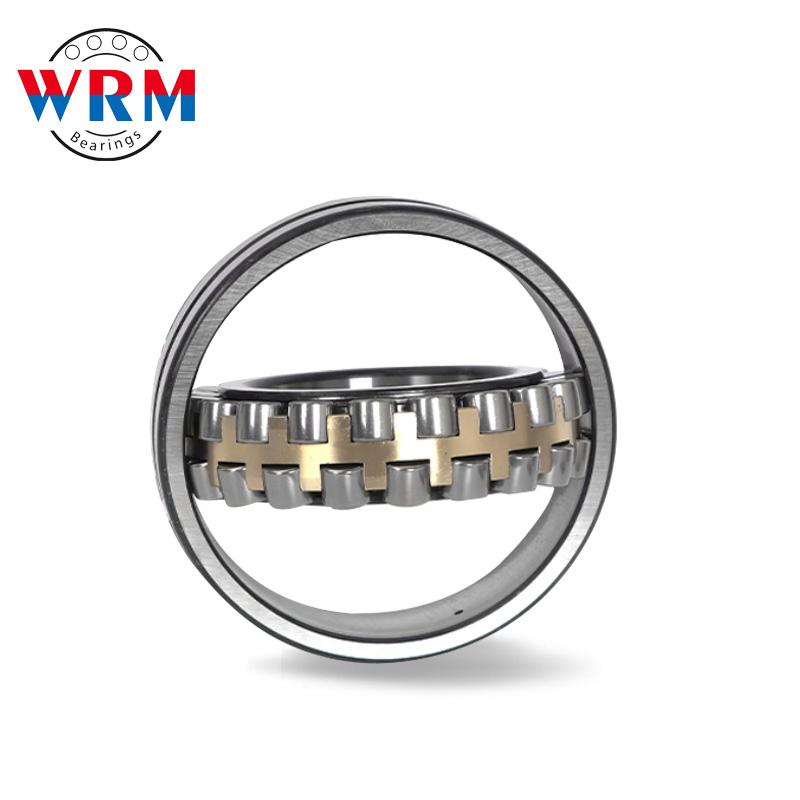

cage	brass,steel

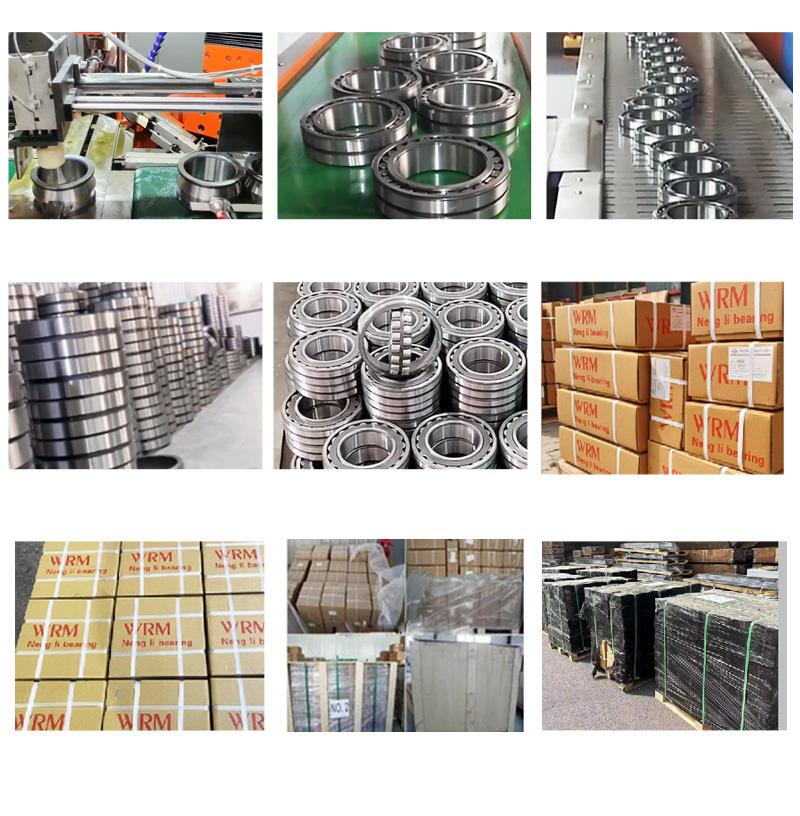

Packing	According to the buyer requests for packaging

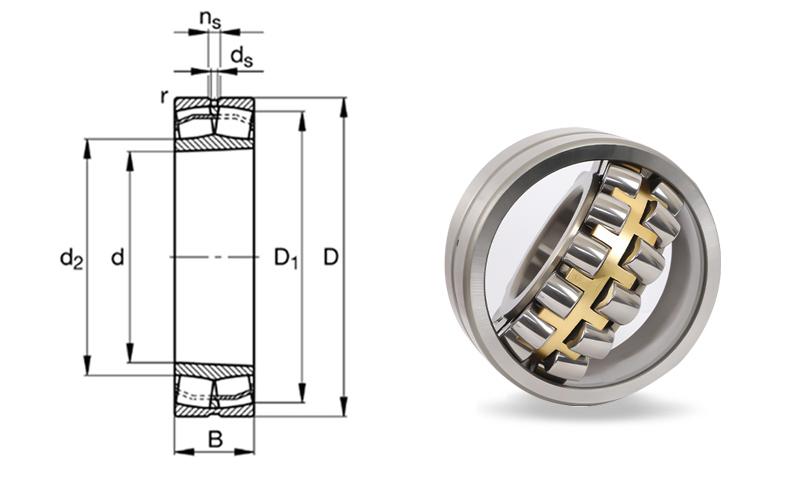

Designation	old model	Principal Dimension			Basic Load Ratings（KN）		Speed ratings(r/min)		Weight
Designation	old model	d	D	B	Dynamic	Static	Grease	Oil	kg
22205	53505	25	52	18	48.5	42.5	14400	9200	0.178
22206	53506	30	62	20	33.5	38	5000	6800	0.28
22207	53507	35	72	23	46	59	4400	5800	0.43
22208	53508	40	80	23	77	88.4	5000	6700	0.55
22209	53509	45	85	23	80	91.2	4700	6400	0.59
22210	53510	50	90	23	83.7	102	4400	6100	0.622
22211	53511	55	100	25	103	126	4000	5600	0.887
22212	53512	60	110	28	123	154	3700	4800	1.22
22213	53513	65	120	31	151	194	3300	4500	1.63
22214	53514	70	125	31	151	196	3100	4200	1.66
22215	53515	75	130	31	162	215	3000	3900	1.75
22216	53516	80	140	33	175	234	2800	3800	2.2
22217	53517	85	150	36	213	282	2700	3700	2.8
22218	53518	90	160	40	249	337	2500	3400	3.54
22219	53519	95	170	43	283	390	2400	3200	4.2
22220	53520	100	180	46	277	425	2200	3100	5.18
22222	53522	110	200	53	345	545	2000	2700	7.43
22224	53524	120	215	58	445	735	1400	1900	10.3
22226	53526	130	230	64	490	805	1400	1800	12.4
22228	53528	140	250	68	560	930	1700	2200	16.2
22230	53530	150	270	73	630	1050	1600	2000	18.7
22232	53532	160	290	80	750	1300	1500	1900	24.6
22234	53534	170	310	86	845	1450	1300	1700	26.8
22236	53536	180	320	86	895	1550	1300	1700	29.4
22238	53538	190	340	92	865	1620	1200	1600	37.4
22240	53540	200	360	98	1100	1950	1100	1500	44.7
22244	53542	220	400	108	1350	2400	950	1300	63.5
22248	53544	240	440	120	1200	2200	900	1200	78.73
22252	53546	260	480	130	1100	2000	850	1070	103.2
22256	53548	280	500	130	1000	1800	750	990	108.5
22260	53550	300	540	140	900	1600	700	900	138.3
22264	53552	320	580	150	850	1500	650	850	170.5
22268	53554	340	620	165	800	1300	600	770	221
22272	53556	360	650	170	700	1100	550	710	246.5
22276	53558	380	680	175	600	900	500	650	299
22280	53560	400	720	185	450	800	450	600	336
