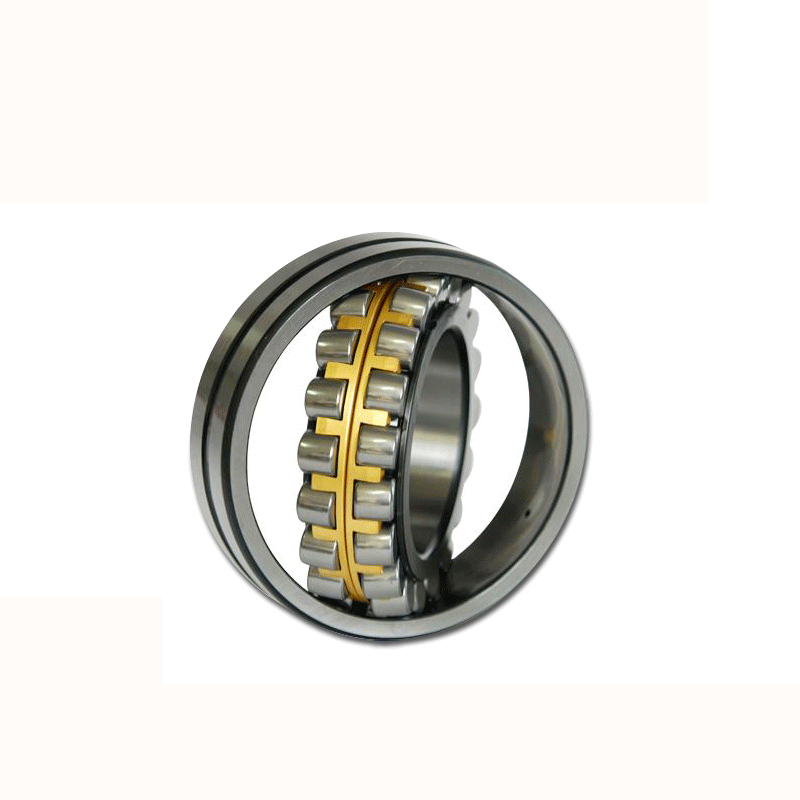

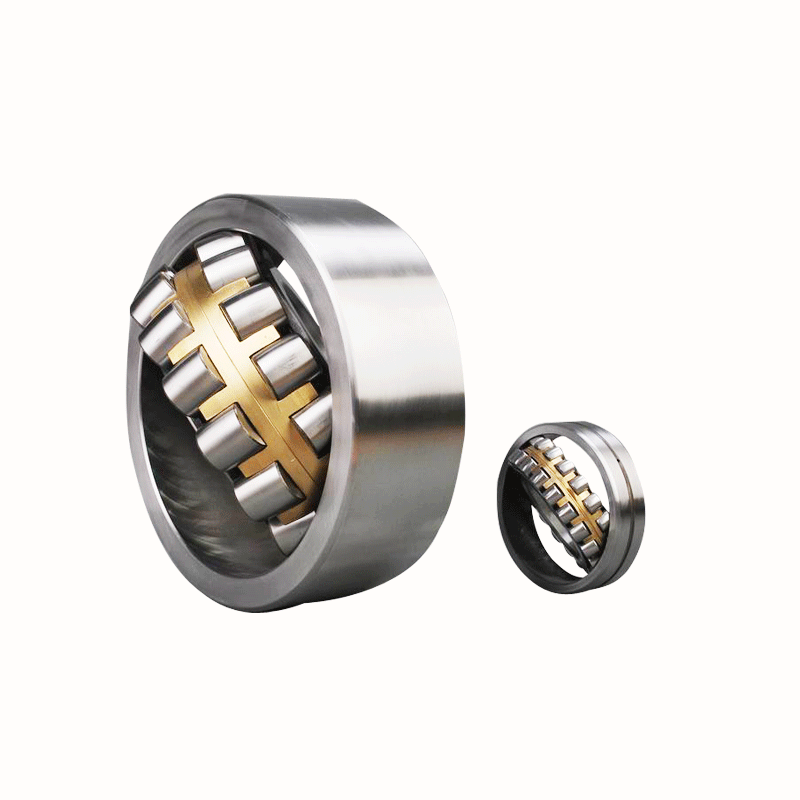

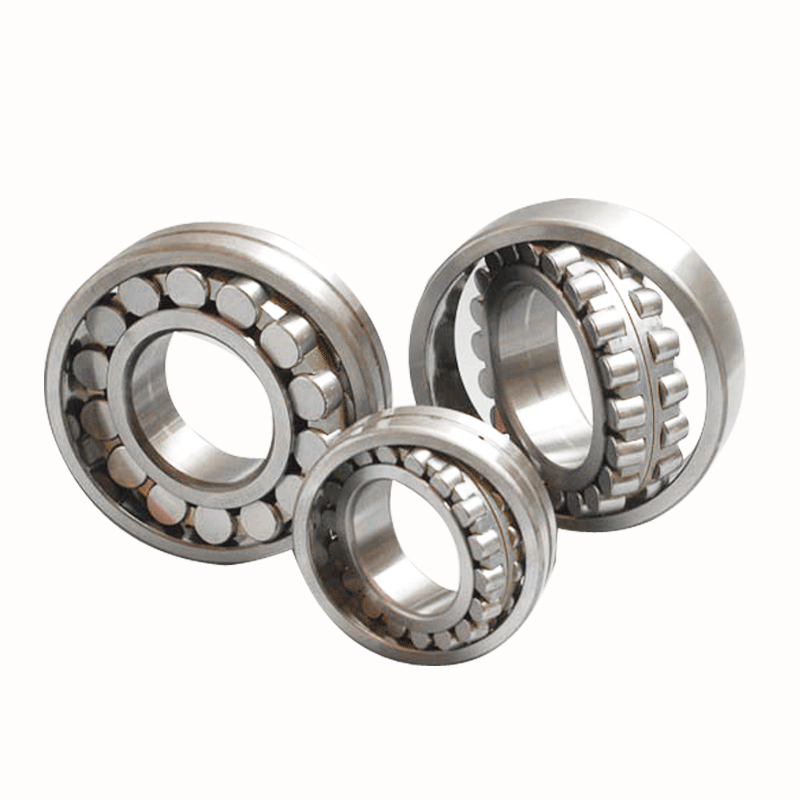

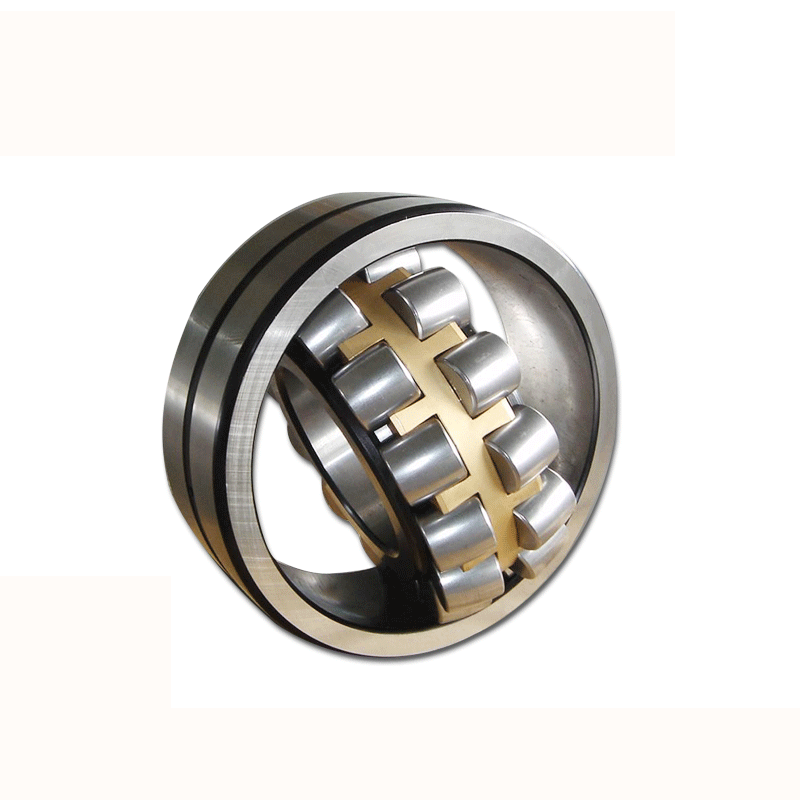

Spherical Roller Bearing 23020CA/W33

The self-aligning roller bearing has a double row of rollers. The outer ring has a common spherical raceway, and the inner ring has two raceways and is tilted at an Angle relative to the bearing axis.

This kind of ingenious construction makes it self-aligning, so it is not easy to be affected by the Angle of the shaft and bearing box on the error or bending of the shaft. It is suitable for the occasion of the error caused by the installation error or deflection of the shaft.

The bearing can bear radial load as well as bi-directional axial load.

Description

Product Name	Spherical Roller Bearing 23020CA/W33
Material	Chrome Steel
Inside diameter	100-200mm
Outside Diameter	150-360mm
cage	brass,steel
Packing	According to the buyer requests for packaging

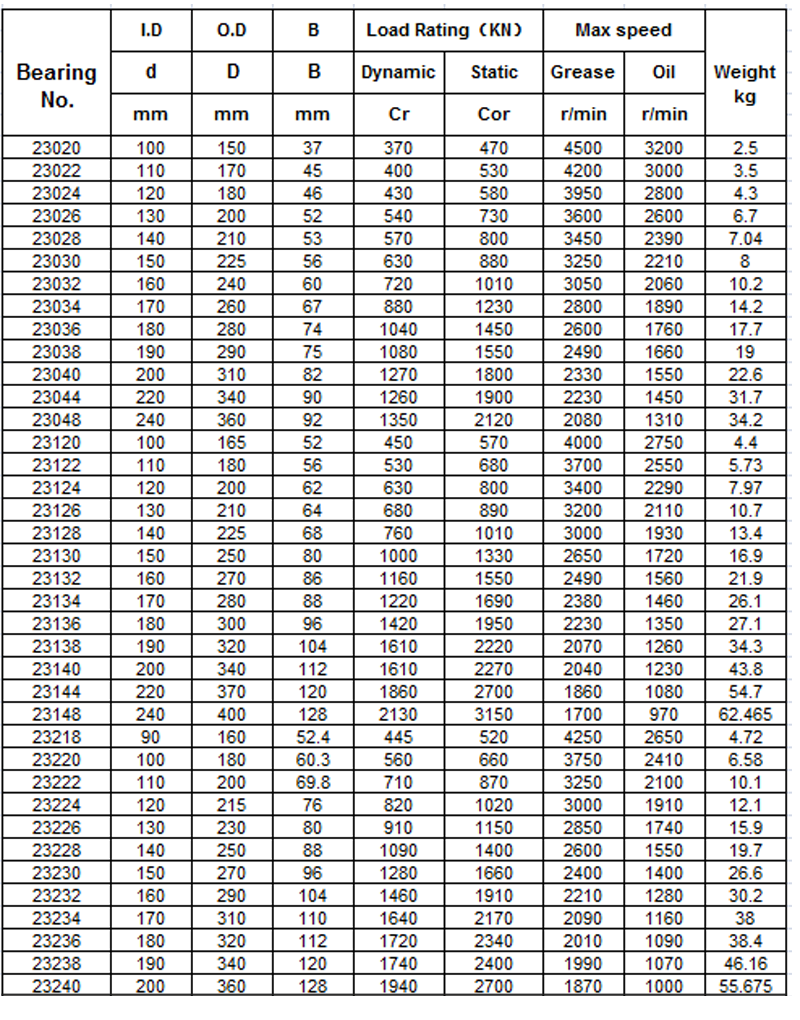

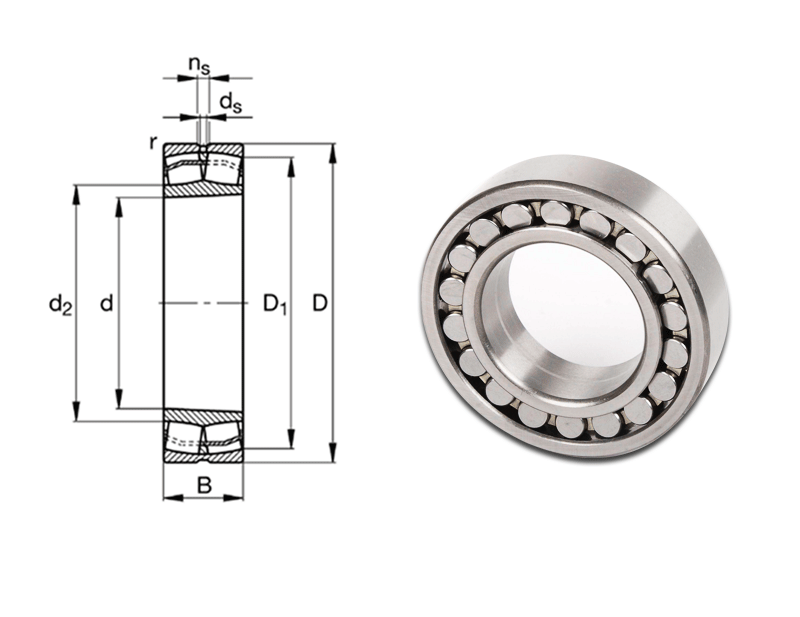

Designation	Principal Dimension			Basic Load Ratings（KN）		Speed ratings(r/min)		Weight
Designation	d	D	B	Dynamic	Static	Grease	Oil	kg
23020	100	150	37	370	470	4500	3200	2.5
23022	110	170	45	400	530	4200	3000	3.5
23024	120	180	46	430	580	3950	2800	4.3
23026	130	200	52	540	730	3600	2600	6.7
23028	140	210	53	570	800	3450	2390	7.04
23030	150	225	56	630	880	3250	2210	8
23032	160	240	60	720	1010	3050	2060	10.2
23034	170	260	67	880	1230	2800	1890	14.2
23036	180	280	74	1040	1450	2600	1760	17.7
23038	190	290	75	1080	1550	2490	1660	19
23040	200	310	82	1270	1800	2330	1550	22.6
23044	220	340	90	1260	1900	2230	1450	31.7
23048	240	360	92	1350	2120	2080	1310	34.2
23120	100	165	52	450	570	4000	2750	4.4
23122	110	180	56	530	680	3700	2550	5.73
23124	120	200	62	630	800	3400	2290	7.97
23126	130	210	64	680	890	3200	2110	10.7
23128	140	225	68	760	1010	3000	1930	13.4
23130	150	250	80	1000	1330	2650	1720	16.9
23132	160	270	86	1160	1550	2490	1560	21.9
23134	170	280	88	1220	1690	2380	1460	26.1
23136	180	300	96	1420	1950	2230	1350	27.1
23138	190	320	104	1610	2220	2070	1260	34.3
23140	200	340	112	1610	2270	2040	1230	43.8
23144	220	370	120	1860	2700	1860	1080	54.7
23148	240	400	128	2130	3150	1700	970	62.5
23218	90	160	52.4	445	520	4250	2650	4.72
23220	100	180	60.3	560	660	3750	2410	6.58
23222	110	200	69.8	710	870	3250	2100	10.1
23224	120	215	76	820	1020	3000	1910	12.1
23226	130	230	80	910	1150	2850	1740	15.9
23228	140	250	88	1090	1400	2600	1550	19.7
23230	150	270	96	1280	1660	2400	1400	26.6
23232	160	290	104	1460	1910	2210	1280	30.2
23234	170	310	110	1640	2170	2090	1160	38
23236	180	320	112	1720	2340	2010	1090	38.4
23238	190	340	120	1740	2400	1990	1070	46.16
23240	200	360	128	1940	2700	1870	1000	55.7
