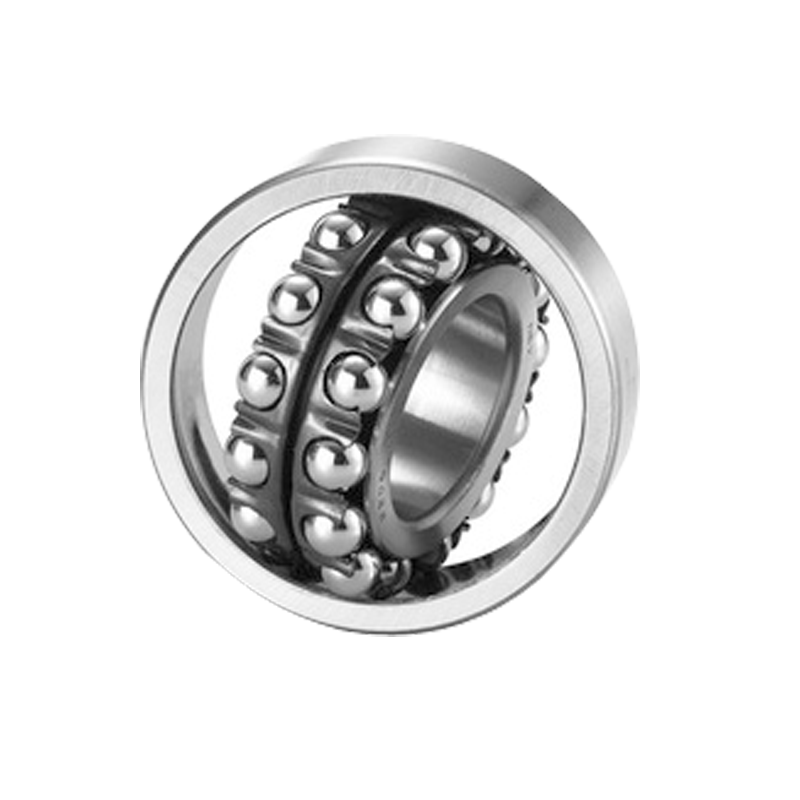

Self-aligning Ball Bearing 2200

The self-aligning ball bearing has two kinds of structure: cylindrical hole and tapered hole. The retainer is made of steel plate and synthetic resin.Its characteristic is that the outer ring raceway is spherical shape, with automatic centrality, can compensate the error caused by different concentricity and axial deflection, but the relative inclination of the inner and outer rings should not exceed 3 degrees.

Self-aligning Ball Bearings

Description

Product Name	Self-aligning roller bearings 2200
Material	Chrome Steel
Inside diameter	10-120mm
Outside Diameter	30-215mm
Packing	According to the buyer requests for packaging

Designation	Principal Dimension			Basic Load Ratings		Speed ratings (r/min)		Weight（kg）
Designation	d	D	B	Dynamic	Static	Grease	Oil	Weight（kg）
2200	10	30	14	7.3	1.59	19000	23000	0.047
2201	12	32	14	7.6	1.73	17000	20000	0.051
2202	15	35	14	7.7	1.85	15000	18000	0.06
2203	17	40	16	9.8	2.41	13000	16000	0.088
2204	20	47	18	12.6	3.3	12000	14000	0.14
2205	25	52	18	12.3	3.45	10000	12000	0.157
2206	30	62	20	15.2	4.5	8600	10000	0.256
2207	35	72	23	21.5	6.6	7500	8800	0.392
2208	40	80	23	22.3	7.35	6700	7900	0.493
2209	45	85	23	23.2	8.15	6000	7100	0.54
2210	50	90	23	23.2	8.45	5500	6400	0.583
2211	55	100	25	26.5	9.9	5000	5800	0.787
2212	60	110	28	34	12.6	4600	5400	1.08
2213	65	120	31	43.5	16.4	4200	5000	1.44
2214	70	125	31	44	17.1	3900	4600	1.52
2215	75	130	31	44.5	17.8	3700	4300	1.58
2216	80	140	33	48.5	19.9	3400	4000	1.99
2217	85	150	36	58	23.6	3200	3800	2.54
2218	90	160	40	70	28.7	3100	3600	3.19
2219	95	170	43	83.5	34.5	2900	3400	3.89
2220	100	180	46	94	38.5	2700	3200	4.65
2222	110	200	53	124	51.5	2500	2900	7.1
2224	120	215	69	145	75.6	2200	2500	9.15
