Description

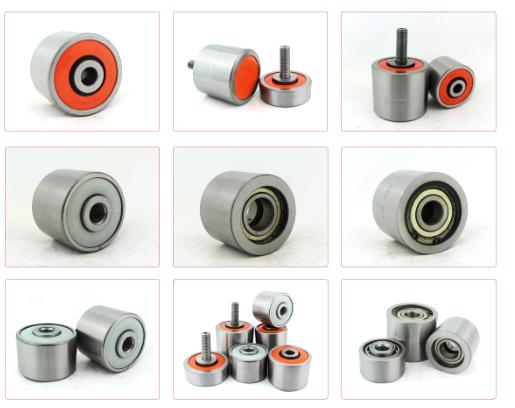

| Product Name | Rotary device series 39/9Z |
| Material | Chrome Steel |
| Inside diameter | 8-16mm |
| Outside Diameter | 35-83mm |
| Packing | According to the buyer requests for packaging |
| Designation | Principal Dimension | Basic Load Ratings（KN） | Weight/KG | |||
| d | D | B | C | |||
| 39/9Z | 8 | 35 | 9 | 8 | 1.98 | 0.048 |
| 37/11Z | 10 | 37 | 11 | 10 | 2.25 | 0.086 |
| 38/11Z | 10 | 38 | 11 | 10 | 2.64 | 0.095 |
| 40/12Z | 11 | 40 | 12 | 12 | 2.85 | 0.112 |
| 44/8D | 8 | 44 | 24 | 12 | 3.25 | 0.125 |
| 47/10D | 10 | 47 | 26 | 13 | 3.55 | 0.15 |
| 45/31Z | 14 | 45 | 31 | 14 | 3.35 | 0.15 |
| 55/12Z/8 | 8 | 55 | 12 | 11 | 3.92 | 0.18 |
| 55/12Z/10 | 10 | 55 | 12 | 11 | 3.92 | 0.19 |
| 52/8D | 8 | 52 | 34 | 20 | 3.64 | 0.27 |
| 57/9Z | 9 | 57 | 12.5 | 11 | 4.05 | 0.2 |
| 57/12Z | 12 | 57 | 12.5 | 11 | 4.15 | 0.19 |
| 60/12D | 12 | 60 | 26 | 14 | 4.78 | 0.285 |
| 66/12Z | 12 | 66 | 14.5 | 12 | 5.86 | 0.278 |
| 66/12D | 12 | 66 | 26 | 14 | 5.86 | 0.34 |
| 67/162 | 16 | 67 | 21 | 19 | 6.55 | 0.32 |
| 68/14D | 14 | 68 | 28 | 16 | 7.24 | 0.7 |
| 82/16Z | 16 | 82 | 16 | 14 | 8.05 | 0.48 |
| 83/16Z | 16 | 83 | 16 | 14 | 8.25 | 0.5 |
