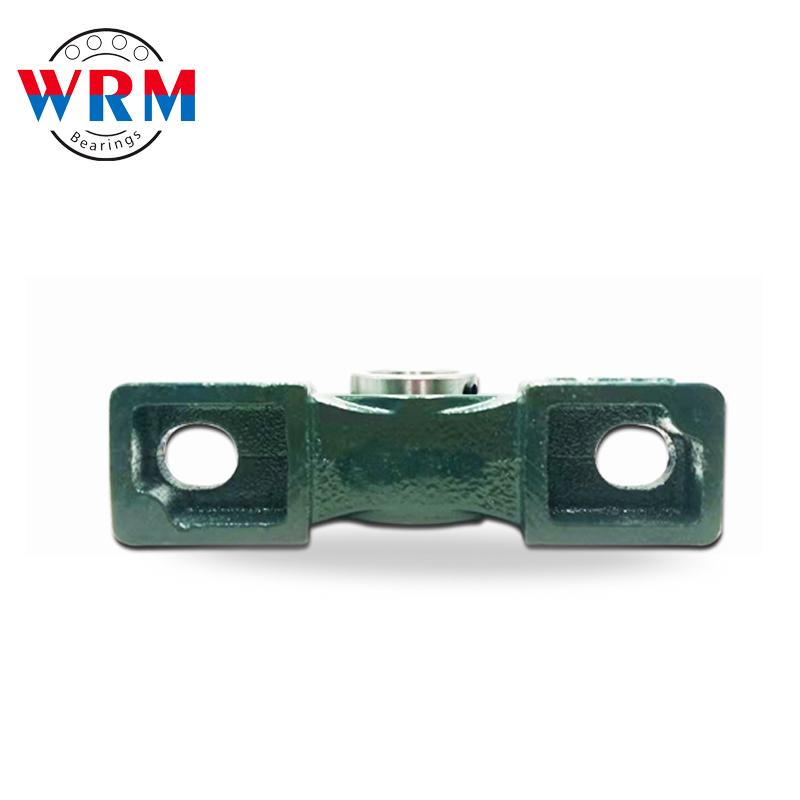

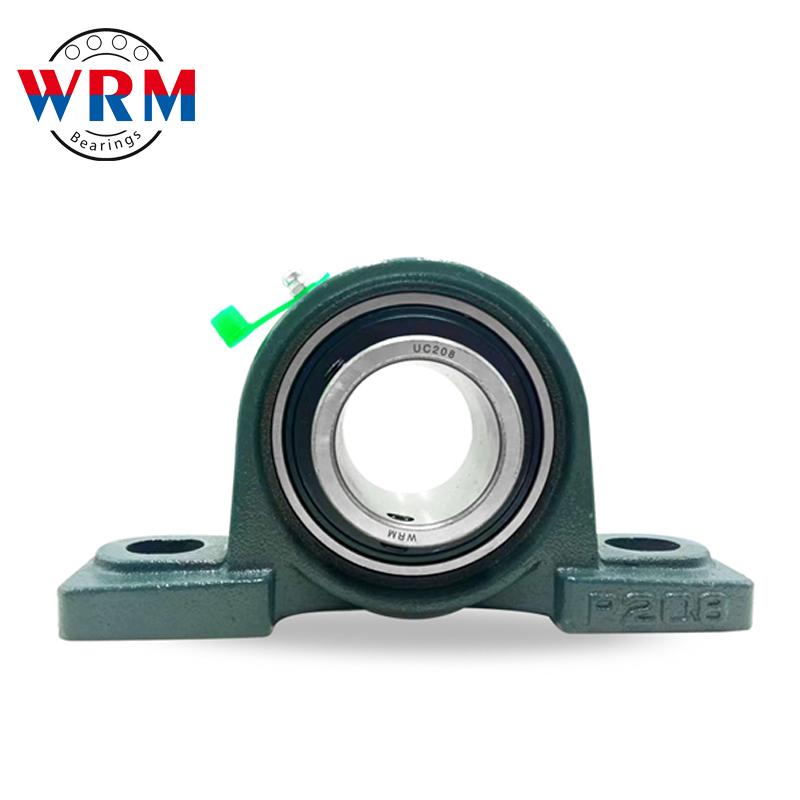

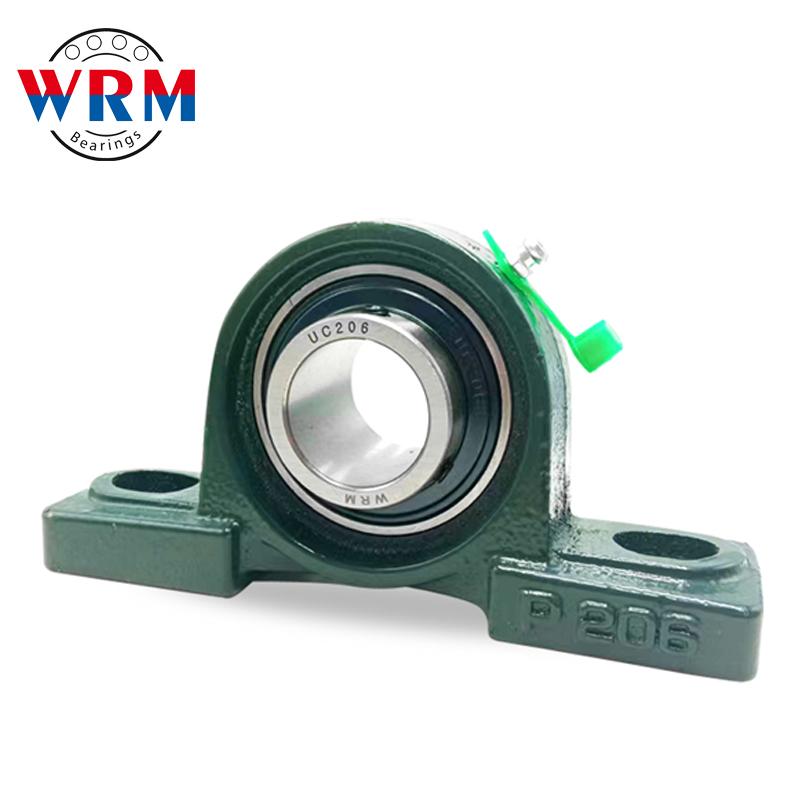

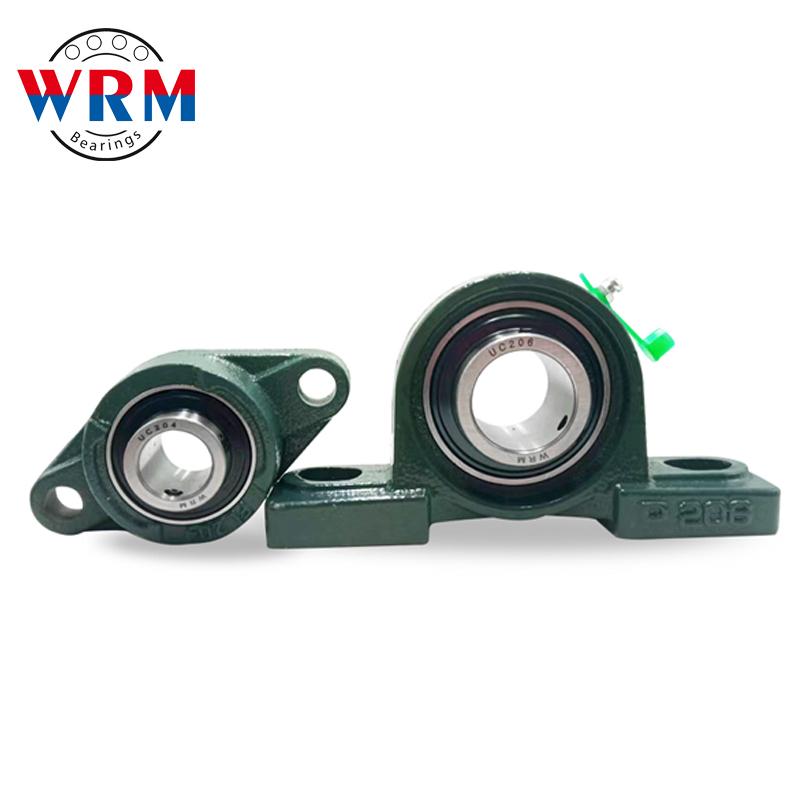

Pillow Block bearings UCP201

Insert bearing with housing has various forms of structure, good versatility and interchangeability.
At the same time, the bearings are also designed to have a certain degree of tuning, easy to install, with a double structure sealing device, can work in harsh environments.
The bearing seat is generally cast.

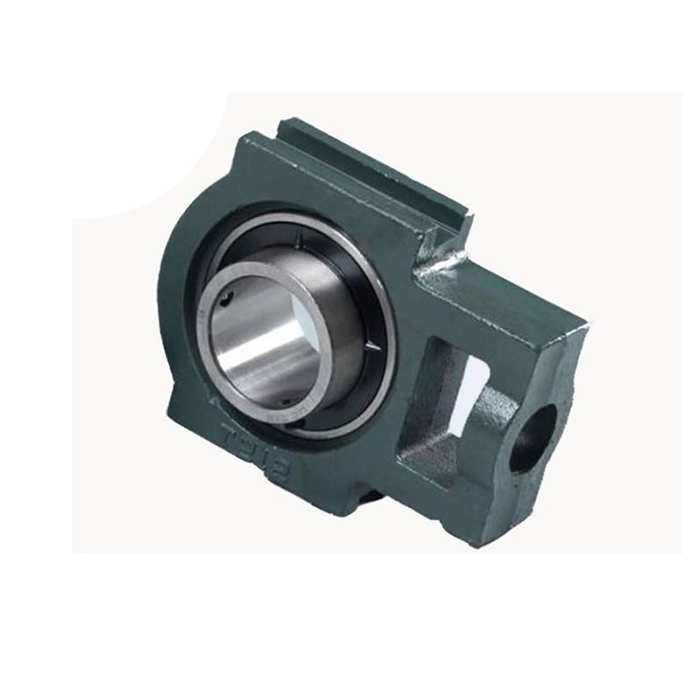

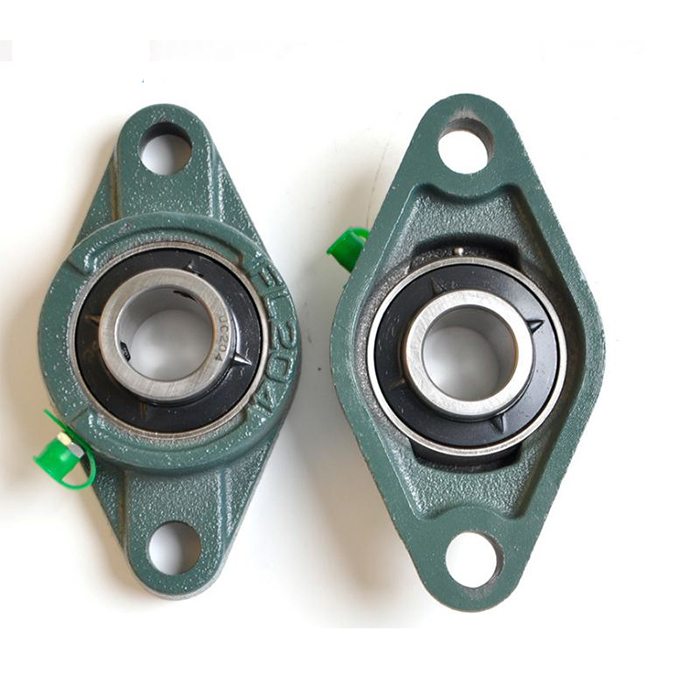

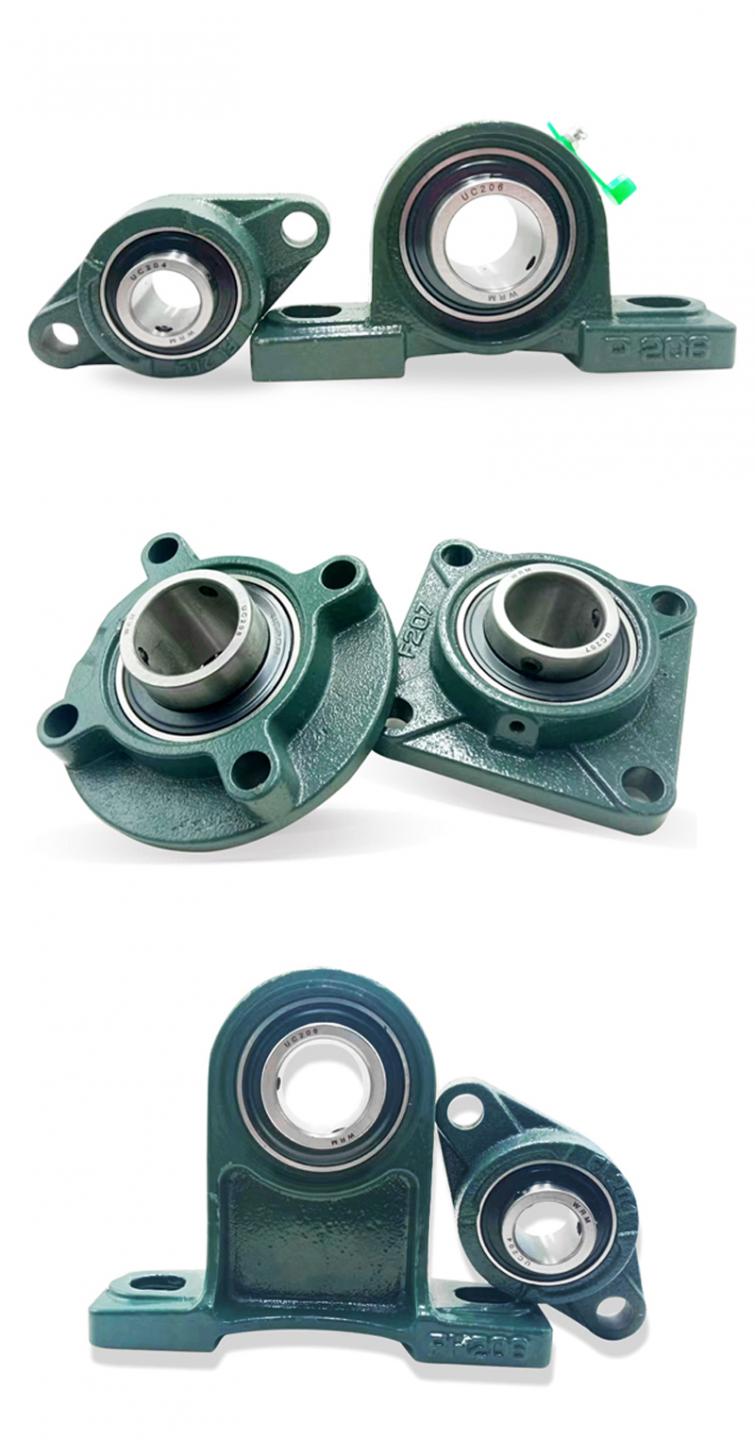

Common seats are vertical seat (P), square seat (F), boss square seat (FS), boss circular seat (FC), diamond seat (FL), ring seat (C), slider seat (T), etc.

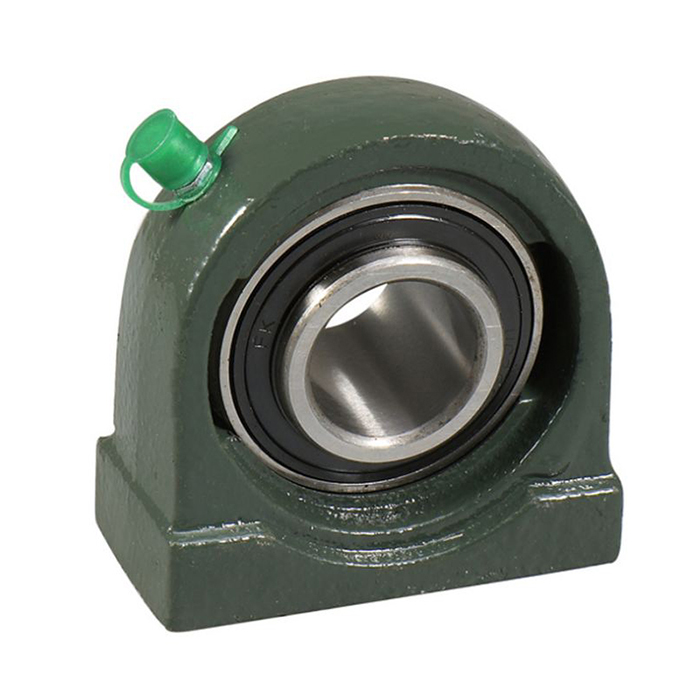

Pillow Block bearings

Description

Product Name	Pillow Block Bearing UCP201
Material	Bearing steel、Cast Steel、Stainless steel
Inside diameter	25-90mm
Outside Diameter	62-190mm
Packing	According to the buyer requests for packaging

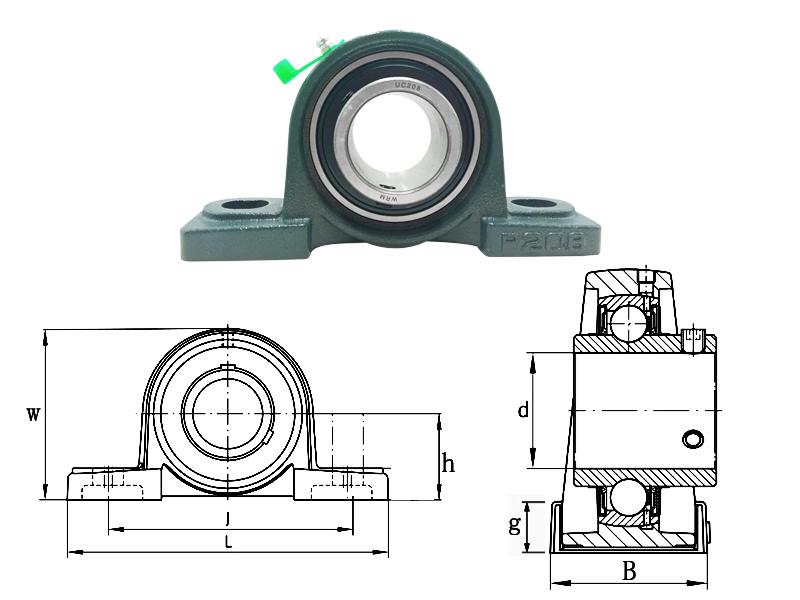

Model	Size（mm）										Weight（kg)
Model	d	H	J	L	B	H1	H2	A	N	N1	Weight（kg)
UCP201	12	30.2	95	127	31	14	62	38	13	19	0.7
UCP202	15	30.2	95	127	31	14	62	38	13	19	0.7
UCP203	17	30.2	95	127	31	14	62	38	13	19	0.7
UCP204	20	33.3	95	127	31	14	65	38	13	19	0.7
UCP205	25	36.5	105	140	34.1	15	71	38	13	19	0.8
UCP206	30	42.9	121	165	38.1	17	84	48	17	23	1.3
UCP207	35	47.6	127	167	42.9	18	93	48	17	23	1.6
UCP208	40	49.2	137	184	49.2	18	100	54	17	23	1.9
UCP209	45	54	146	190	49.2	20	106	54	17	23	2.2
UCP210	50	57.2	159	206	51.6	21	113	60	20	26	2.3
UCP211	55	63.5	171	219	55	23	125	60	20	26	3.3
UCP212	60	69.8	184	241	65.1	25	138	70	20	26	4.6
UCP213	65	76.2	203	265	65.1	27	150	70	25	31	5.9
UCP214	70	79.4	210	266	74.6	27	156	72	25	31	6.6
UCP215	75	82.6	217	275	77.8	28	162	74	25	31	7.4
UCP216	80	88.9	232	292	82.6	30	174	78	25	31	9
UCP217	85	95.2	247	310	85.7	32	185	83	25	31	11
UCP218	90	101.6	262	327	96	33	198	88	27	33	13
