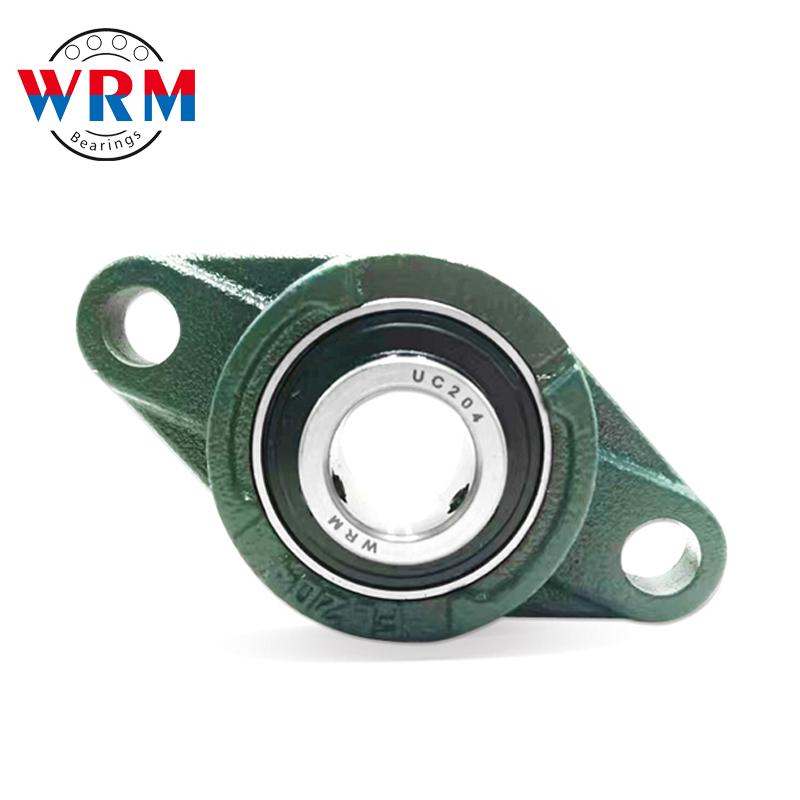

Pillow Block bearings UCFL305

Insert bearing with housing has various forms of structure, good versatility and interchangeability.
At the same time, the bearings are also designed to have a certain degree of tuning, easy to install, with a double structure sealing device, can work in harsh environments.
The bearing seat is generally cast.

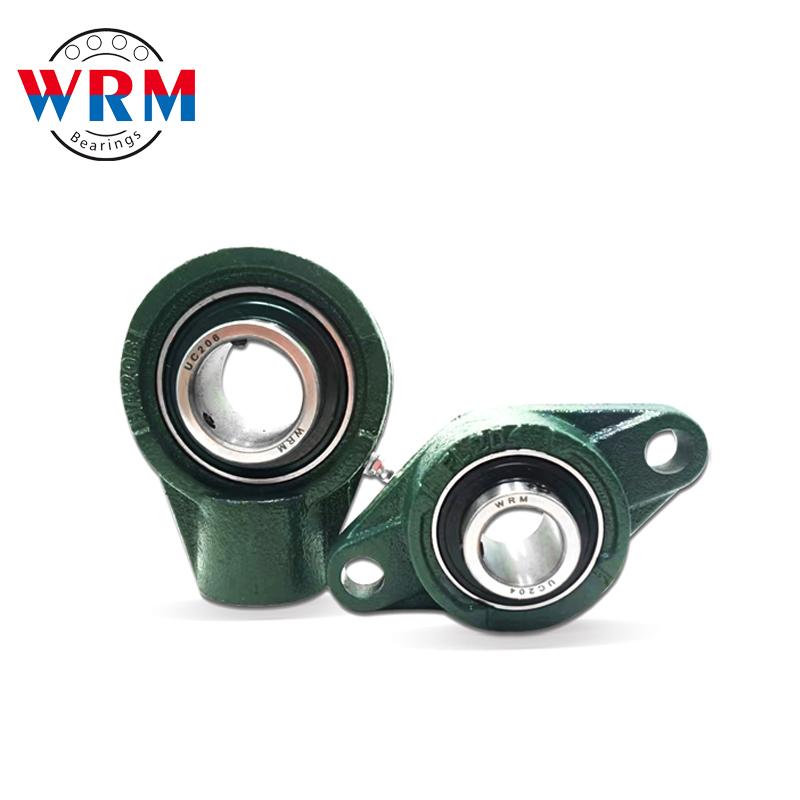

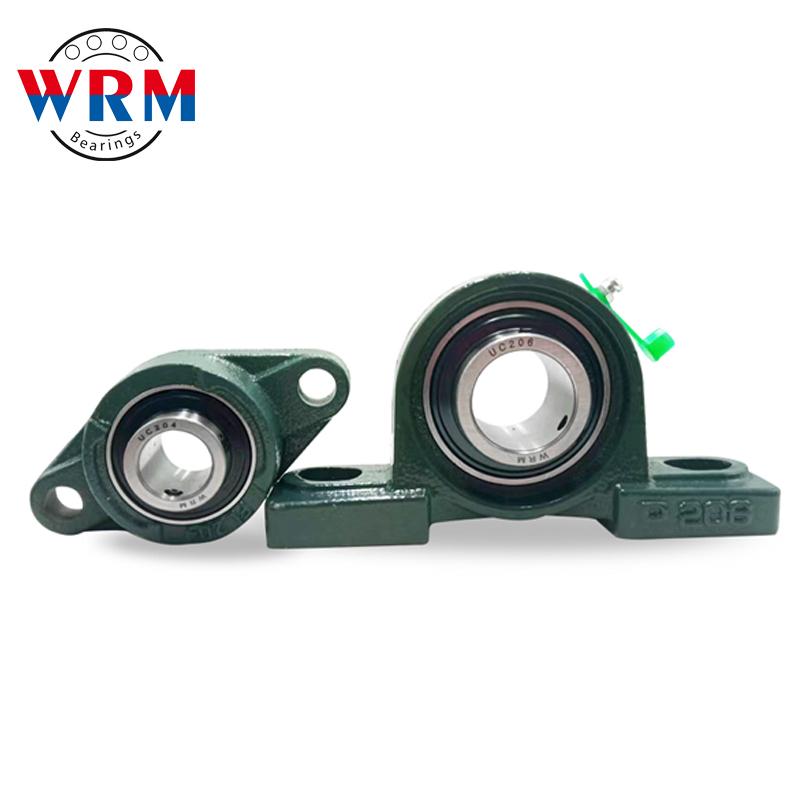

Common seats are vertical seat (P), square seat (F), boss square seat (FS), boss circular seat (FC), diamond seat (FL), ring seat (C), slider seat (T), etc.

Pillow Block bearings

Description

Product Name	Pillow Block Bearing UCFL305
Material	Bearing steel、Cast Steel、Stainless steel
Inside diameter	25-100mm
Outside Diameter	80-270mm
Packing	According to the buyer requests for packaging

Model	Principal Dimension(mm)						Bolt	Weight（kg)
Model	d	L	H	U	J	N	Bolt	Weight（kg)
UCFL305	25	80	150	38	113	19	M16	1.1
UCFL306	30	90	180	43	134	23	M20	1.6
UCFL307	35	100	185	48	141	23	M20	2
UCFL308	40	112	200	52	158	23	M20	2.6
UCFL309	45	125	230	57	177	25	M22	3.63
UCFL310	50	140	240	61	187	25	M22	4.6
UCFL311	55	150	250	66	198	25	M22	5.3
UCFL312	60	160	270	71	212	31	M27	6.4
UCFL313	65	175	295	75	240	31	M27	8.2
UCFL314	70	185	315	78	250	35	M30	10
UCFL315	75	195	320	82	260	35	M30	11
UCFL316	80	210	355	86	285	38	M33	14.3
UCFL317	85	220	370	96	300	38	M33	16.2
UCFL318	90	235	385	96	315	38	M33	19.2
UCFL319	95	250	405	103	330	41	M36	21.8
UCFL320	100	270	440	108	360	4	M39	26.5
