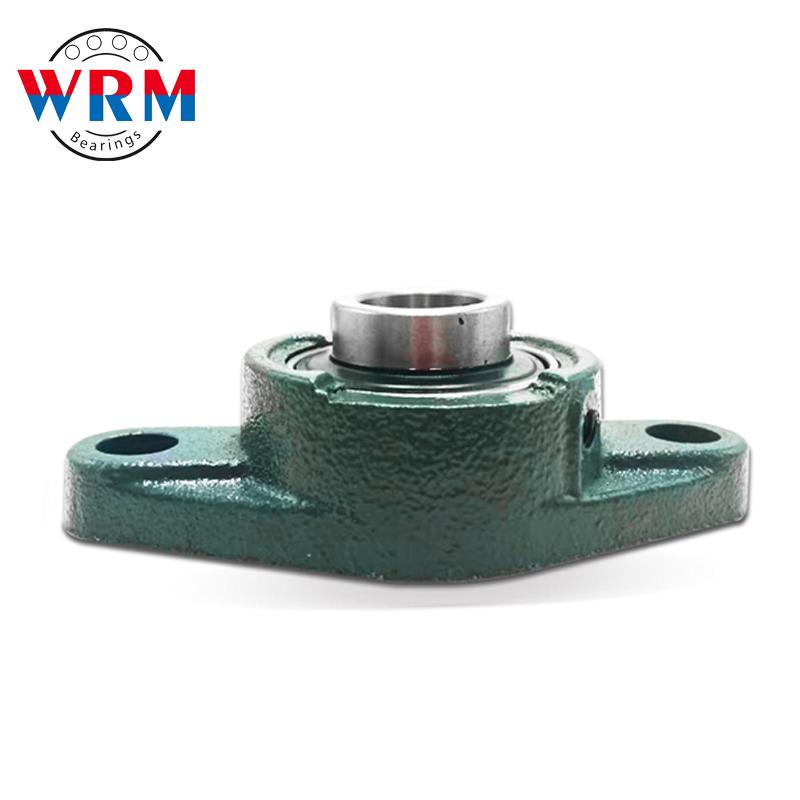

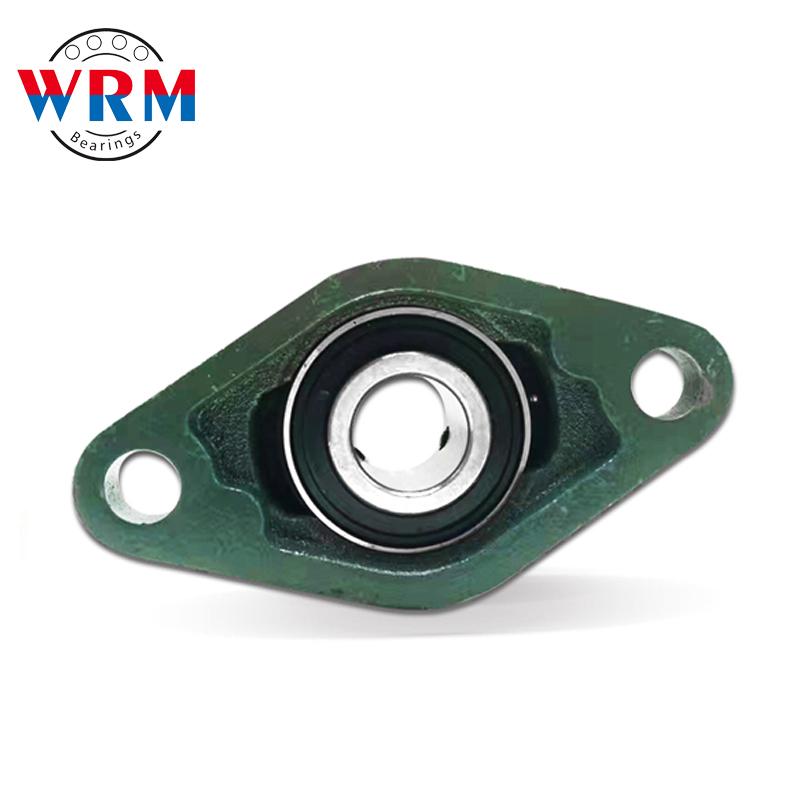

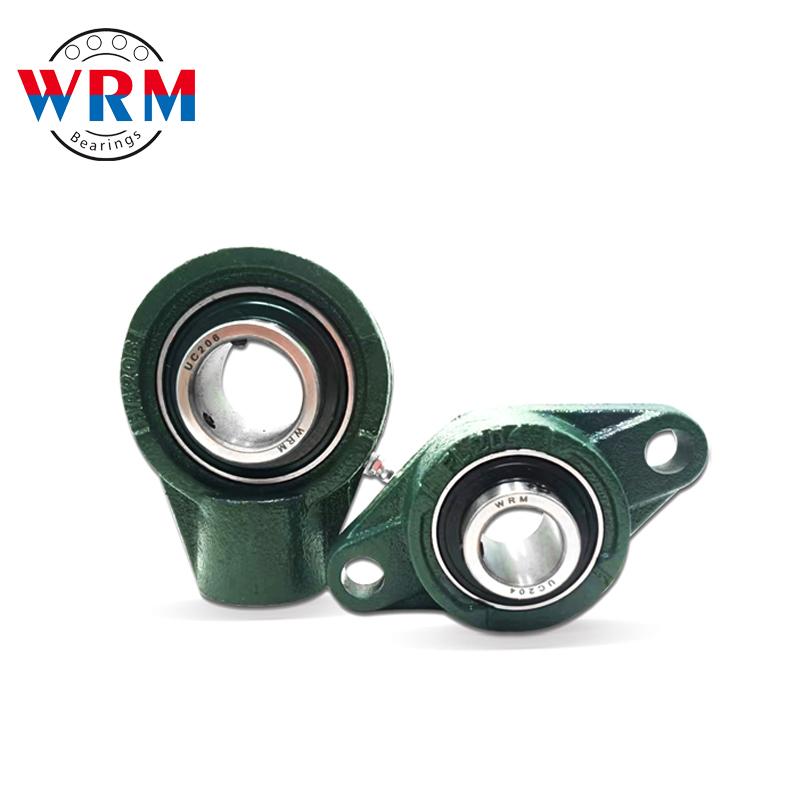

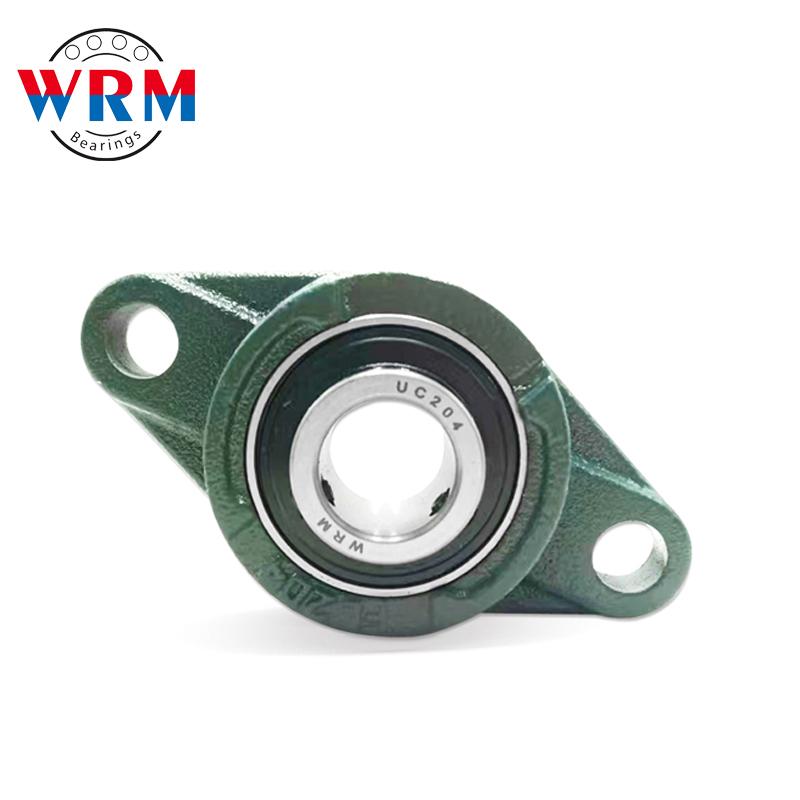

Pillow Block bearings UCFL

Insert bearing with housing has various forms of structure, good versatility and interchangeability.
At the same time, the bearings are also designed to have a certain degree of tuning, easy to install, with a double structure sealing device, can work in harsh environments.
The bearing seat is generally cast.
Common seats are vertical seat (P), square seat (F), boss square seat (FS), boss circular seat (FC), diamond seat (FL), ring seat (C), slider seat (T), etc.

Pillow Block bearings

Description

Product Name	Pillow Block Bearing UCFL
Material	Bearing steel、Cast Steel、Stainless steel
Inside diameter	12-90mm
Outside Diameter	60-205mm
Packing	According to the buyer requests for packaging

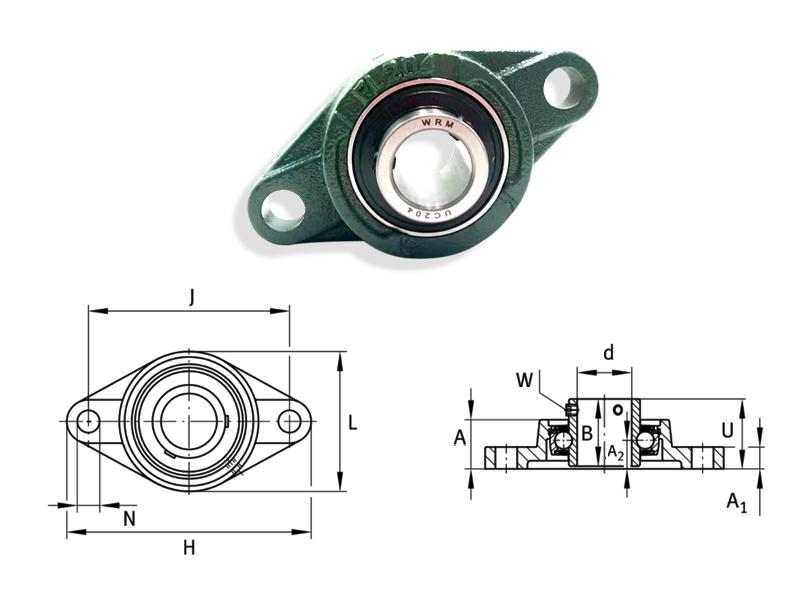

Model	Size（mm）						Bolt	Weight（kg）
Model	d	L	H	U	J	N	Bolt	Weight（kg）
UCFL201	12	60	113	33.3	90	12	M6	0.468
UCFL202	15	60	113	33.3	90	12	M6	0.453
UCFL203	17	60	113	33.3	90	12	M6	0.45
UCFL204	20	60	113	33.3	90	12	M10	0.45
UCFL205	25	68	130	35.7	99	16	M14	0.66
UCFL206	30	80	148	40.2	117	16	M14	0.86
UCFL207	35	90	161	44.1	130	16	M14	1.15
UCFL208	40	100	175	51.2	144	16	M14	1.46
UCFL209	45	108	188	52.2	146	19	M16	1.85
UCFL210	50	115	197	54.6	157	19	M16	1.98
UCFL211	55	130	224	58.4	184	19	M16	2.9
UCFL212	60	140	250	68.7	202	23	M20	3.7
UCFL213	65	155	258	69.7	210	23	M20	4.76
UCFL214	70	160	265	75.4	216	23	M20	5.3
UCFL215	75	165	275	78.5	225	23	M20	5.85
UCFL216	80	180	290	83.6	233	25	M22	7
UCFL217	85	190	305	87.6	248	25	M22	9.8
UCFL218	90	205	320	96.3	265	25	M22	12.4
