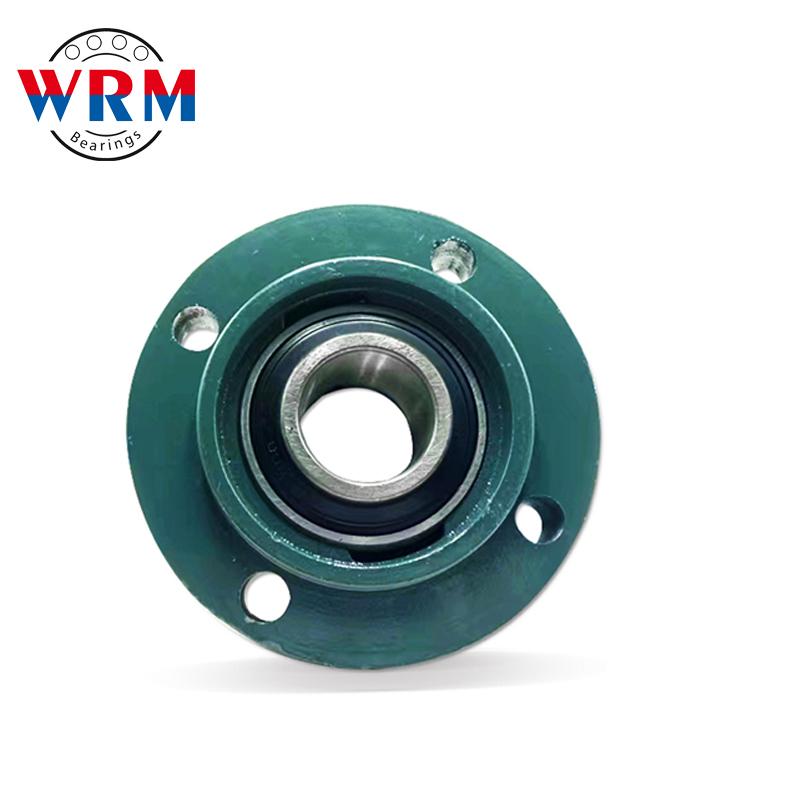

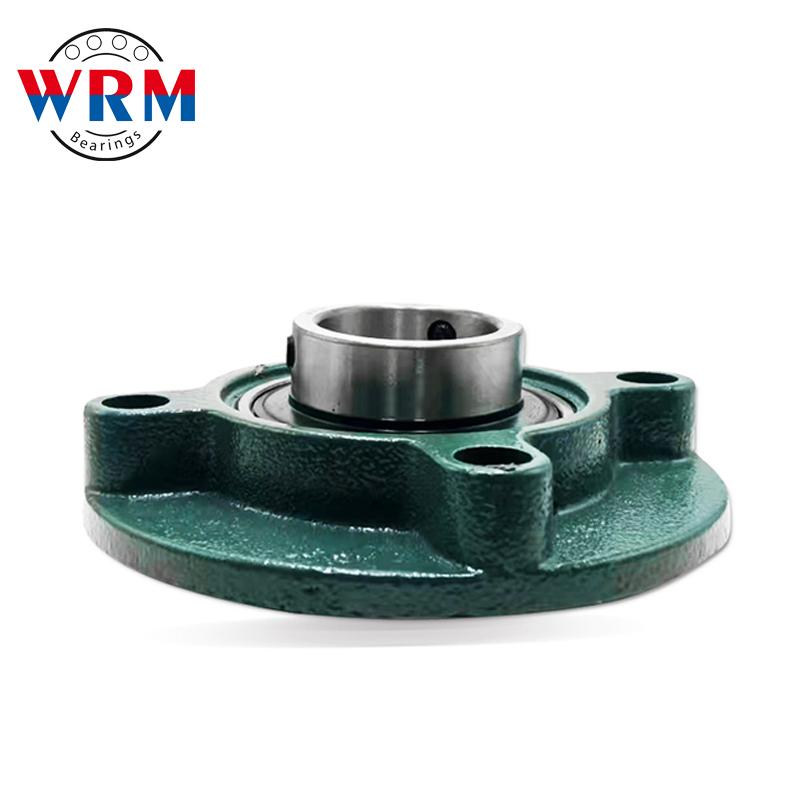

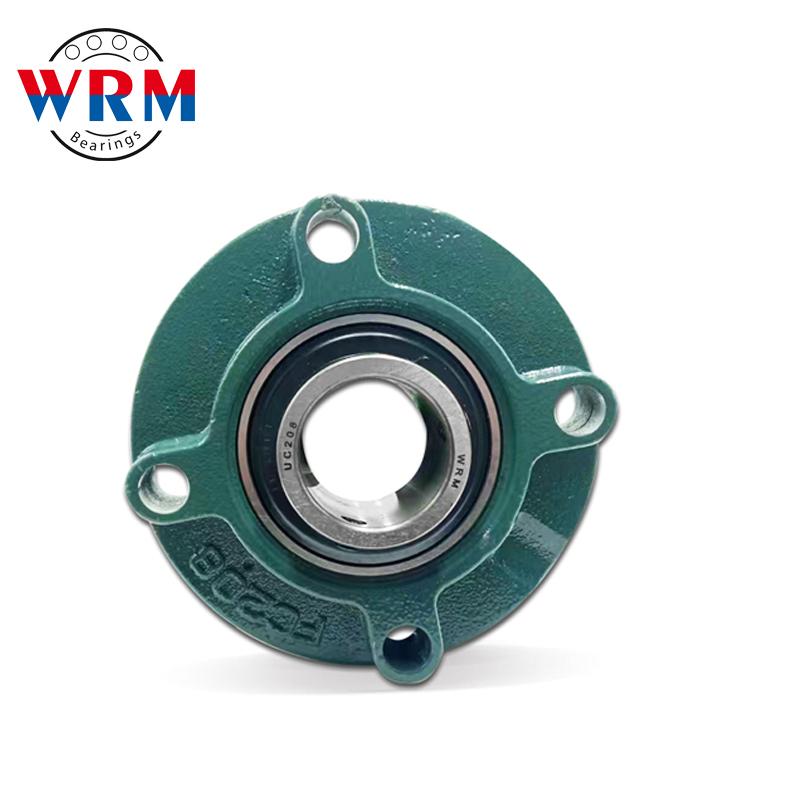

Pillow Block bearings UCFC

Insert bearing with housing has various forms of structure, good versatility and interchangeability.
At the same time, the bearings are also designed to have a certain degree of tuning, easy to install, with a double structure sealing device, can work in harsh environments.
The bearing seat is generally cast.
Common seats are vertical seat (P), square seat (F), boss square seat (FS), boss circular seat (FC), diamond seat (FL), ring seat (C), slider seat (T), etc.

Pillow Block bearings

Description

Product Name	Pillow Block Bearing UCFC
Material	Bearing steel、Cast Steel、Stainless steel
Inside diameter	12-90mm
Outside Diameter	60-205mm
Packing	According to the buyer requests for packaging

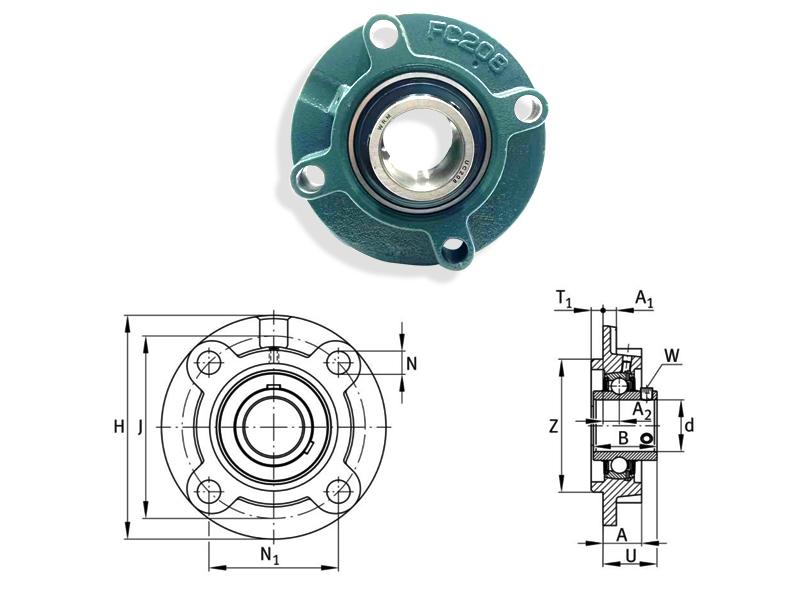

Model	Size（mm）							Bolt	Weight（kg）
Model	d	B	H	Z	A2	N	N1	Bolt	Weight（kg）
UCFC201	12	31	100	62	10	12	55.1	M10	0.8
UCFC202	15	31	100	62	10	12	55.1	M10	0.8
UCFC203	17	31	100	62	10	12	55.1	M10	0.7
UCFC204	20	31	100	62	10	12	55.1	M10	0.7
UCFC205	25	34.1	115	70	10	12	63.6	M10	1
UCFC206	30	38.1	125	80	10	12	70.7	M10	1.3
UCFC207	35	42.9	135	90	11	14	77.8	M12	1.6
UCFC208	40	49.2	145	100	11	14	84.8	M12	2.1
UCFC209	45	49.2	160	105	10	16	93.3	M14	2.7
UCFC210	50	51.6	165	110	10	16	97.6	M14	3.1
UCFC211	55	55.6	185	125	13	19	106.1	M16	4.2
UCFC212	60	65.1	195	135	17	19	113.1	M16	5.3
UCFC213	65	65.1	205	145	16	19	120.2	M16	6
UCFC214	70	74.6	215	150	17	19	125.1	M16	7
UCFC215	75	77.8	220	160	18	19	130.1	M16	7.8
UCFC216	80	82.6	240	170	18	23	141.4	M20	9.3
UCFC217	85	85.7	250	180	18	23	147.1	M20	11
UCFC218	90	96	265	190	22	23	155.5	M20	13
UCFC220	100	108	330	220	24	26	198	M24	17.5
