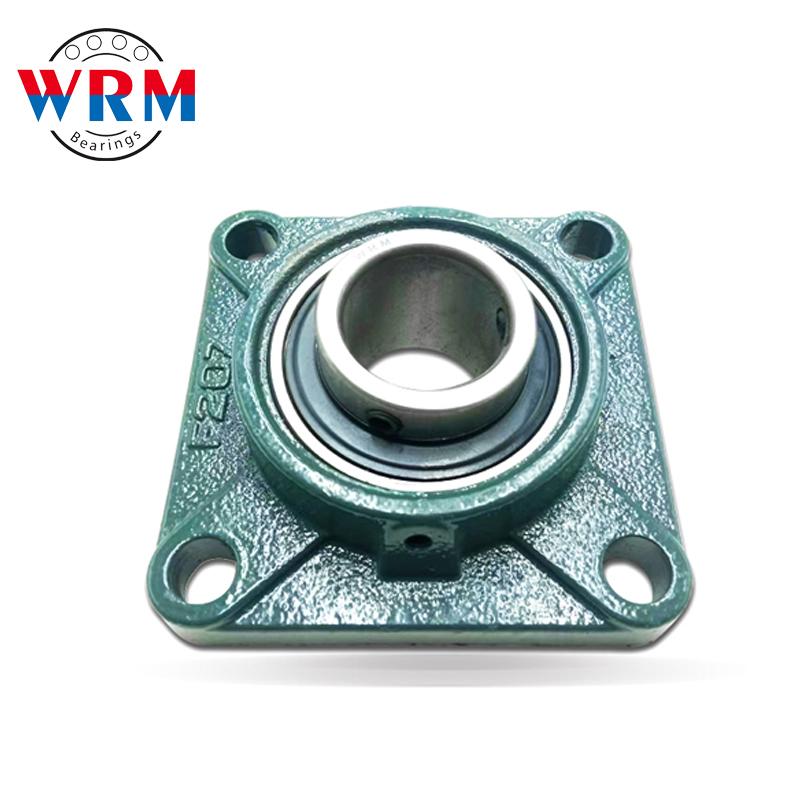

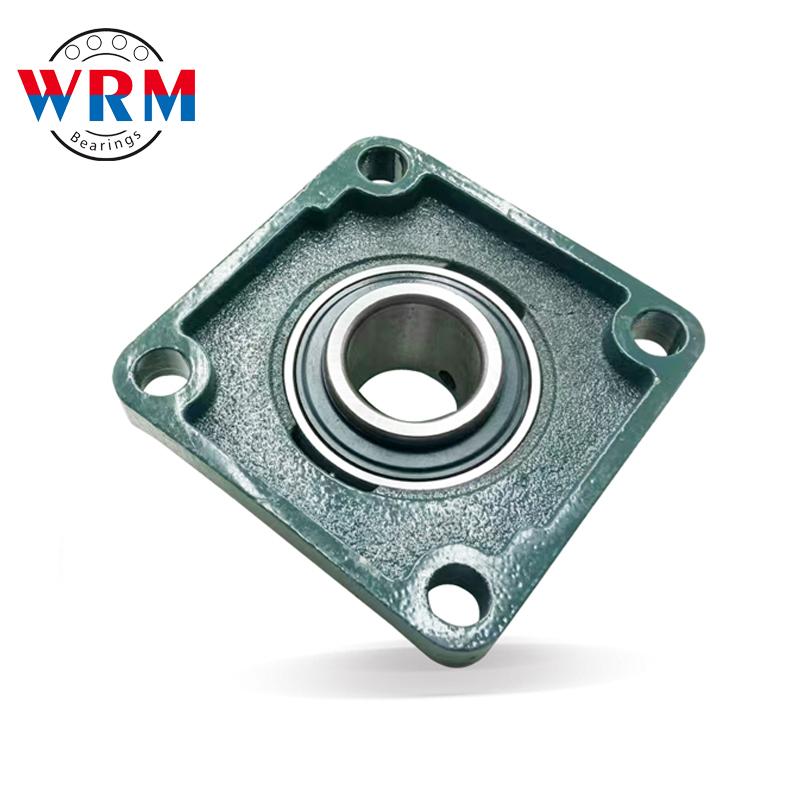

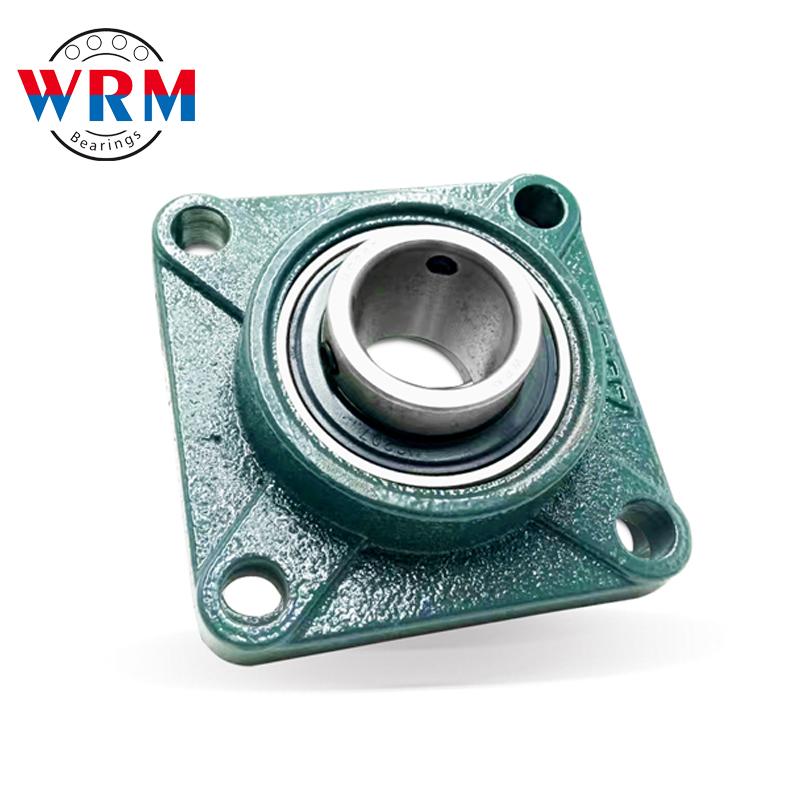

Pillow Block bearings UCF

Insert bearing with housing has various forms of structure, good versatility and interchangeability.
At the same time, the bearings are also designed to have a certain degree of tuning, easy to install, with a double structure sealing device, can work in harsh environments.
The bearing seat is generally cast.

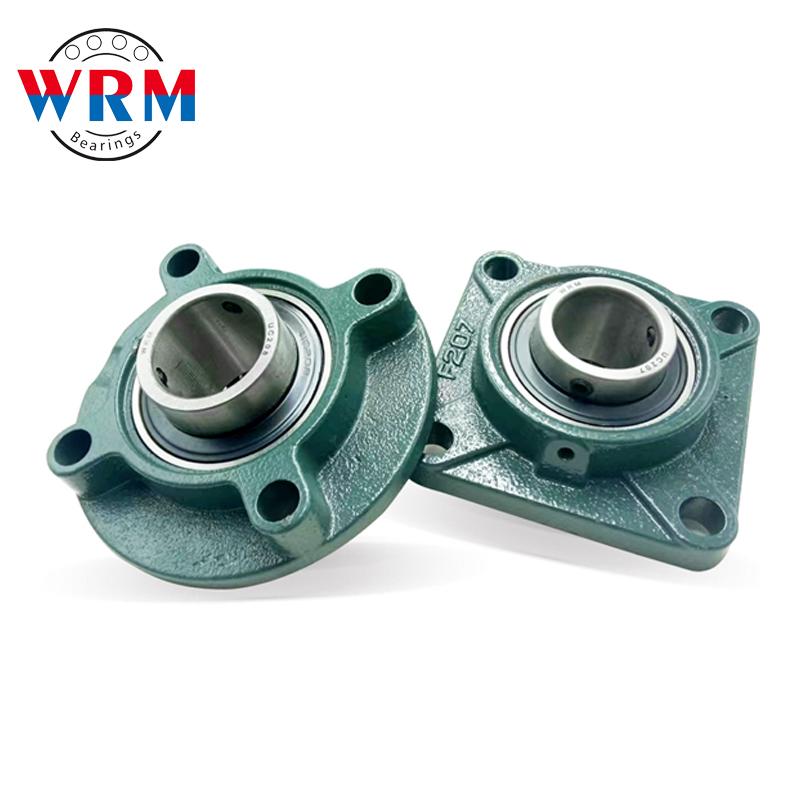

Common seats are vertical seat (P), square seat (F), boss square seat (FS), boss circular seat (FC), diamond seat (FL), ring seat (C), slider seat (T), etc.

Pillow Block bearings

Description

Product Name	Pillow Block Bearing UCF
Material	Bearing steel、Cast Steel、Stainless steel
Inside diameter	12-90mm
Outside Diameter	60-205mm
Packing	According to the buyer requests for packaging

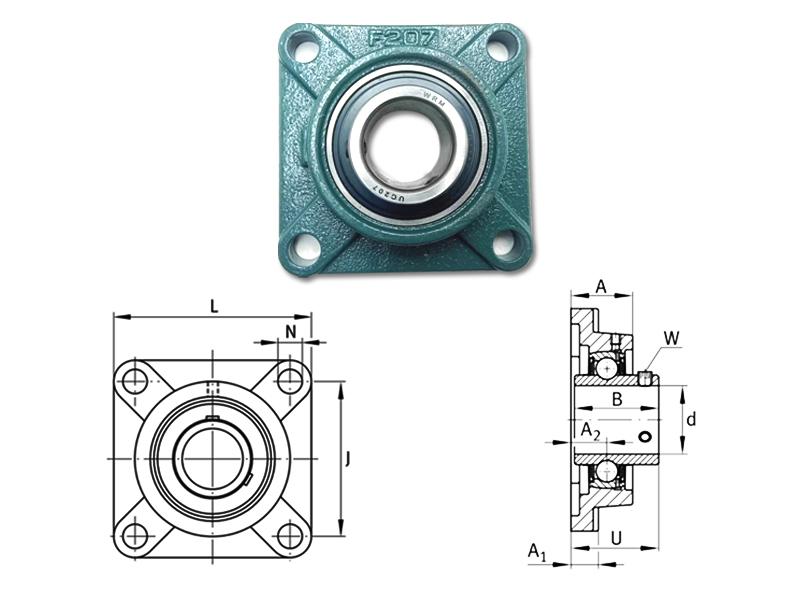

Model	d	Size（mm）				Bolt	Weight（kg)
Model	d	L	J	N	A2	Bolt	Weight（kg)
UCF201	12	86	64	12	15	M6	0.64
UCF202	15	86	64	12	15	M6	0.62
UCF203	17	76	54	12	15	M10	0.61
UCF204	20	86	64	12	15	M10	0.61
UCF205	25	95	70	12	16	M10	0.8
UCF206	30	108	83	12	18	M10	1
UCF207	35	117	92	14	19	M12	1.4
UCF208	40	130	102	16	21	M14	1.8
UCF209	45	137	105	16	22	M14	2.2
UCF210	50	143	111	16	22	M14	2.4
UCF211	55	162	130	19	25	M16	3.5
UCF212	60	175	143	19	29	M16	4.2
UCF213	65	187	149	19	30	M16	5.3
UCF214	70	193	152	19	31	M16	5.9
UCF215	75	200	159	19	34	M16	6.3
UCF216	80	208	165	23	34	M20	7.3
UCF217	85	220	175	23	36	M20	8.9
UCF218	90	235	187	23	40	M20	11.6
