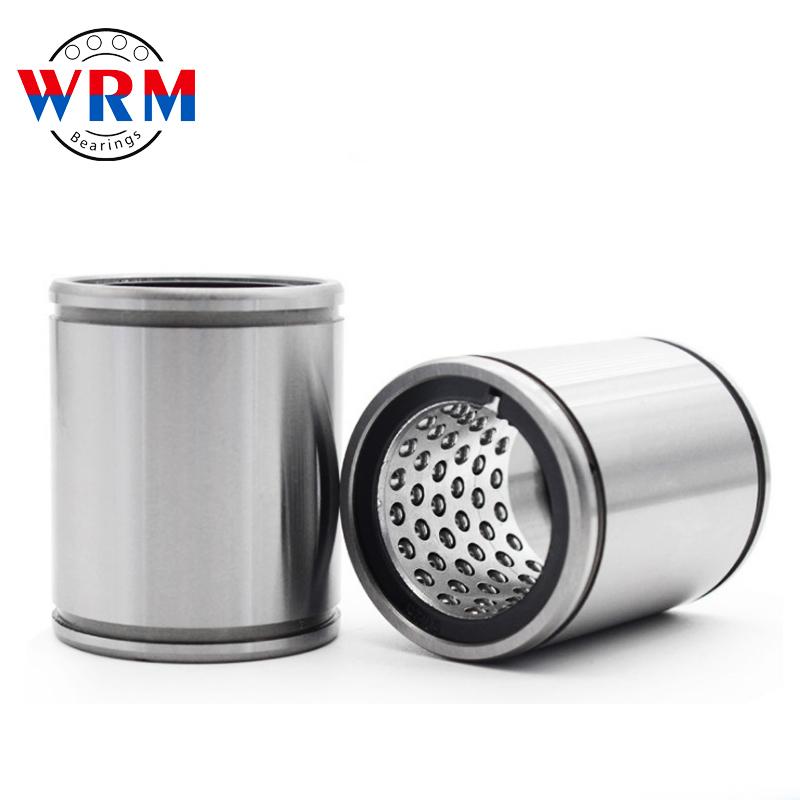

Linear bearing is a linear motion system produced at low cost. It is used for the combination of infinite stroke and cylindrical shaft.
Widely used in precision machine tools, textile machinery, food packaging machinery, printing machinery and other industrial machinery sliding components.
| Product Name | Linear Bearing ST6 |
| Material | Chrome Steel |
| Inside diameter | 6-80mm |
| Outside Diameter | 12-110mm |
| Packing | According to the buyer requests for packaging |
| Designation | Travel rounte | Principal Dimension | Basic Load Ratings(KN) | Weight (kg) | |||
| dr | D | L | CN | CON | |||
| ST6 | 一 | 6 | 12 | 20 | 0.85 | 0.25 | 0.02 |
| ST8 | 14 | 8 | 15 | 24 | 0.98 | 0.27 | 0.03 |
| ST10 | 16 | 10 | 19 | 30 | 2.35 | 0.62 | 0.043 |
| ST12 | 17 | 12 | 23 | 32 | 4.02 | 1.08 | 0.058 |
| ST16 | 24 | 16 | 28 | 37 | 4.02 | 1.27 | 0.08 |
| ST20 | 32 | 20 | 32 | 45 | 4.12 | 1.57 | 0.125 |
| ST25 | 32 | 25 | 37 | 45 | 4.12 | 1.76 | 0.145 |
| ST30 | 65 | 30 | 45 | 65 | 9.31 | 4.12 | 0.28 |
| ST35 | 75 | 35 | 52 | 70 | 9.31 | 4.51 | 0.42 |
| ST40 | 91 | 40 | 60 | 80 | 9.41 | 6.18 | 0.64 |
| ST45 | 91 | 45 | 65 | 80 | 12.5 | 6.76 | 0.705 |
| ST50 | 120 | 50 | 72 | 100 | 12.6 | 8.82 | 1.03 |
| ST60 | 120 | 60 | 85 | 100 | 16.6 | 10.5 | 1.49 |
| ST80 | 120 | 80 | 110 | 100 | 21.3 | 15.3 | 2.45 |
