Linear Bearing LME5UU

Home Linear Bearings Linear Bearing LME5UU

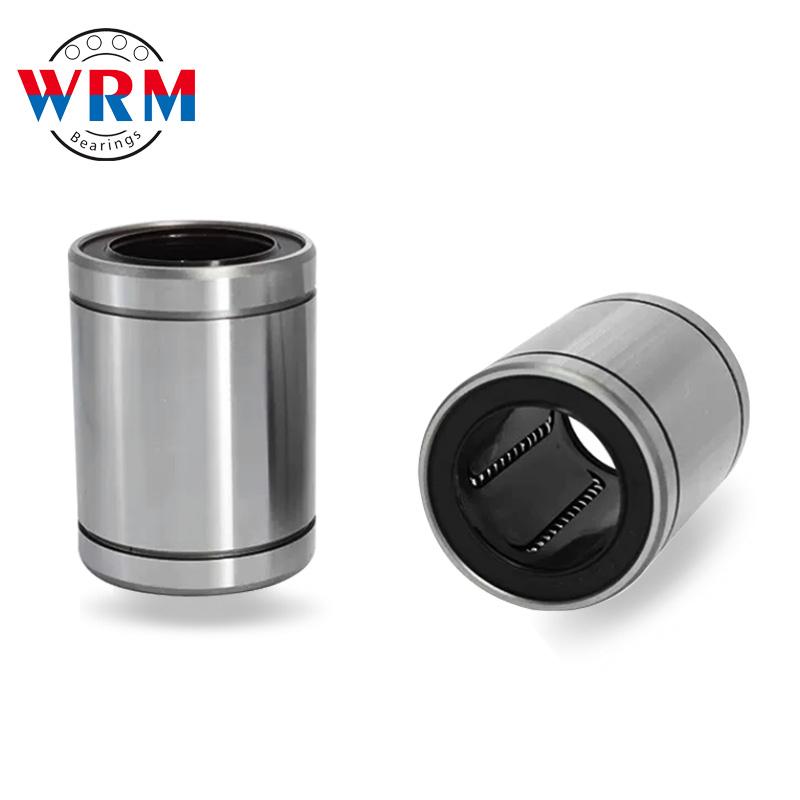

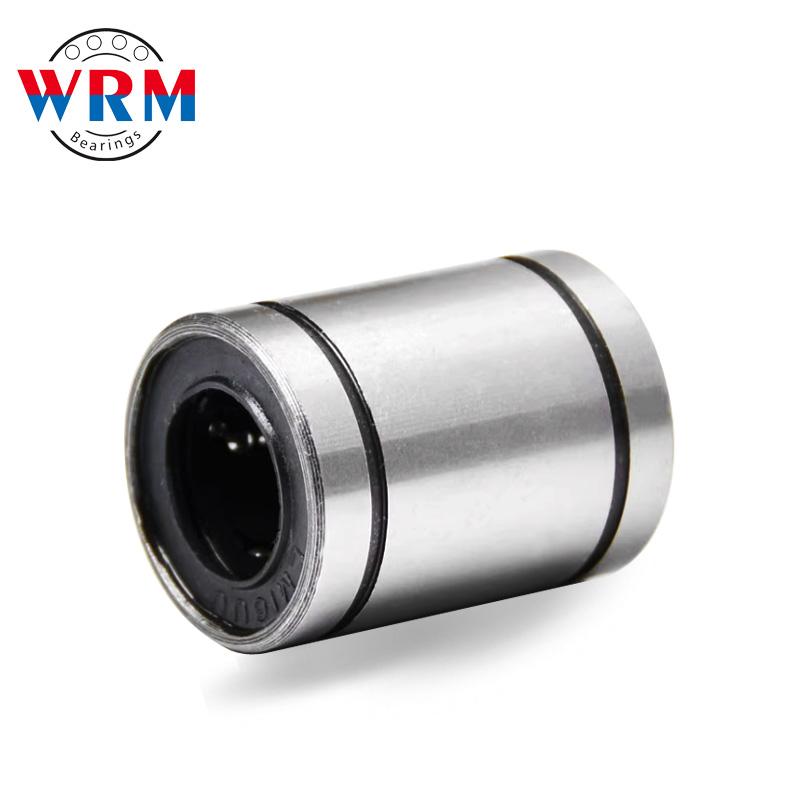

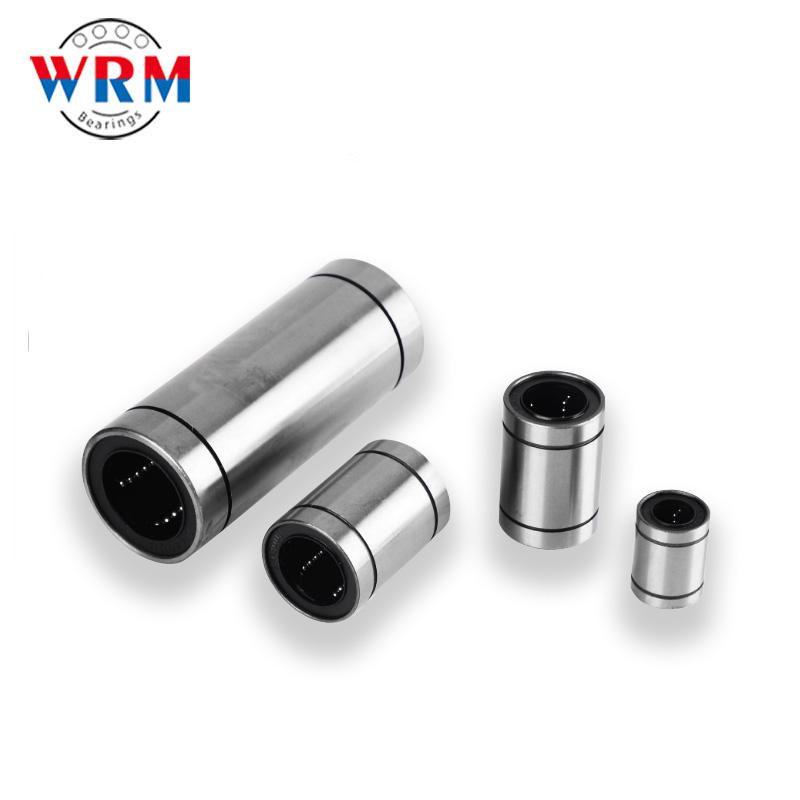

Linear Bearing LME5UU

Linear bearing is a linear motion system produced at low cost. It is used for the combination of infinite stroke and cylindrical shaft.Widely used in precision machine tools, textile machinery, food packaging machinery, printing machinery and other industrial machinery sliding components.

Linear Bearings2025-08-28n20

Description

Product Name Linear Bearing LME5UU
Material Chrome Steel
Inside diameter 20-500mm
Outside Diameter 35-600mm
Packing According to the buyer requests for packaging

Designation Principal Dimension(mm) NO.of ball rows Basic Load Ratings Weight (kg)
dr D L B W D1 CN CON
LME5UU 5 12 22 14.5 1.1 11.5 4 206 265 0.011
LME8UU 8 16 25 16.5 1.1 15.2 4 265 402 0.02
LME10UU
LME12UU 12 22 32 22.9 1.3 21 4 510 784 0.041
LME16UU 16 26 36 24.9 1.3 24.9 5 578 892 0.057
LME20UU 20 32 45 31.5 1.6 30.3 5 862 1370 0.091
LME25UU 25 40 58 44.1 1.85 37.5 6 980 1570 0.215
LME30UU 30 47 68 52.1 1.85 44.5 6 1570 2740 0.325
LME40UU 40 62 80 60.6 2.15 59 6 2160 4020 0.705
LME50UU 50 75 100 77.6 2.65 72 6 3820 7940 1.13
LME60UU 60 90 125 101.7 3.15 86.5 6 4700 9800 2
LME80UU 80 120 165 133.7 4.15 116 6 10192 17640 4.84
