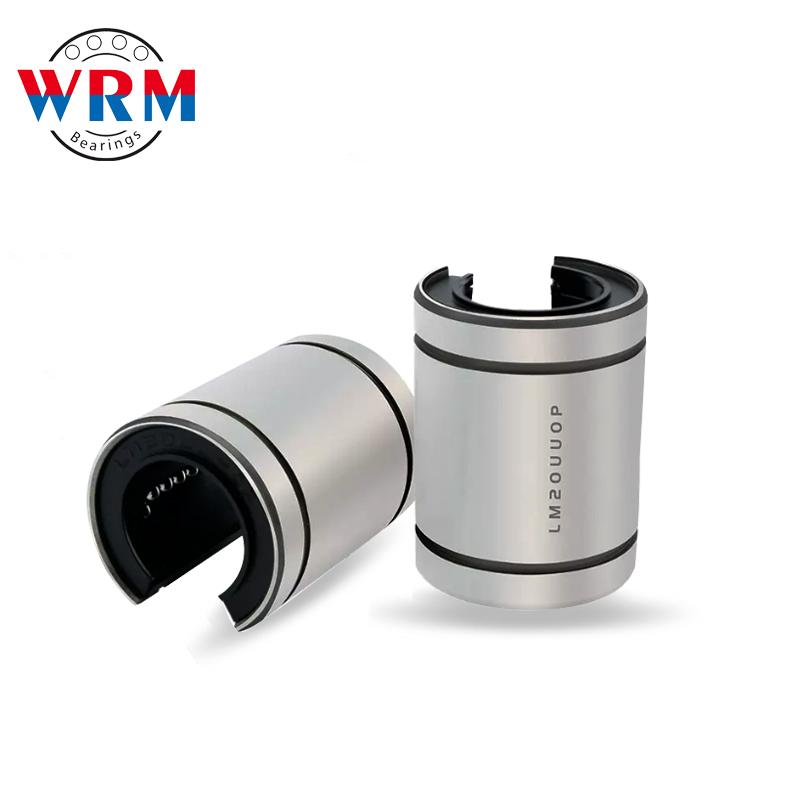

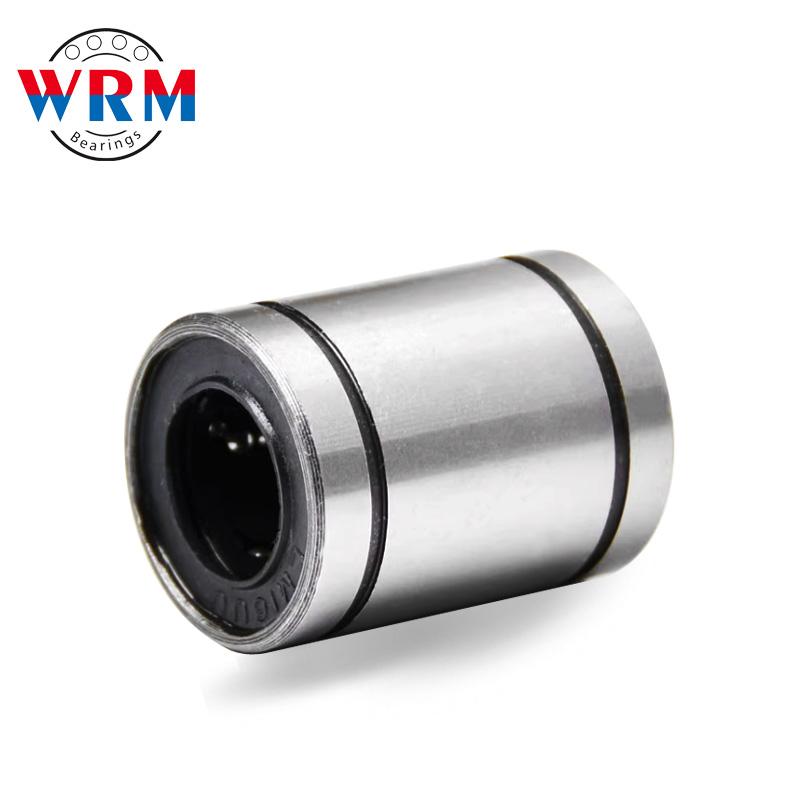

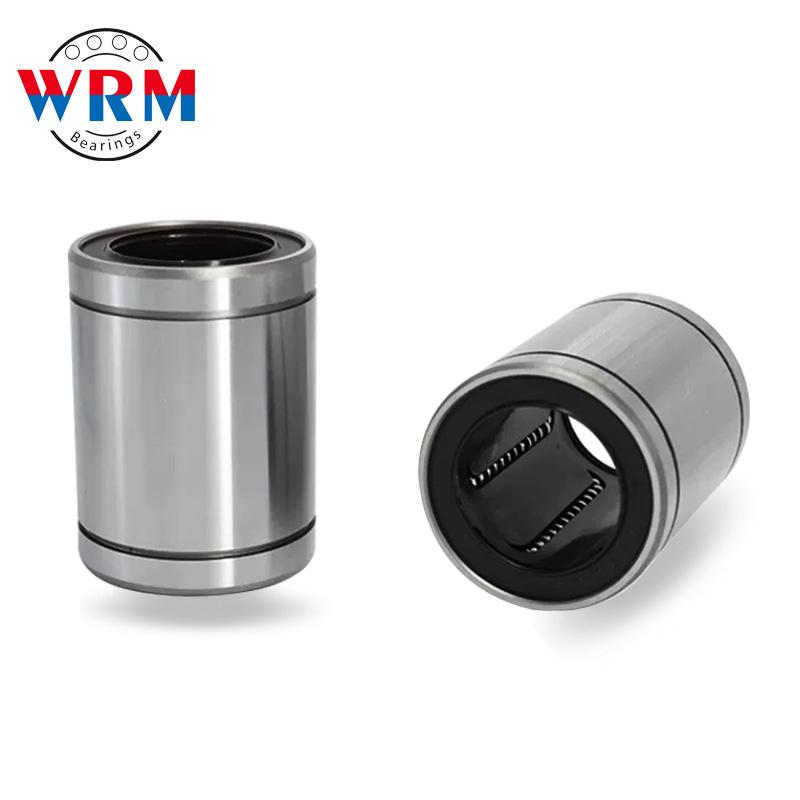

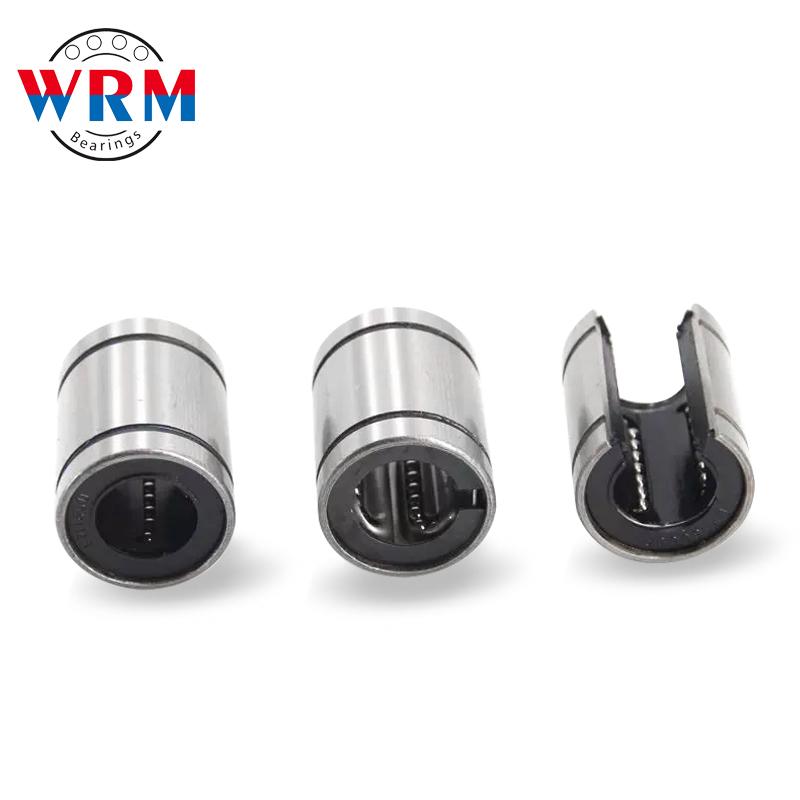

Linear Bearing LM60

Linear bearing is a linear motion system produced at low cost. It is used for the combination of infinite stroke and cylindrical shaft.Widely used in precision machine tools, textile machinery, food packaging machinery, printing machinery and other industrial machinery sliding components.

Linear Bearings

Description

Product Name	Linear Bearing LM60
Material	Chrome Steel
Inside diameter	20-500mm
Outside Diameter	35-600mm
Packing	According to the buyer requests for packaging

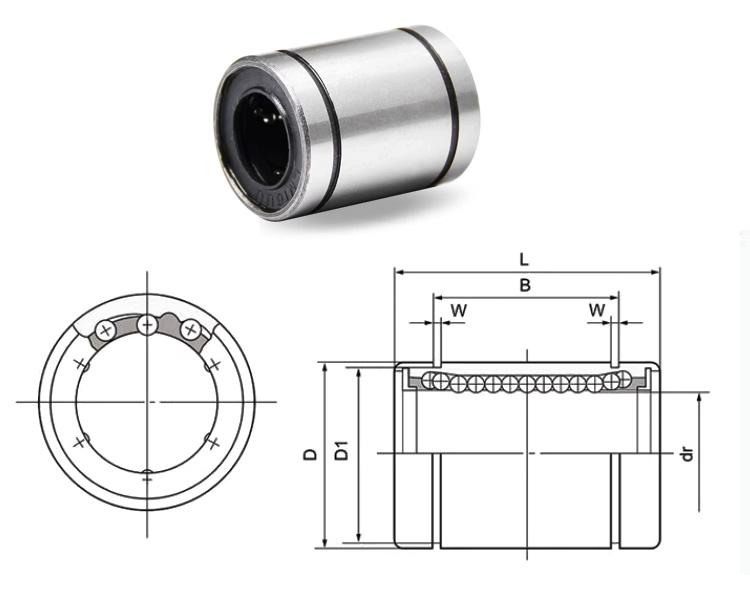

Model NO.	Dimensions						NO.of ball rows	Basic Load Ratings		Weight （g）
Model NO.	d	D	L	B	W	D1	NO.of ball rows	CN	CON	Weight （g）
LM3	3	7	10	–	–	–	4	88.2	108	0.00135
LM4	4	8	12	–	–	–	4	88.2	127	0.0019
LM5	4	5	10	10.2	–	–	4	167	206	0.004
LM6	6	12	19	13.5	1.1	11.5	4	206	265	0.0076
LM8	8	15	24	17.5	1.1	14.5	4	265	402	0.015
LM10	10	19	29	22	1.3	18	4	373	549	0.0395
LM12	12	21	30	23	1.3	20	4	412	598	0.0315
LM13	13	23	32	23	1.3	22	4	510	775	0.0043
LM16	16	28	37	26.5	1.6	27	5	775	1180	0.043
LM20	20	32	42	30.5	1.6	30.5	5	863	1370	0.087
LM25	25	40	59	41	1.85	38	6	980	1570	0.22
LM30	30	45	64	44.5	1.85	43	6	1570	2750	0.25
LM35	35	52	70	49.5	2.1	49	6	1670	3140	0.39
LM40	40	60	80	60.5	2.1	57	6	2160	4020	0.585
LM50	50	80	100	74	2.6	76.5	6	3820	7940	1.58
LM60	60	90	110	85	3.15	86.5	6	4710	10000	2
LM80	80	120	140	105.5	4.15	116	6	7350	16000	4.52
