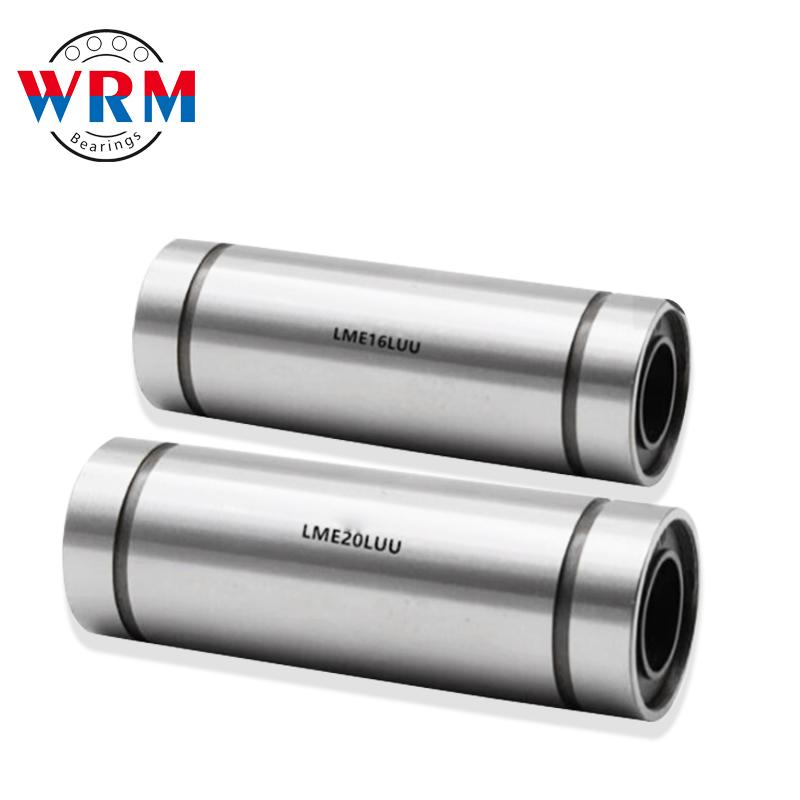

Linear Bearing LM3LUU

Linear bearing is a linear motion system produced at low cost. It is used for the combination of infinite stroke and cylindrical shaft.Widely used in precision machine tools, textile machinery, food packaging machinery, printing machinery and other industrial machinery sliding components.

Linear Bearings

Description

Product Name	Linear Bearing LM3LUU
Material	Chrome Steel
Inside diameter	3-80mm
Outside Diameter	7-120mm
Packing	According to the buyer requests for packaging

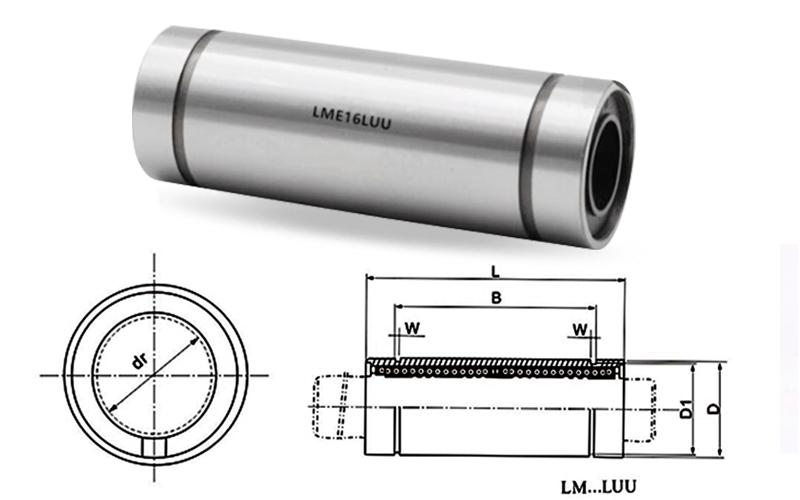

Designation	Principal Dimension（mm）						NO.of ball rows	Basic Load Ratings		Weight (kg)
Designation	dr	D	L	B	W	D1	NO.of ball rows	CN	CON	Weight (kg)
LM3LUU	3	7	19				1	86	135	0.003
LM4LUU	4	8	23				4	139	254	0.004
LM5LUU	5	10	29	20	1.1	9.6	4	263	415	0.008
LM6LUU	6	12	35	27	1.1	11.5	4	324	529	0.016
LM8LUU	8	15	45	35	1.1	14.3	4	431	784	0.031
LM10LUU	10	19	55	44	1.3	18	4	588	1100	0.062
LM12LUU	12	21	57	46	1.3	20	4	657	1200	0.08
LM13LUU	13	23	61	46	1.3	22	4	814	1570	0.09
LM16LUU	16	28	70	53	1.6	27	5	1230	2350	0.145
LM20LUU	20	32	80	61	1.6	30.5	5	1400	2750	0.18
LM25LUU	25	40	112	82	1.85	38	6	1560	3140	0.44
LM30LUU	30	45	123	89	1.85	43	6	2490	5490	0.58
LM35LUU	35	52	135	99	2.1	49	6	2650	6270	0.795
LM40LUU	40	60	154	121	2.1	57	6	3430	8040	1.17
LM50LUU	50	80	192	148	2.6	76.5	6	6080	15900	3.1
LM60LUU	60	90	211	170	3.15	86.5	6	7650	20000	3.5
LM80LUU	80	120	265	216	41.15	116	6	11500	32000	7.71
