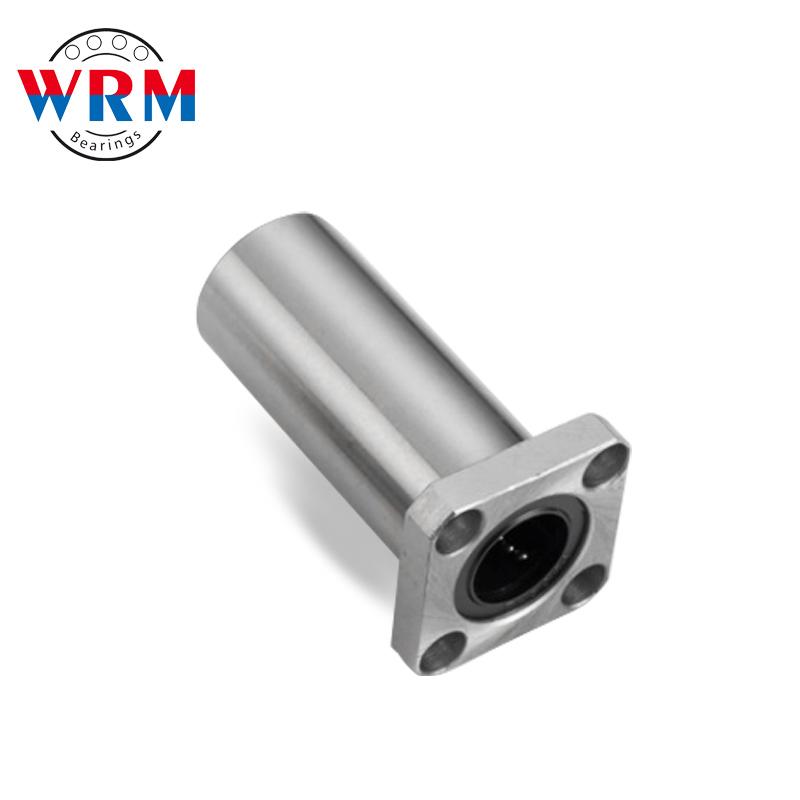

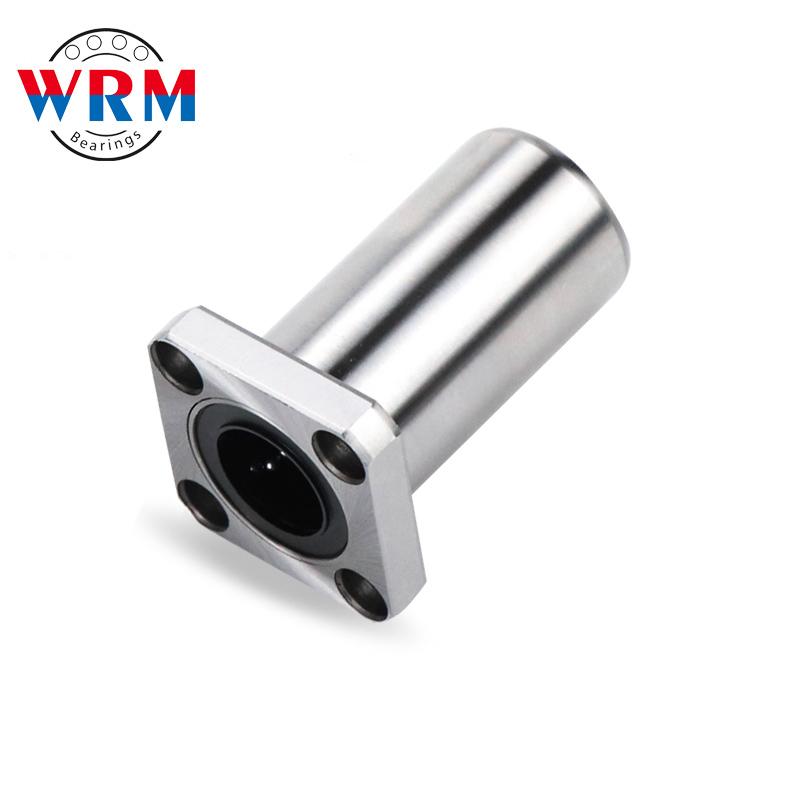

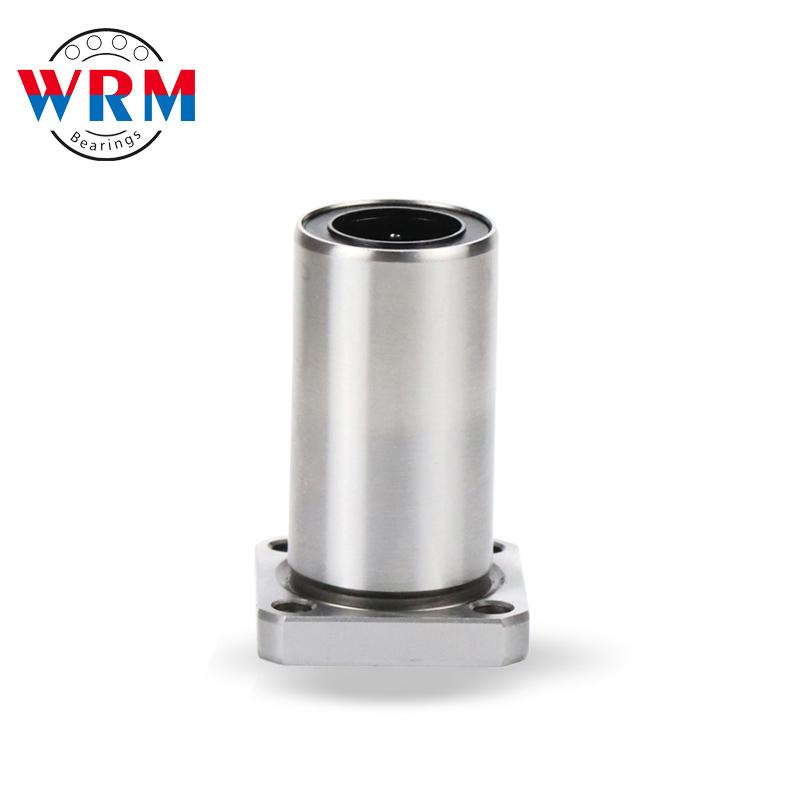

Flange Linear Bearing LMK6UU

Linear bearing is a linear motion system produced at low cost. It is used for the combination of infinite stroke and cylindrical shaft.Widely used in precision machine tools, textile machinery, food packaging machinery, printing machinery and other industrial machinery sliding components.

Linear Bearings

Description

Product Name	Linear Bearing LMK6UU
Material	Chrome Steel
Inside diameter	6-100mm
Outside Diameter	12-150mm
Packing	According to the buyer requests for packaging

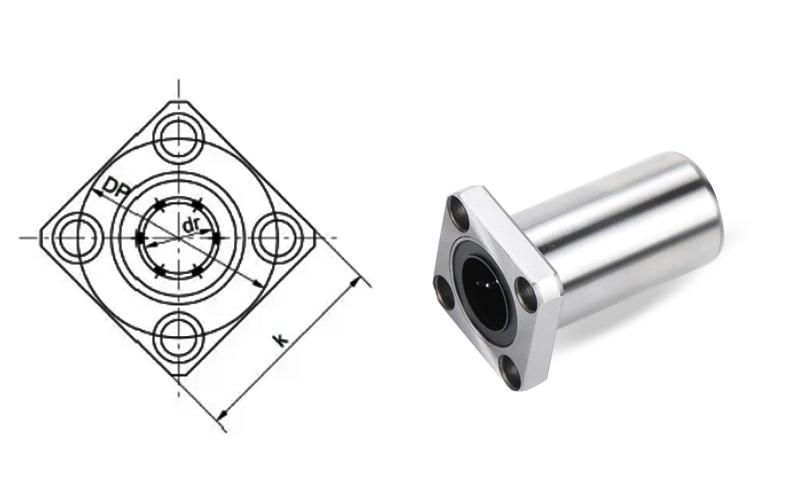

Model NO.	Dimensions			NO.of ball rows	Basic Load Ratings		weight （kg）
Model NO.	d	D	L	NO.of ball rows	CN	CON	weight （kg）
LMK6UU	6	12	19	6	200	260	0.03
LMK8UU	8	15	24	4	260	400	0.04
LMK10UU	10	19	29	4	370	540	0.08
LMK12UU	12	21	30	4	410	590	0.08
LMK13UU	13	23	32	4	500	770	0.09
LMK16UU	16	28	37	5	770	1170	0.13
LMK20UU	20	32	42	5	860	1370	0.18
LMK25UU	25	40	59	6	980	1560	0.34
LMK30UU	30	45	64	6	1560	2740	0.46
LMK35UU	35	52	70	6	1660	3130	0.80
LMK40UU	40	60	80	6	2150	4010	1.05
LMK50UU	50	80	100	6	3820	7930	2.20
LMK60UU	60	90	110	6	4700	9990	2.96
LMK80UU	80	120	140	6	7350	16000	5.80
LMK100UU	100	150	175	6	14100	34800	10.60
