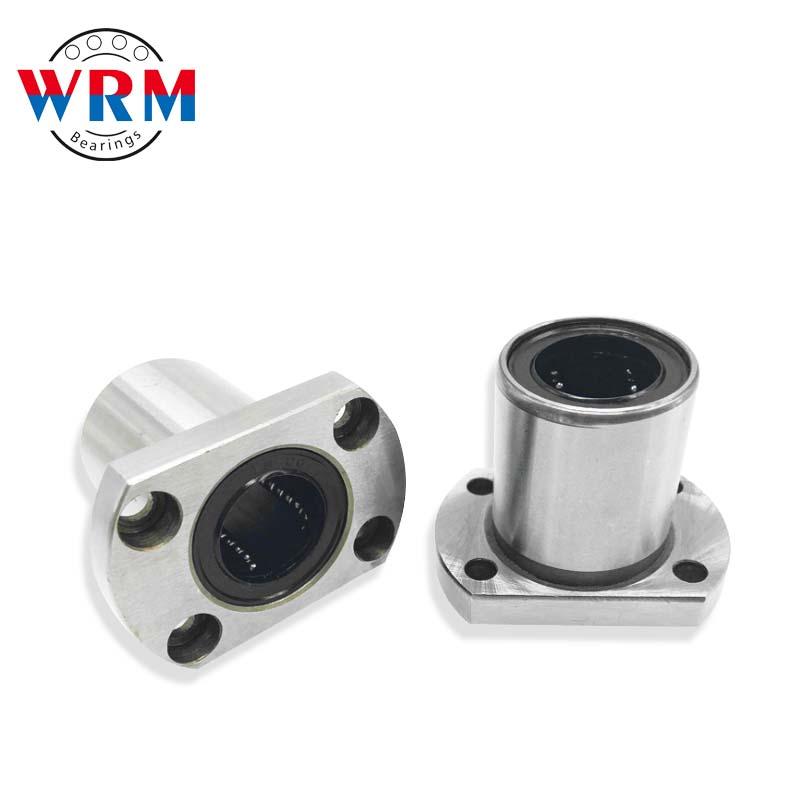

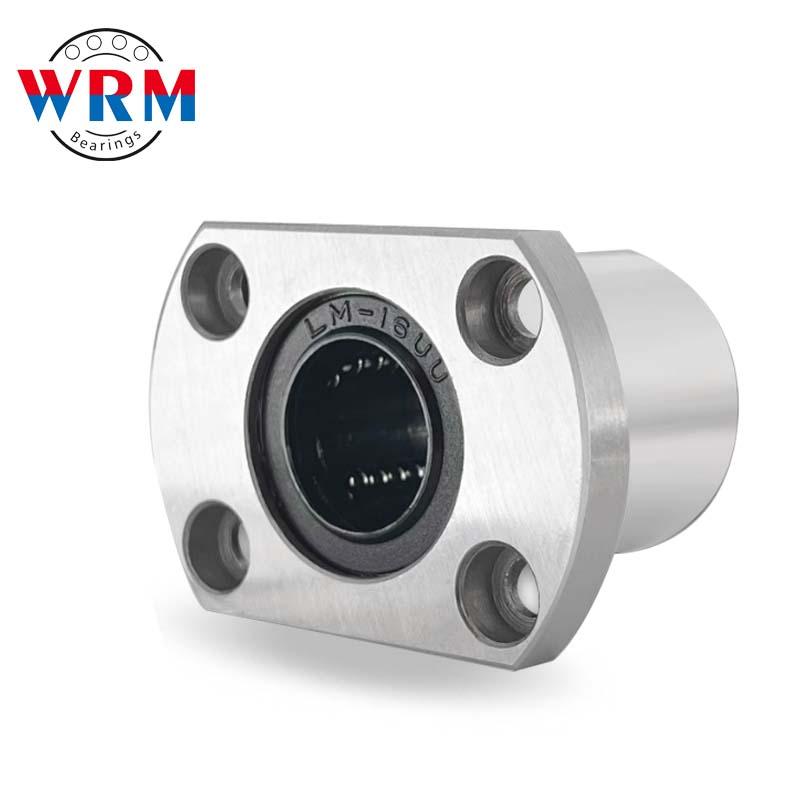

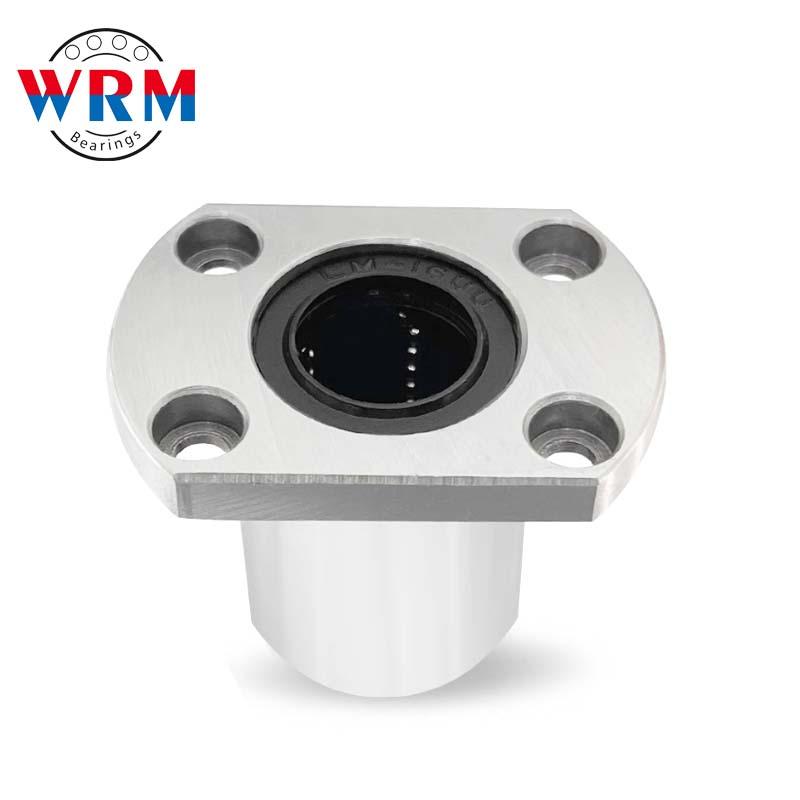

Flange Linear Bearing LMH 6UU

Linear bearing is a linear motion system produced at low cost. It is used for the combination of infinite stroke and cylindrical shaft.
Widely used in precision machine tools, textile machinery, food packaging machinery, printing machinery and other industrial machinery sliding components.

Linear Bearings

Description

Product Name	Linear Bearing LMH 6UU
Material	Chrome Steel
Inside diameter	6-100mm
Outside Diameter	12-150mm
Packing	According to the buyer requests for packaging

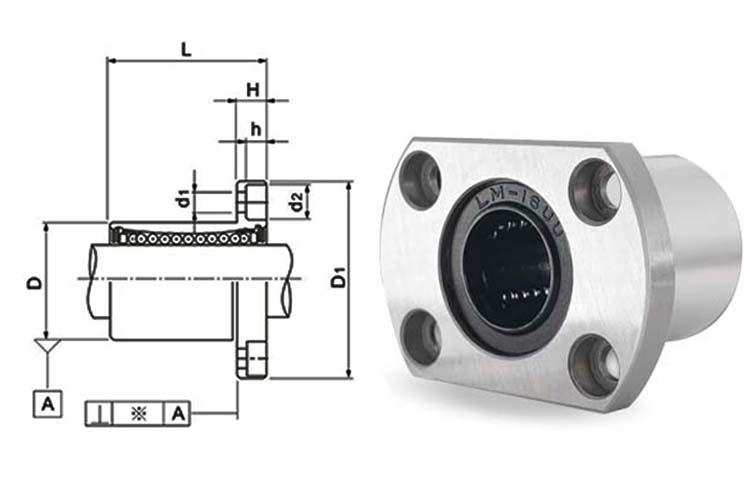

Designation	Principal Dimension（mm）				NO.of ball rows	Basic Load Ratings		weight （g）
Designation	d	D	L	D1	NO.of ball rows	CN	CON	weight （g）
LMH 6UU	6	12	19	28	6	200	260	0.0265
LMH 8UU	8	15	17	32	4	170	220	0.034
LMH 8UU	8	15	24	32	4	260	400	0.04
LMH 10UU	10	19	29	40	4	370	540	0.078
LMH 12UU	12	21	30	42	4	410	590	0.076
LMH 13UU	13	23	32	43	4	500	770	0.094
LMH 16UU	16	28	37	48	5	770	1170	0.134
LMH 20UU	20	32	42	54	5	860	1370	0.18
LMH 25UU	25	40	59	62	6	980	1560	0.34
LMH 30UU	30	45	64	74	6	1560	2740	0.46
LMH 35UU	35	52	70	82	6	1660	3130	0.795
LMH 40UU	40	60	80	96	6	2150	4010	1.054
LMH 50UU	50	80	100	116	6	3820	7930	2.2
LMH 60UU	60	90	110	134	6	4700	9990	2.96
LMH 80UU	80	120	140	164	6	7350	16000	5.8
LMH 100UU	100	150	175	200	6	14100	34800	10.6
