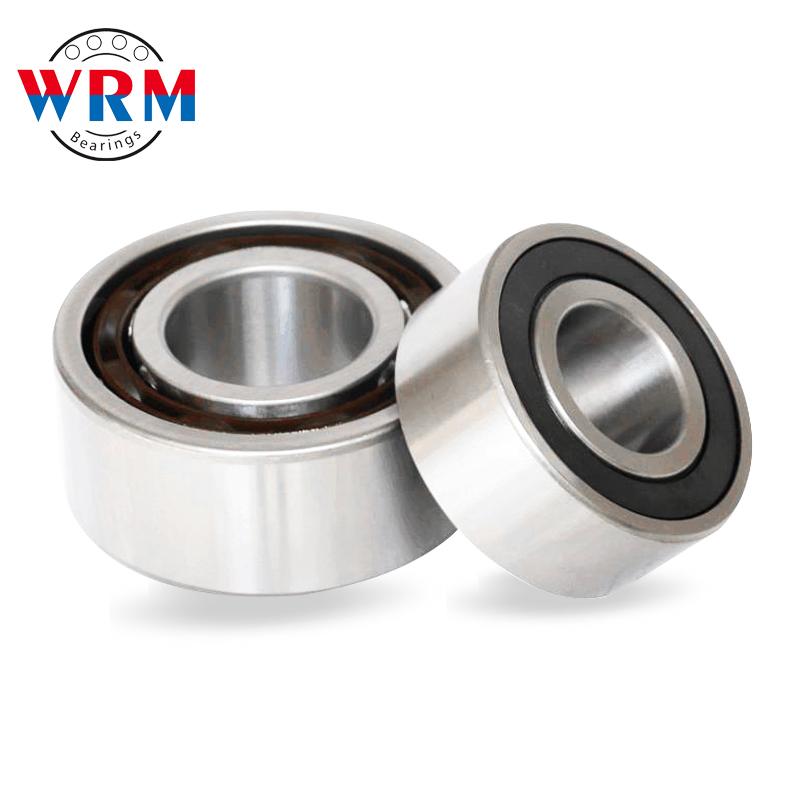

Double-row angular contact ball bearing 5300

The design of double-row angular contact ball bearings is basically the same as that of single-row angular contact ball bearings, but occupies less axial space.The double-row angular contact ball bearing can bear radial load and axial load acting in two directions, it can limit the axial displacement of the shaft or housing in two directions, the contact Angle is 30 degrees.Provides high rigidity bearing configuration, and can withstand overturning torque.

Description

Product Name	Angular Contact Ball Bearings 5300
Material	Chrome Steel
Inside diameter	10-90mm
Outside Diameter	30-190mm
Packing	According to the buyer requests for packaging

Designation	Principal Dimension			Basic Load Ratings（KN）		Speed ratings(r/min)		Weight
Designation	d	D	B	Dynamic	Static	Grease	Oil	kg
5300	10	35	19	12.5	8.6	12000	15000	0.09
5301	12	37	19	15.3	9.5	11000	14000	0.11
5302	15	42	19	17.2	10.1	9900	13000	0.132
5303	17	47	22.2	20.4	12.1	9000	12000	0.181
5304	20	52	22.2	20.6	12.7	8000	11000	0.217
5305	25	62	25.4	30.5	20.5	6700	8900	0.362
5306	30	72	30.2	39.5	27.5	5700	7600	0.553
5307	35	80	34.9	49.5	35	5000	6600	0.766
5308	40	90	36.5	60	44	4400	5900	1.01
5309	45	100	39.7	72.5	54	4000	5300	1.34
5310	50	110	44.4	85.5	64.5	3600	4800	1.84
5311	55	120	49.2	106	82	3300	4400	2.32
5312	60	130	54	122	95.5	3000	4000	3.05
5313	65	140	58.7	138	109	2800	3700	3.96
5314	70	150	63.5	155	125	2600	3500	4.74
5315	75	160	68.3	168	141	2400	3200	5.65
5316	80	170	68.3	188	165	2300	3000	6.81
5317	85	180	73.02	205	180	2100	2800	8.83
5318	90	190	73.02	236	205	2000	2600	9.62
