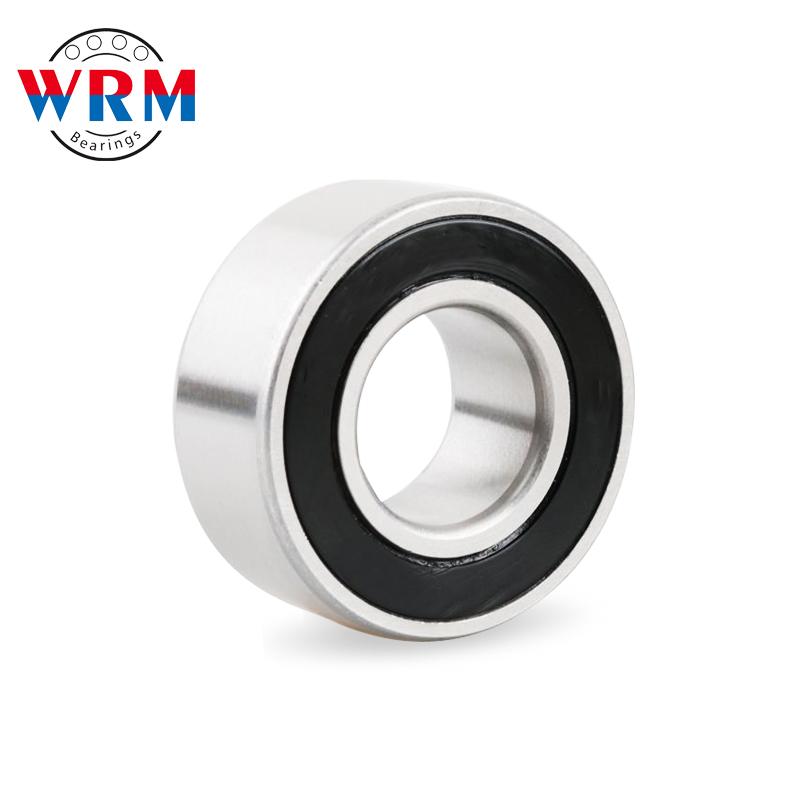

Double-row angular contact ball bearing 3800

The design of double-row angular contact ball bearings is basically the same as that of single-row angular contact ball bearings, but occupies less axial space.The double-row angular contact ball bearing can bear radial load and axial load acting in two directions, it can limit the axial displacement of the shaft or housing in two directions, the contact Angle is 30 degrees.Provides high rigidity bearing configuration, and can withstand overturning torque.

Description

Product Name	Angular Contact Ball Bearing 3800
Material	Chrome Steel
Inside diameter	10-100mm
Outside Diameter	19-125mm
Packing	According to the buyer requests for packaging

Designation	Old model	Principal Dimension			Basic Load Ratings（KN）		Speed ratings(r/min)		Weight (kg)
Designation	Old model	d	D	B	Cr	Cor	Grease	Oil	Weight (kg)
3800	305800	10	19	7	2080	1370	30500	21000	0.008
3801	305801	12	21	7	2150	1520	28000	18100	0.008
3802	305802	15	24	7	2300	1820	25000	15000	0.01
3803	305803	17	26	7	2430	2020	23000	13200	0.013
3804	305804	20	32	10	5600	4750	17400	11800	0.016
3805	305805	25	37	10	5900	5500	9300	10000	0.036
3806	305806	32	42	10	6100	6000	13300	8700	0.037
3807	305807	35	47	10	6500	6800	11700	7400	0.04
3808	305808	40	52	10	6900	7600	10300	630	0.046
3809	305809	45	58	10	7000	8100	9300	5700	0.058
3810	305810	50	65	12	8500	10200	8100	5400	0.093
3811	305811	55	72	13	10700	13100	4300	5000	0.134
3812	305812	60	78	14	14200	17100	6600	4700	0.151
3813	305813	65	85	15	15500	20000	6000	4500	0.191
3814	305814	70	90	15	18800	23200	5700	4050	0.205
3815	305815	75	95	15	19000	23000	5400	3800	0.22
3816	305816	80	100	15	19200	24800	5100	3650	0.23
3817	305817	85	110	19	30000	30000	3500	3500	0.35
3818	305818	90	115	19	27000	35500	2750	3200	0.422
3819	305819	95	120	19	25000	37000	2500	3000	0.45
3820	305820	100	125	19	28000	39000	2470	2700	0.458
