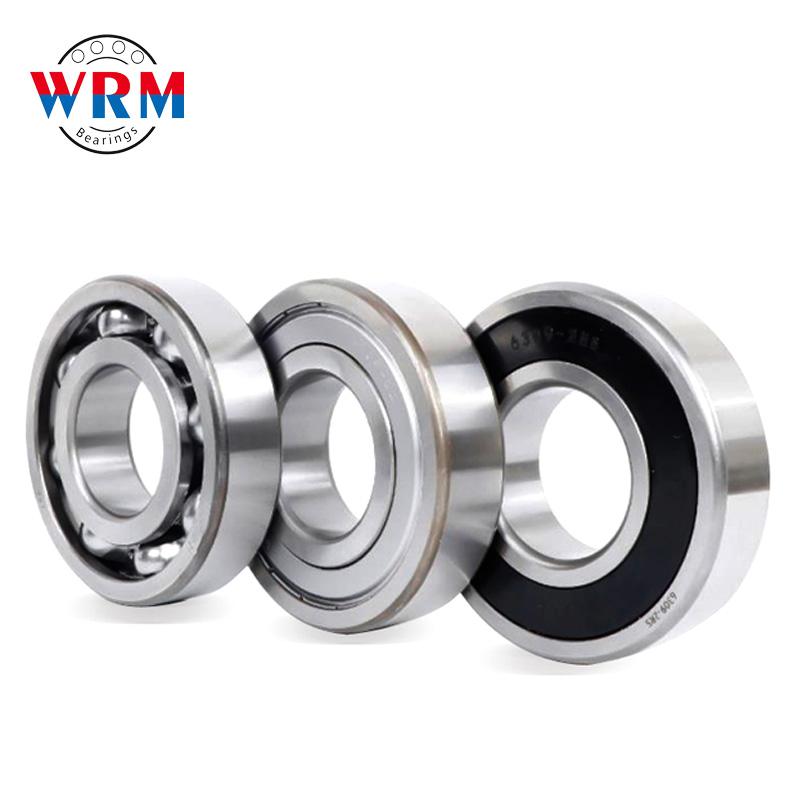

Deep Groove Ball Bearing 6403 Series

Deep groove ball bearings are the most common type of rolling bearings.There are two types of single row and double row, deep groove ball structure also divided into two types of sealed and open structure, open type refers to the bearing without seal structure, sealed deep groove ball is divided into dustproof seal and oil-proof seal.

Deep Groove Ball Bearings

Description

Product Name	Deep Groove Ball Bearing 6403-6420
Material	Chrome Steel
Inside diameter	17-110mm
Outside Diameter	62-280mm
Packing	According to the buyer requests for packaging

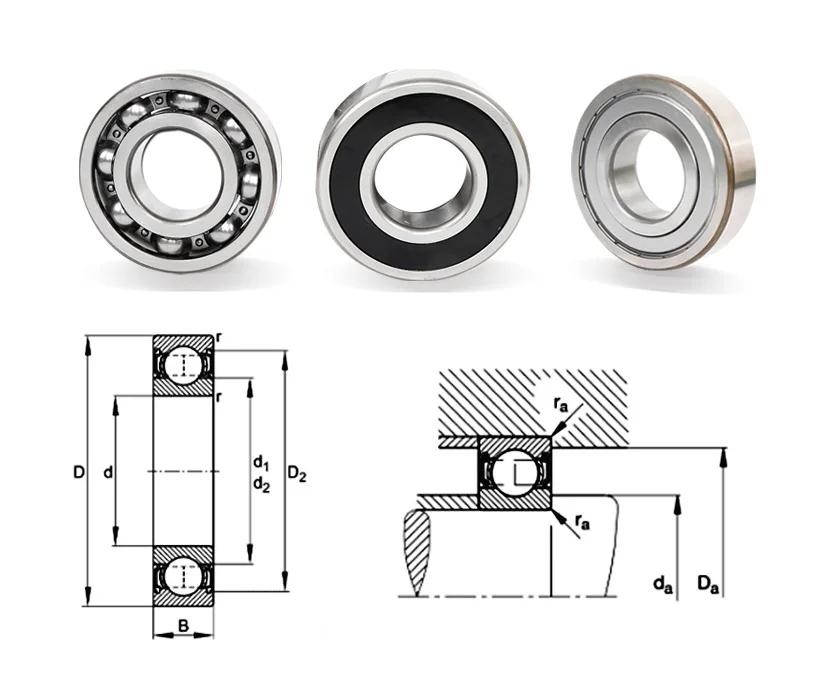

Designation	Old model		Principal Dimension			Basic Load Ratings		Speed ratings(r/min)		Weight
Designation	2RS	ZZ	d	D	B	Dynamic	Static	Grease	Oil	kg
6403	180403	80403	17	62	17	22.7	10.8	11000	15000	0.27
6404	180404	80404	20	72	19	31	15.2	9500	13000	0.4
6405	180405	80405	25	80	21	36.1	19.4	9100	11000	0.53
6406	180406	80406	30	90	23	43.4	23.9	8100	9700	0.735
6407	180407	80407	35	100	25	55	31	7200	8600	0.952
6408	180408	80408	40	110	27	65.5	37.5	6300	8000	1.221
6409	180409	80409	45	120	29	77.5	45.5	5600	7000	1.52
6410	180410	80410	50	130	31	922	55.2	5300	6300	1.855
6411	180411	80411	55	140	33	100	62.5	4800	6000	2.316
6412	180412	80412	60	150	35	109	70	4500	5600	2.811
6413	180413	80413	65	160	37	118	78.5	4300	5300	3.342
6414	180414	80414	70	180	42	140	99.5	3800	4500	4.896
6415	180415	80415	75	190	45	154	115	3600	4300	5.739
6416	180416	80416	80	200	48	163	125	3400	4000	6.752
6417	180417	80417	85	210	52	175	138	3200	3800	7.933
6418	180418	80418	90	225	54	192	158	2800	3600	9.56
6419	180419	80419	95	240	55	204	171	2600	3400	13.4
6420	180420	80420	100	250	58	223	195	2400	3200	15.4
