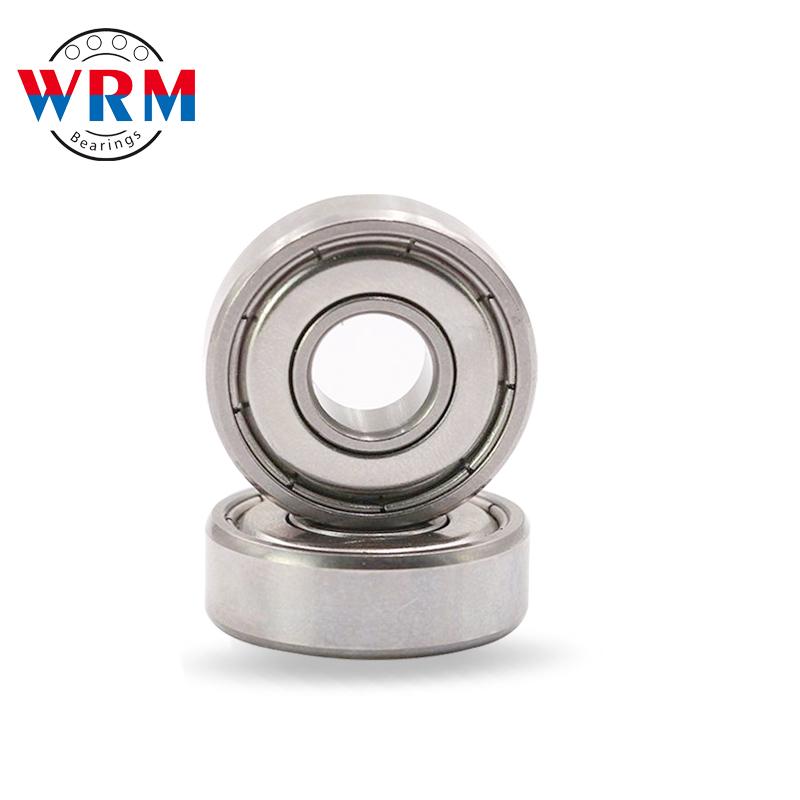

Miniature Deep Groove Ball Bearing 603

Deep groove ball bearings are the most common type of rolling bearings.
There are two types of single row and double row, deep groove ball structure also divided into two types of sealed and open structure, open type refers to the bearing without seal structure, sealed deep groove ball is divided into dustproof seal and oil-proof seal.

Deep Groove Ball Bearings

Description

Product Name	Miniature Deep Groove Ball Bearing 603-699
Material	Chrome Steel
Inside diameter	3-8mm
Outside Diameter	9-28mm
Packing	According to the buyer requests for packaging

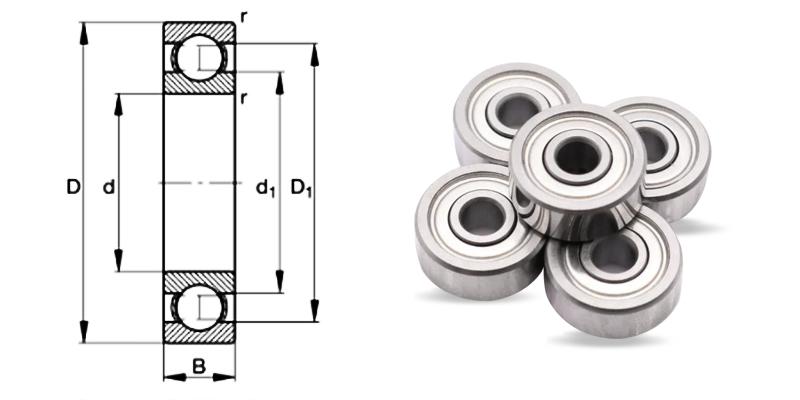

Designation	Principal Dimension			Basic Load Ratings		Speed ratings(r/min)		Weight
Designation	d	D	B	Dynamic	Static	Grease	Oil	kg
603	3	9	3	0.43	0.16	60000	72000	0.002
604	4	12	4	0.96	0.35	43000	48000	0.0023
605	5	14	5	1.07	0.42	39000	46000	0.0037
606	6	17	6	1.96	0.73	37000	43000	0.0069
607	7	19	6	2.8	1.06	35000	40000	0.0082
608	8	22	7	3.29	1.36	32000	37000	0.0129
609	9	24	7	3.33	1.14	30000	35000	0.016
623	3	10	4	0.65	0.22	38000	48000	0.0025
624	4	13	5	1.15	0.4	36000	45000	0.0032
625	5	16	5	1.88	0.68	35000	40000	0.0051
626	6	19	6	2.8	1.06	33000	38000	0.0086
627	7	22	7	3.29	1.36	31000	36000	0.0131
628	8	24	8	3.33	1.41	29000	34000	0.017
629	9	26	8	4.16	1.78	27000	32000	0.0191
634	4	16	5	1.88	0.68	32000	40000	0.0054
635	5	19	6	2.81	1.06	28000	36000	0.0089
636	6	22	7	3.29	1.36	26000	34000	0.0145
637	7	26	9	3.34	1.41	24000	32000	0.0258
638	8	28	9	4.16	1.78	22000	30000	0.0303
682	2	5	1.5	0.169	0.05	85000	100000	0.0007
683	3	7	2	0.311	0.112	63000	75000	0.001
684	4	9	2.5	0.48	0.17	37000	48000	0.001
685	5	11	3	0.77	0.32	35000	45000	0.0019
686	6	13	3.5	1.08	0.44	33000	43000	0.0027
687	7	14	3.5	1.17	0.51	31000	42000	0.003
688	8	16	4	1.25	0.59	30000	4000	0.0038
689	9	17	4	1.33	0.66	29000	38000	0.0044
692	2	6	2.3	0.33	0.099	75000	90000	0.0003
693	3	8	3	0.558	0.18	60000	67000	0.0008
694	4	11	4	0.96	0.35	54000	52000	0.0017
695	5	13	4	1.07	0.42	45000	43000	0.0023
696	6	15	5	1.47	0.6	34000	40000	0.0036
697	7	17	5	1.6	0.71	32000	38000	0.005
698	8	19	6	2.23	0.91	3000	36000	0.0076
699	9	20	6	2.48	1.09	27000	34000	0.0085
