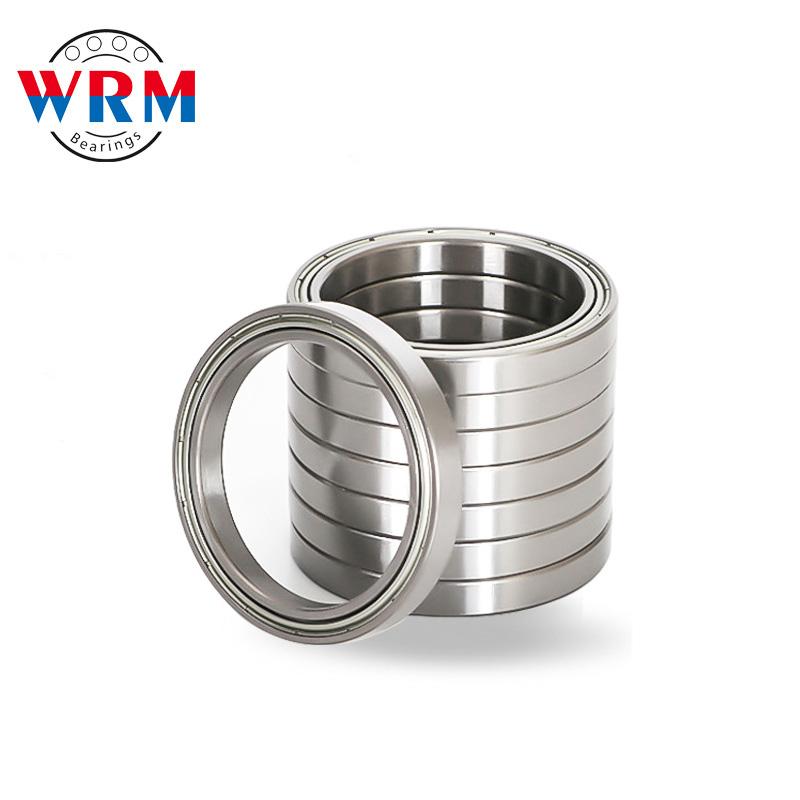

Thin Wall Deep Groove Ball Bearing 6800

Deep groove ball bearings are the most common type of rolling bearings.There are two types of single row and double row, deep groove ball structure also divided into two types of sealed and open structure, open type refers to the bearing without seal structure, sealed deep groove ball is divided into dustproof seal and oil-proof seal.

Deep Groove Ball Bearings

Description

Product Name	Thin Wall Deep Groove Ball Bearing 6800-6848
Material	Chrome Steel
Inside diameter	10-240mm
Outside Diameter	19-300mm
Packing	According to the buyer requests for packaging

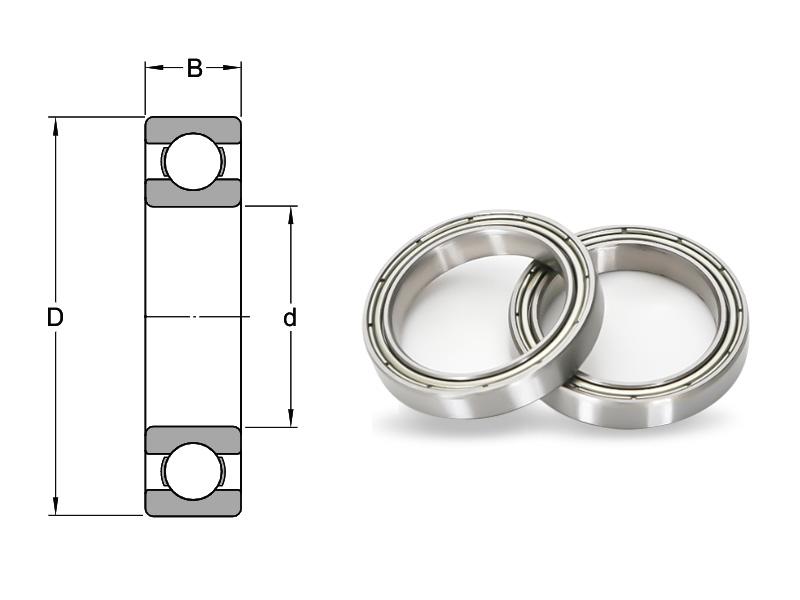

Designation	Old model	Principal Dimension			Basic Load Ratings（KN）		Speed ratings(r/min)		Weight
Designation	Old model	d	D	B	Dynamic	Static	Grease	Oil	kg
6800	1000800	10	19	5	156	85	35000	38500	0.005
6801	1000801	12	21	5	195	106	32000	38000	0.006
6802	1000802	15	24	5	212	128	28000	34000	0.007
6803	1000803	17	26	5	268	160	26000	30000	0.007
6804	1000804	20	32	7	410	252	22000	26000	0.017
6805	1000805	25	37	7	455	320	18000	22000	0.021
6806	1000806	30	42	7	480	870	15000	18000	0.024
6807	1000807	35	47	7	500	420	14000	16000	0.027
6808	1000808	40	52	7	650	565	12000	14000	0.031
6809	1000809	45	58	7	670	625	11000	13000	0.038
6810	1000810	50	65	7	655	635	9500	11000	0.05
6811	1000811	55	72	9	900	865	8500	10000	0.081
6812	1000812	60	78	9	1170	1120	8000	9500	0.103
6813	1000813	65	85	10	1220	1230	7500	8500	0.128
6814	1000814	70	90	10	1230	1300	6700	8000	0.134
6815	1000815	75	95	10	1280	1410	6300	7500	0.149
6816	1000816	80	100	10	1290	1470	6000	7100	0.151
6817	1000817	85	110	13	1910	2040	5600	6700	0.263
6818	1000818	90	115	13	1940	2140	5300	6300	0.276
6819	1000819	95	120	13	1970	2240	5000	6000	0.297
6820	1000820	100	125	13	2000	2340	4800	5600	0.31
6821	1000821	105	130	13	2020	2440	4800	5600	0.324
6822	1000822	110	140	16	2880	3350	4300	5300	0.497
6824	1000824	120	150	16	2950	3650	4000	4800	0.537
6826	1000826	130	165	18	3750	4450	3600	4300	0.758
6828	1000828	140	175	18	3900	4850	3400	4000	0.832
6830	1000830	150	190	20	4850	5950	3200	3800	1.15
6832	1000832	160	200	20	4950	6250	2600	3200	1.23
6834	1000834	170	215	22	6100	7650	2600	3000	1.85
6836	1000836	180	225	22	6200	8000	2400	2800	1.98
6838	1000838	190	240	24	7450	9550	2200	2600	2.53
6840	1000840	200	250	24	7550	1000	2200	2600	2.67
6844	1000844	220	270	24	7800	10900	1900	2400	2.9
6848	1000848	240	300	28	10000	14000	1700	2000	4.48
6852	1000852	260	320	28	95	128	1300	1700	4.85
6856	1000856	280	350	33	135	178	1200	1600	7.4
6860	1000860	300	380	38	162	222	1100	1400	11
6864	1000864	320	400	38	168	235	1000	1300	11.8
6868	1000868	340	420	38	174	265	1000	1300	12
6872	1000872	360	440	38	182	285	1100	1400	11.8
6876	1000876	380	480	46	235	348	800	1000	20.5
6880	1000880	400	500	46	247	405	950	1200	21.7
6884	1000884	420	520	46	251	425	950	1180	22
6888	1000888	440	540	46	251	425	950	1180	23.6
6892	1000892	460	580	56	322	538	860	1000	33.5
6896	1000896	480	600	56	315	610	870	1100	36
