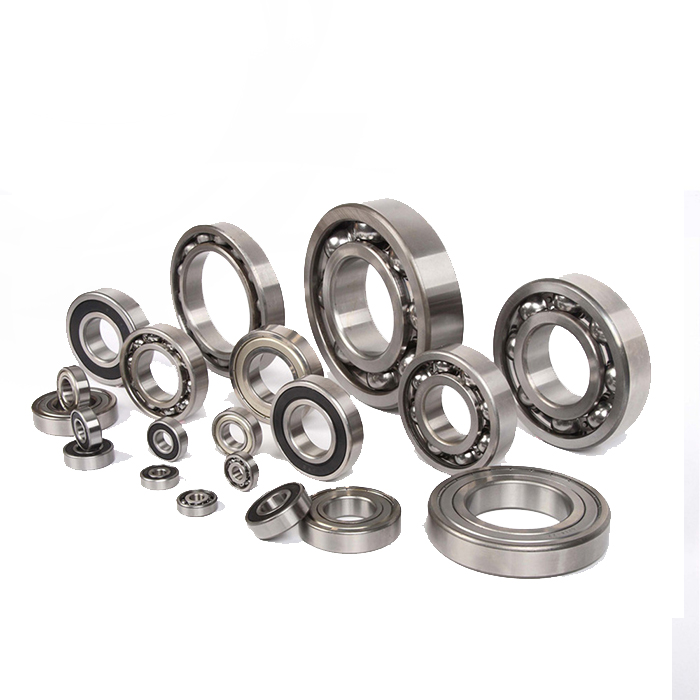

Deep Groove Ball Bearing 6000

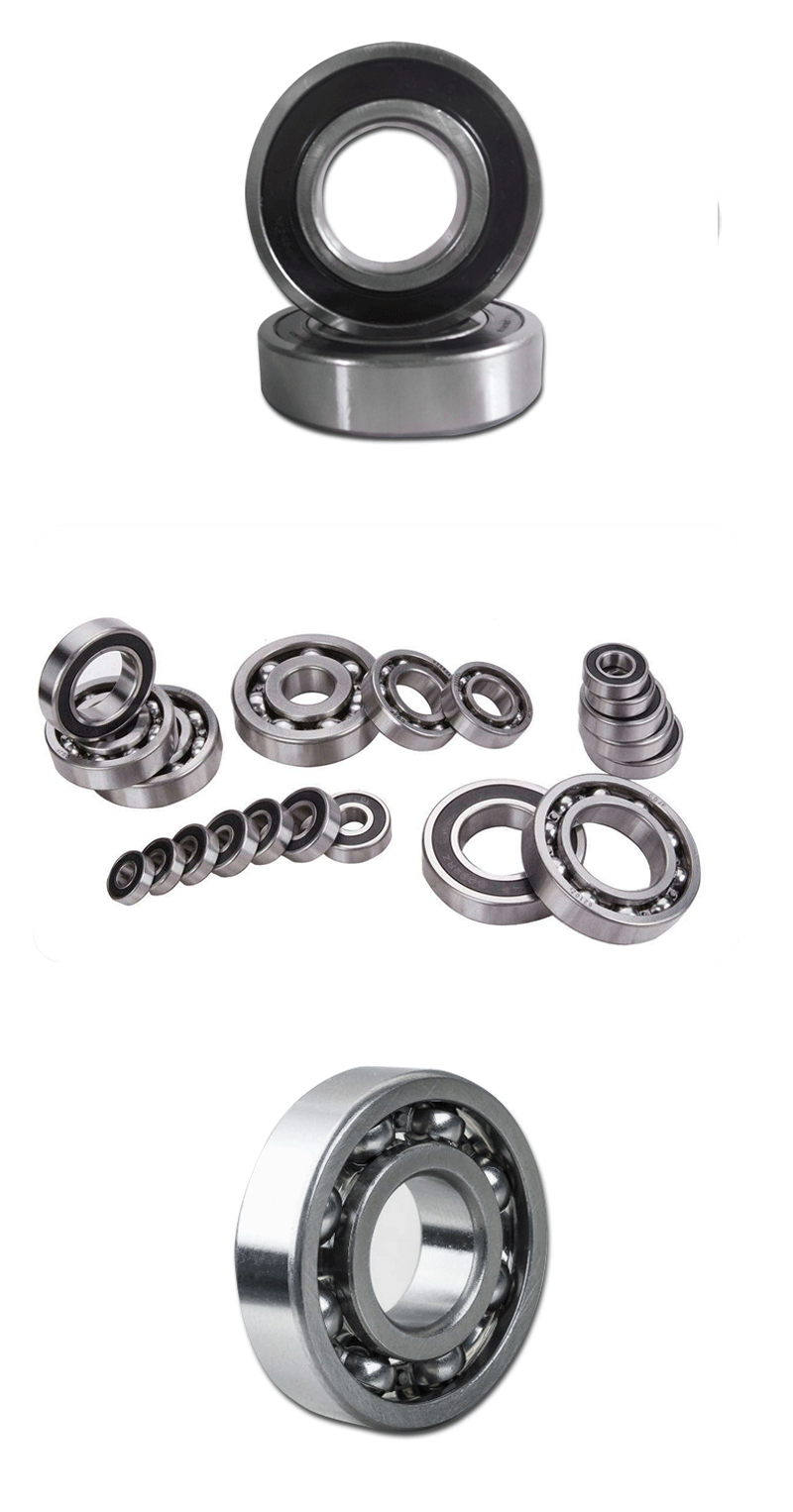

Deep groove ball bearings are the most common type of rolling bearings.There are two types of single row and double row, deep groove ball structure also divided into two types of sealed and open structure, open type refers to the bearing without seal structure, sealed deep groove ball is divided into dustproof seal and oil-proof seal.

Description

Product Name	Deep Groove Ball Bearing 6000-6096
Material	Chrome Steel
Inside diameter	10-480mm
Outside Diameter	26-700mm
Packing	According to the buyer requests for packaging

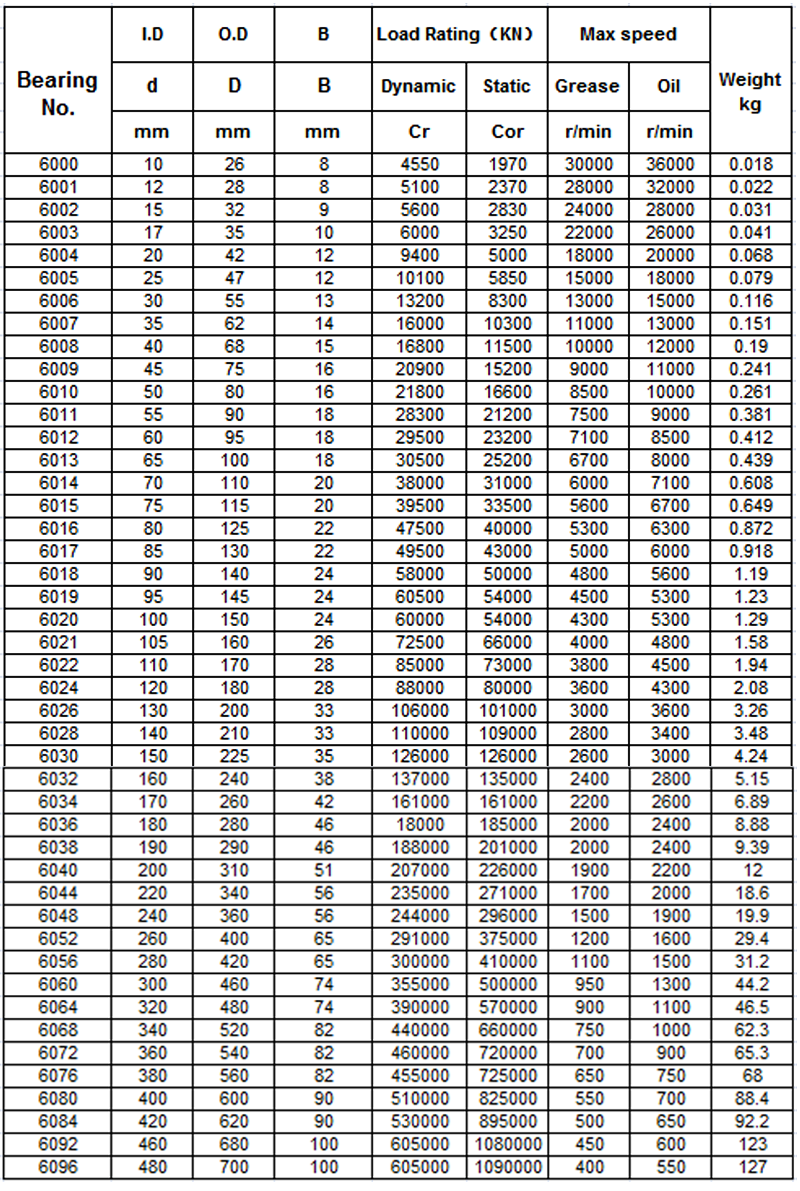

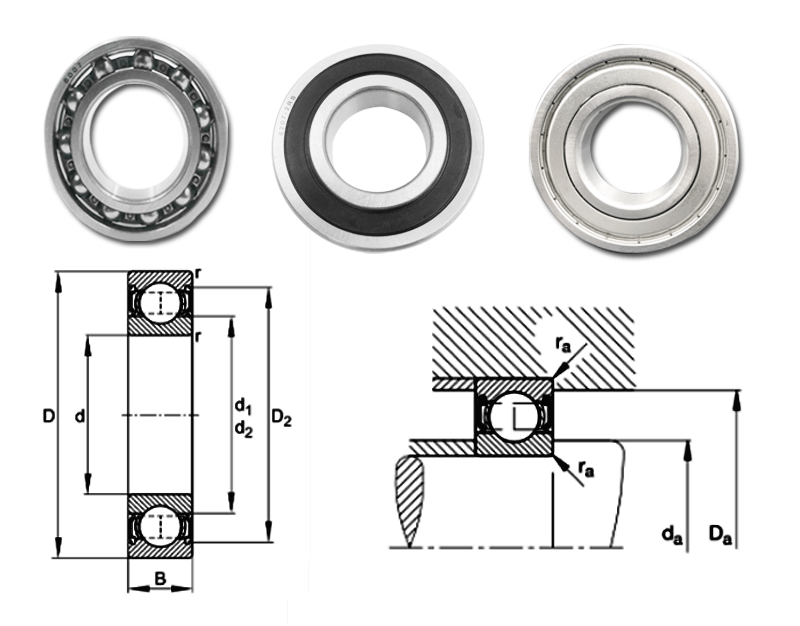

Designation	Old model			Principal Dimension			Basic Load Ratings（KN）		Speed ratings(r/min)		Weight
Designation	open	2RS	ZZ	d	D	B	Dynamic	Static	Grease	Oil	kg
6000	100	180100	80100	10	26	8	465	201	30000	36000	0.018
6001	101	180101	80101	12	28	8	520	241	28000	32000	0.022
6002	102	180102	80102	15	32	9	570	289	24000	28000	0.031
6003	103	180103	80103	17	35	10	610	330	22000	26000	0.041
6004	104	180104	80104	20	42	12	955	510	18000	20000	0.068
6005	105	180105	80105	25	47	12	1030	595	15000	18000	0.079
6006	106	180106	80106	30	55	13	1350	845	13000	15000	0.116
6007	107	180107	80107	35	62	14	1630	1050	11000	13000	0.151
6008	108	180108	80108	40	68	15	1710	1180	10000	12000	0.19
6009	109	180109	80109	45	75	16	2140	1550	9000	11000	0.241
6010	110	180110	80110	50	80	16	2220	1700	8500	10000	0.261
6011	111	180111	80111	55	90	18	2880	2170	7500	9000	0.381
6012	112	180112	80112	60	95	18	3000	2370	7100	8500	0.412
6013	113	180113	80113	65	100	18	3100	2570	6700	8000	0.439
6014	114	180114	80114	70	110	20	3900	3150	6000	7100	0.608
6015	115	180115	80115	75	115	20	4050	3400	5600	6700	0.649
6016	116	180116	80116	80	125	22	4850	4050	5300	6300	0.872
6017	117	180117	80117	85	130	22	5050	4400	5000	6000	0.918
6018	118	180118	80118	90	140	24	5950	5050	4800	5600	1.19
6019	119	180119	80119	95	145	24	6150	5500	4500	5300	1.23
6020	120	180120	80120	100	150	24	6150	5550	4300	5300	1.29
6021	121	180121	80121	105	160	26	7400	6700	4000	4800	1.58
6022	122	180122	80122	110	170	28	8650	7450	3800	4500	1.94
6024	124	180124	80124	120	180	28	9000	8150	3600	4300	2.08
6026	126	180126	80126	130	200	33	10800	10300	3000	3600	3.26
6028	128	180128	80128	140	210	33	11200	11100	2800	3400	3.48
6030	130	180130	80130	150	225	35	12800	12800	2600	3000	4.24
6032	132	180132	80132	160	240	38	13900	13800	2400	2800	5.15
6034	134	180134	80134	170	260	42	16400	16400	2200	2600	6.89
6036	136	180136	80136	180	280	46	18400	18800	2000	2400	8.88
6038	138	180138	80138	190	290	46	19200	20500	2000	2400	9.39
6040	140	180140	80140	200	310	51	21100	23000	1900	2200	12
6044	144	180144	80144	220	340	56	24000	27600	1700	2000	18.6
6048	148	180148	80148	240	360	56	24900	30000	1500	1900	19.9
6052	152	180152	80152	260	400	65	29700	38500	1400	1800	29.4
6056	156	180156	80156	280	420	65	31000	41500	1300	1750	31.2
6060	160	180160	80160	300	460	74	36500	51000	1200	1600	44.2
6064	164	180164	80164	320	480	74	40000	58000	1100	1500	46.5
6068	168	180168	80168	340	520	82	45000	67500	1000	1350	62.3
6072	172	180172	80172	360	540	82	47000	73500	900	1300	65.3
6076	176	180176	80176	380	560	82	46500	74000	800	1200	68
6080	180	180180	80180	400	600	90	52000	84000	700	1100	88.4
6084	184	180184	80184	420	620	90	54000	91000	600	1000	92.2
6092	192	180192	80192	460	680	100	62000	110000	500	900	123
6096	196	180196	80196	480	700	100	61500	111000	400	800	127
