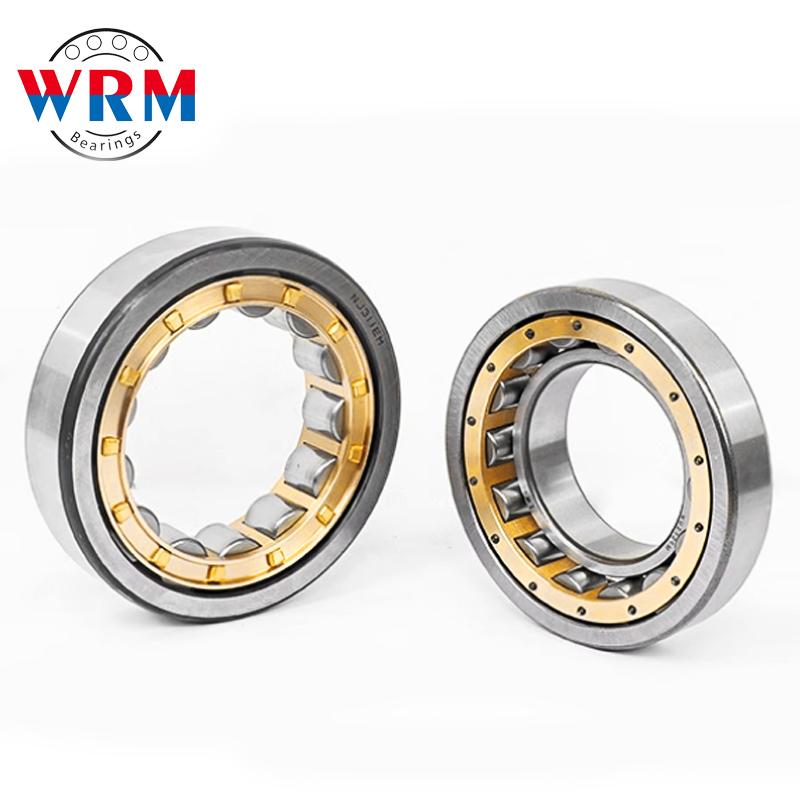

Cylindrical Roller Bearing NJ1004EM

Cylindrical roller and raceway for line contact bearing.
Large load capacity, mainly bearing radial load.
The friction between rolling body and ring retaining edge is small, suitable for high speed rotation.
According to whether the ring has a side, it can be divided into NU, NJ, NUP, N, NF and other single-row cylindrical roller bearings, and NNU, NN and other double-row cylindrical roller bearings.
The bearing is a detachable structure with inner and outer rings.

Description

Product Name	Cylindrical Roller Bearings NJ1004EM
Material	Chrome Steel
Inside diameter	20-320mm
Outside Diameter	42-480mm
cage	brass,steel
Packing	According to the buyer requests for packaging

Designation	Old model	Principal Dimension			Basic Load Ratings（KN）		Speed ratings(r/min)		Weight
Designation	Old model	d	D	B	Dynamic	Static	Grease	Oil	kg
NJ1004EM	42104EH	20	42	12	10.5	9.2	13000	17000	0.079
NJ1005EM	42105EH	25	47	12	22	23.6	8000	12000	0.15
NJ1006EM	42106EH	30	55	13	32	35	7000	9000	0.139
NJ1007EM	42107EH	35	62	14	35.8	38	9100	13000	0.26
NJ1008EM	42108EH	40	68	15	25.1	26	13000	18000	0.3
NJ1009EM	42109EH	45	75	16	44.6	52	7700	11000	0.3
NJ1010EM	42110EH	50	80	16	22	23.6	8000	12000	0.34
NJ1011EM	42111EH	55	90	18	32	35	7000	9000	0.44
NJ1012EM	42112EH	60	95	18	52	55	14800	6400	0.48
NJ1013EM	42113EH	65	100	18	62.7	81.5	5300	7500	0.52
NJ1014EM	42114EH	70	110	20	77	81	12300	5500	0.72
NJ1015EM	42115EH	75	115	20	78	85	11800	5200	0.739
NJ1016EM	42116EH	80	125	22	91	99	10800	5000	1.21
NJ1017EM	42117EH	85	130	22	93	103	10400	4750	1.05
NJ1018EM	42118EH	90	140	24	111	124	9600	4550	1.36
NJ1019EM	42119EH	95	145	37	113	130	9300	4350	2.21
NJ1020EM	42120EH	100	150	24	116	177	9000	4150	1.85
NJ1021EM	42121EH	105	160	26	132	154	8400	4050	1.85
NJ1022EM	42122EH	110	170	28	167	191	7700	3850	2.3
NJ1024EM	42124EH	120	180	28	175	208	7300	3550	3.86
NJ1026EM	42126EH	130	200	33	212	250	6500	3500	3.96
NJ1028EM	42128EH	140	210	33	216	265	6200	3250	4.62
NJ1030EM	42130EH	150	225	35	248	310	5800	3100	4.8
NJ1032EM	42132EH	160	240	38	290	355	5400	3000	6
NJ1034EM	42134EH	170	260	42	350	435	4900	2750	8.5
NJ1036EM	42136EH	180	280	46	425	520	4500	2550	8.78
NJ1038EM	42138EH	190	290	46	435	550	4350	2410	9.85
NJ1040EM	42140EH	200	310	51	470	600	4100	2310	14.3
NJ1044EM	42144EH	220	340	56	510	770	3150	2040	19.6
NJ1048EM	42148EH	240	360	56	540	840	3000	1850	20.4
NJ1052EM	42152EH	260	400	65	650	1010	2700	1690	30.6
NJ1056EM	42156EH	280	420	65	965	600	850	1100	33
NJ1060EM	42160EH	300	460	74	900	1430	2290	1390	44
NJ1064EM	42164EH	320	480	74	1520	890	750	950	46
