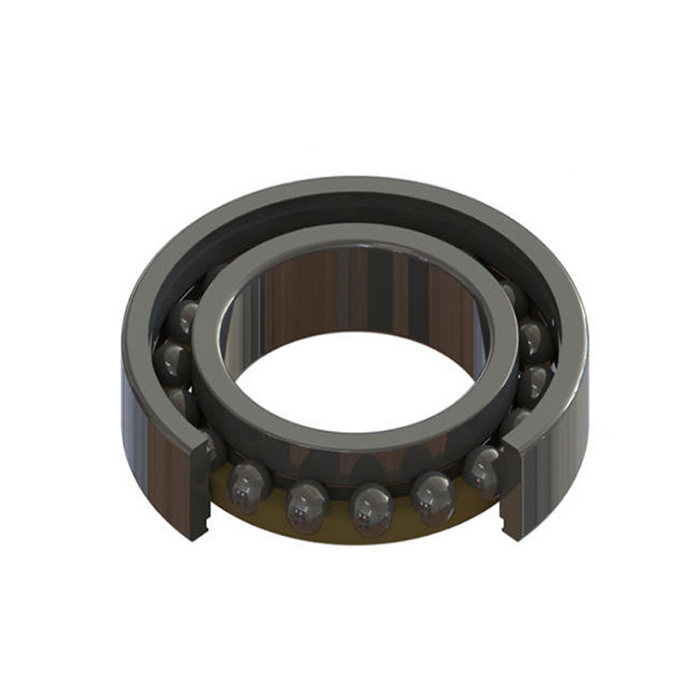

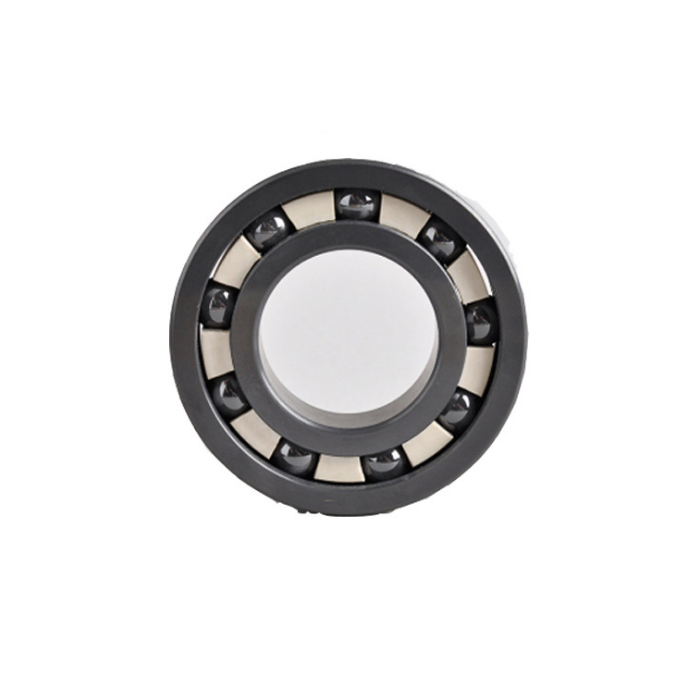

Ceramic Bearing 16100

Silicon nitride all-ceramic bearing rings and rolling body are made of silicon nitride (Si3N4) ceramic materials. Rpa66-25, PEEK, PI and bakelite pipe can also be used in general.
SiN4 all-ceramic bearings are suitable for higher speed and load capacity as well as higher ambient temperatures compared to ZrO2 materials.
Precision ceramic bearings for high speed, high precision and high rigidity spindles are also available, with the highest manufacturing accuracy UP to Grade P4 to UP.

Ceramic Bearings

Description

Product Name	Ceramic Bearing 16100
Material	Chrome Steel
Inside diameter	12-130mm
Outside Diameter	28-200mm
Packing	According to the buyer requests for packaging

Designation	Principal Dimension			Basic Load Ratings		Speed ratings(r/min)		Weight
Designation	d	D	B	Dynamic	Static	Grease	Oil	kg
16001	12	28	7	5.1	2.4	20000	26000	0.024
16002	15	32	8	5.6	2.8	19000	24000	0.025
16003	17	35	8	6	3.3	18000	22000	0.032
16004	20	42	8	7.9	4.5	16000	19000	0.05
16005	25	47	8	8.85	5.6	15000	18000	0.06
16006	30	55	9	11.2	7.35	13000	15000	0.085
16007	35	62	9	12.2	8.85	11000	13000	0.11
16008	40	68	9	12.6	9.6	9000	11000	0.125
16009	45	75	10	15.6	12.2	8000	10000	0.155
16010	50	80	10	16.1	13.1	8000	9500	0.166
16011	55	90	11	19.4	16.2	7000	8500	0.207
16012	60	95	11	19.9	17.5	6300	7500	0.224
16013	65	100	11	20.5	18.6	6000	7000	0.241
16014	70	110	13	27.9	25	5600	6700	0.386
16015	75	115	13	28.7	26.8	5300	6300	0.411
16016	80	125	14	33.1	31.4	5000	6000	0.539
16017	85	130	14	34	33.3	4500	5600	0.968
16018	90	140	16	41.5	39.3	4300	5300	0.671
16019	95	145	16	42.7	41.9	4000	5000	0.71
16020	100	150	16	43.8	44.3	3800	4800	0.74
16021	105	160	18	51.8	50.6	3600	4500	1
16022	110	170	19	57.4	56.7	3400	4300	1.27
16024	120	180	19	60.2	62.1	3200	4000	1.374
16026	130	200	22	63.5	66.5	3300	3800	1.868
