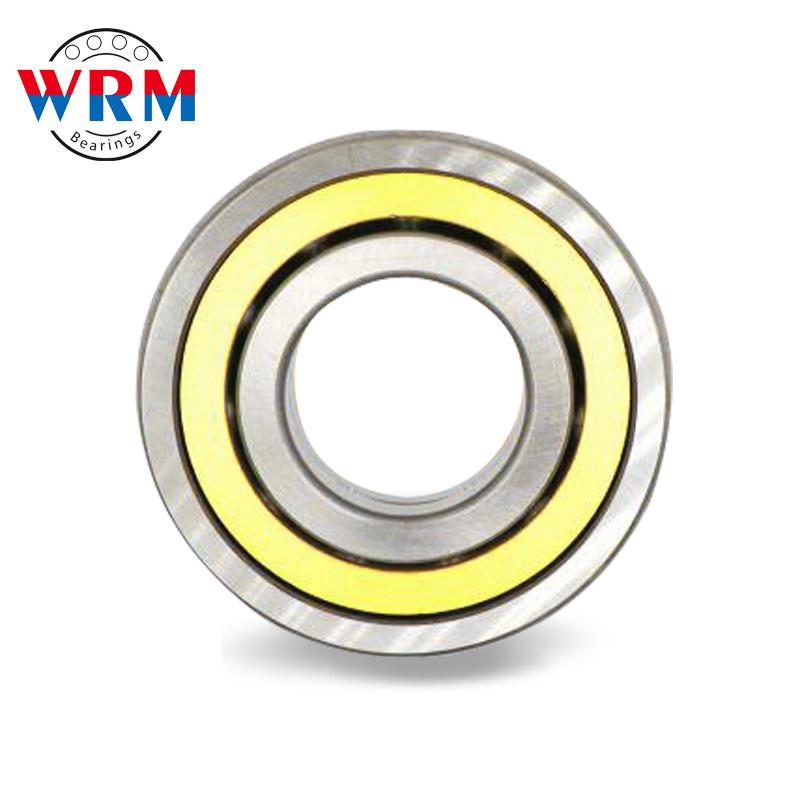

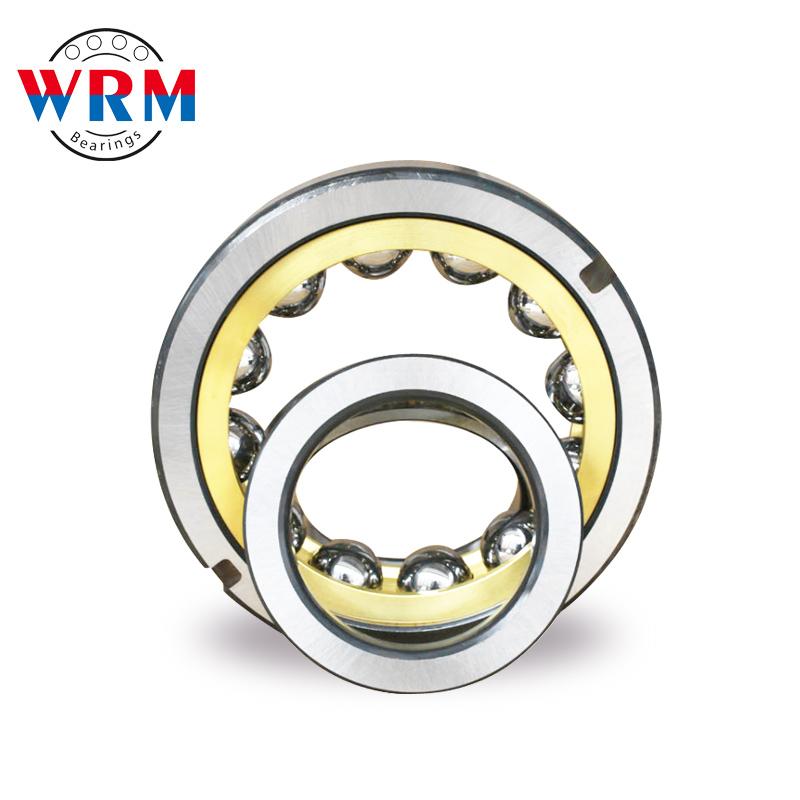

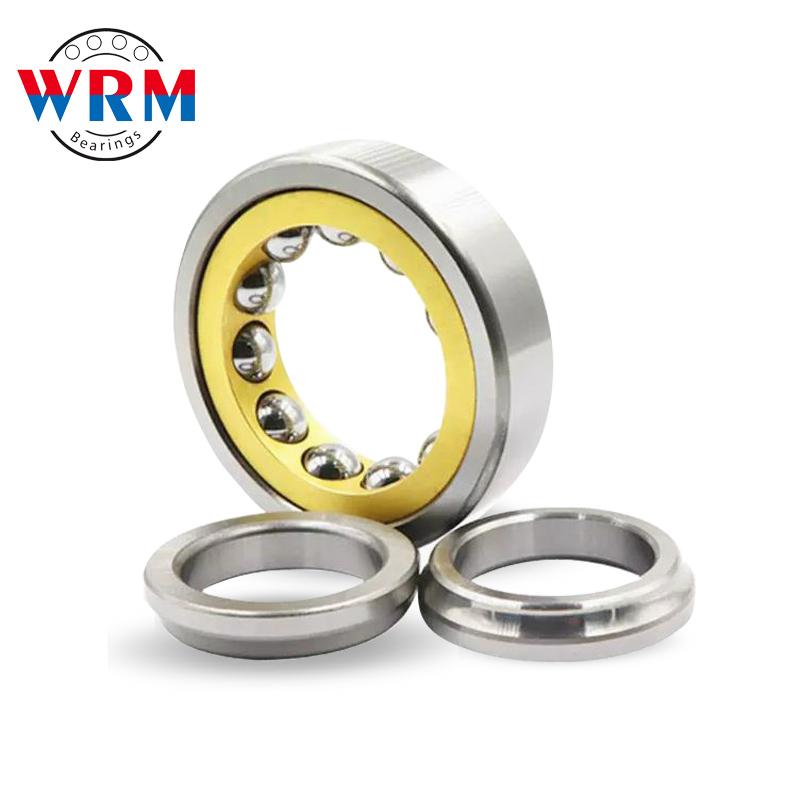

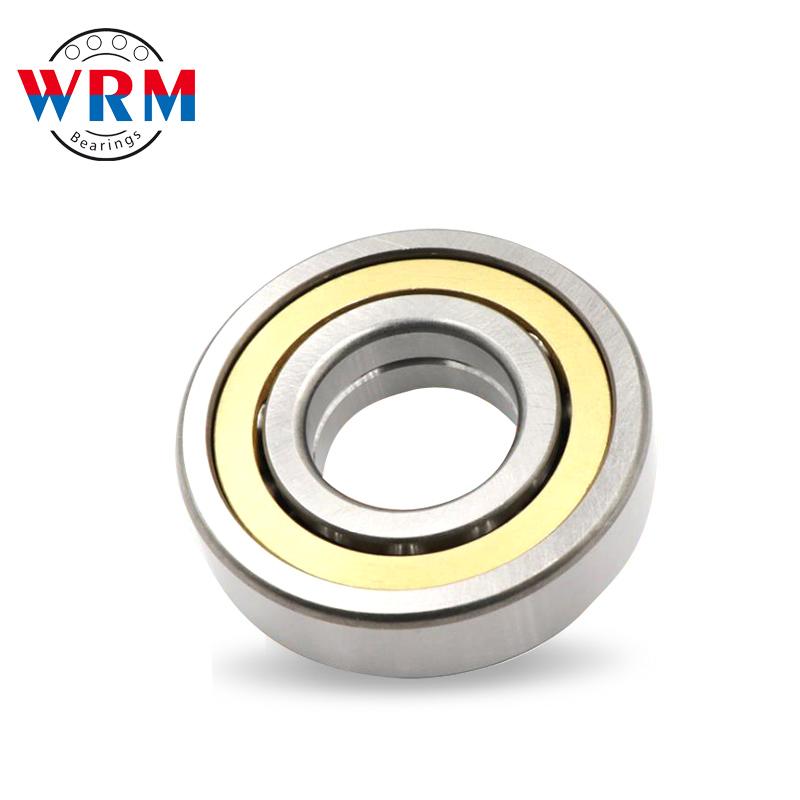

Angular Contact Ball Bearings QJ1018M

Can bear radial load and axial load at the same time.It can work at high speed.The larger the contact Angle is, the higher the axial bearing capacity is.High precision and high speed bearings are usually at 15 degrees of contact Angle.Under the axial force, the contact Angle will increase.

Description

Product Name	Angular Contact Ball Bearings QJ1018M
Material	Chrome Steel
Inside diameter	90-240mm
Outside Diameter	140-360mm
Packing	According to the buyer requests for packaging

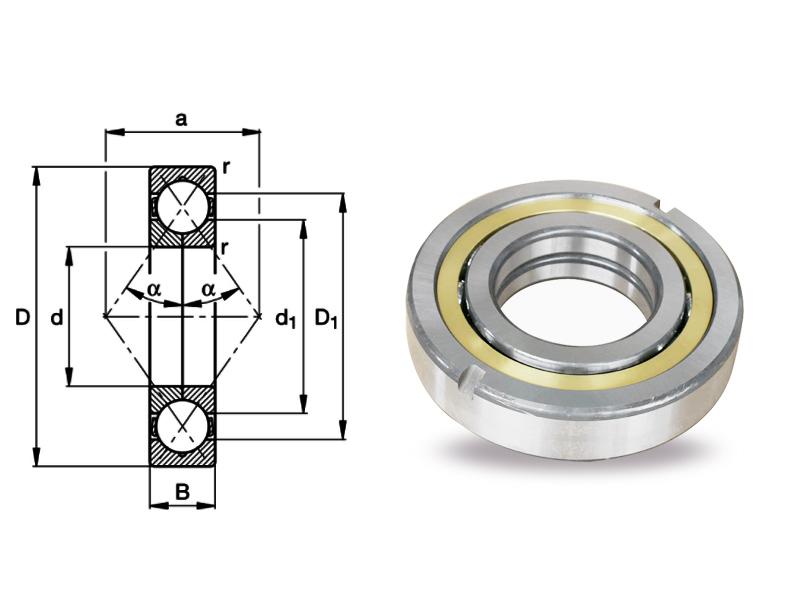

Bearings No.				Principal Dimension			Basic Load Ratings（KN）		Speed ratings(r/min)		Weight
CHINA	FAG	SKF	NSK	d	D	B	Dynamic	Static	Grease	Oil	kg
QJ1018M	QJ1018-XL-MPA	QJ1018MA	QJ1018	90	140	24	30560	35000	3000	12200	1.3
QJ1020M	QJ1020-XL-MPA	QJ1020MA	QJ1020	100	150	24	38000	45000	2700	14500	1.8
QJ1022M	QJ1022-XL-MPA	QJ1022MA	QJ1022	110	170	28	46000	61333	2300	20444	2.52
QJ1024M	QJ1024-XL-MPA	QJ1024MA	QJ1024	120	180	28	48333	66667	2167	22222	2.707
QJ1026M	QJ1026-XL-MPA	QJ1026MA	QJ1026	130	200	33	58667	81000	1933	27000	4.44
QJ1028M	QJ1028-XL-MPA	QJ1028MA	QJ1028	140	210	33	59333	83333	1833	27778	4.32
QJ1030M	QJ1030-XL-MPA	QJ1030MA	QJ1030	150	225	35	68333	98333	1700	32778	6.17
QJ1032M	QJ1032-XL-MPA	QJ1032MA	QJ1032	160	240	38	77000	111667	1583	37222	6.5
QJ1034M	QJ1034-XL-MPA	QJ1034MA	QJ1034	170	260	42	98333	143333	1450	47778	8.67
QJ1036M	QJ1036-XL-MPA	QJ1036MA	QJ1036	180	280	46	113333	170000	1350	56667	11.42
QJ1040M	QJ1040-XL-MPA	QJ1040MA	QJ1040	200	310	51	130000	206667	1200	68889	15
QJ1044M	QJ1044-XL-MPA	QJ1044MA	QJ1044	220	340	56	146667	243333	1083	81111	19.368
QJ1048M	QJ1048-XL-MPA	QJ1048MA	QJ1048	240	360	56	150000	263333	1017	87778	21.4
