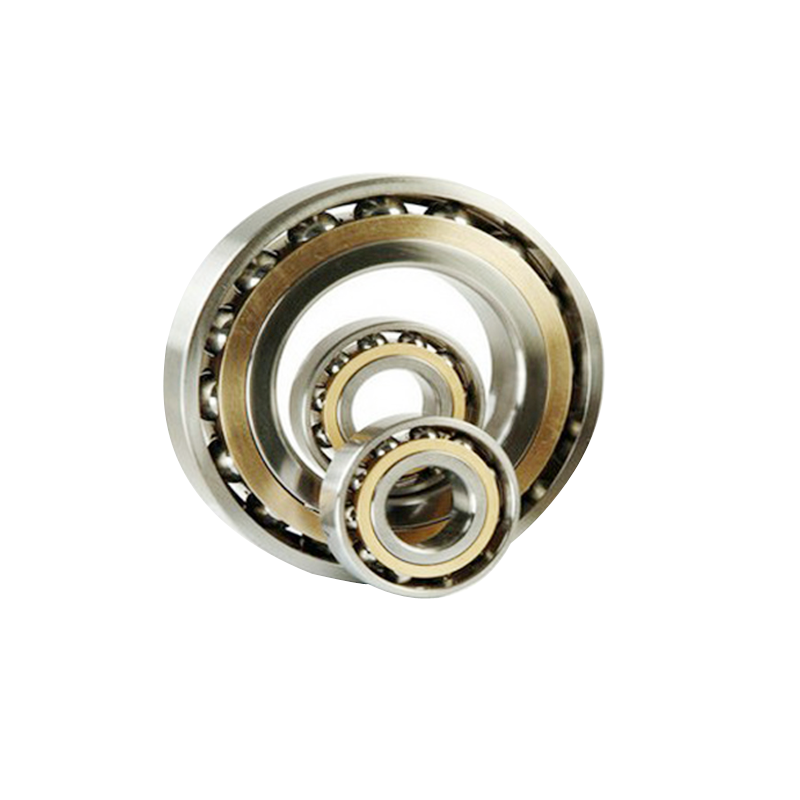

Angular Contact Ball Bearings 7405AC

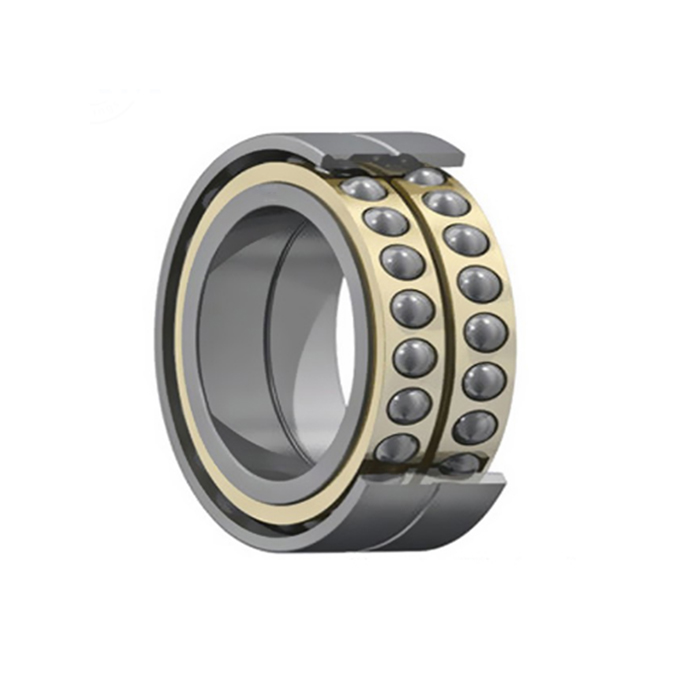

The design of double-row angular contact ball bearings is basically the same as that of single-row angular contact ball bearings, but occupies less axial space.
The double-row angular contact ball bearing can bear radial load and axial load acting in two directions, it can limit the axial displacement of the shaft or housing in two directions, the contact Angle is 30 degrees.
Provides high rigidity bearing configuration, and can withstand overturning torque.

Description

Product Name	Angular Contact Ball Bearings 7405AC
Material	Chrome Steel
Inside diameter	25-160mm
Outside Diameter	80-400mm
Packing	According to the buyer requests for packaging

Designation	Principal Dimension			Basic Load Ratings		Speed ratings(r/min)		Weight（kg）
Designation	d	D	B	Dynamic	Static	Grease	Oil	Weight（kg）
7405AC	25	80	21	43500	26000	16600	7500	0.586
7406AC	30	90	23	51000	30500	14500	6800	0.805
7407AC	35	100	25	65000	43000	12100	5400	1.058
7408AC	40	110	27	75000	50000	10900	5000	1.368
7409AC	45	120	29	86000	61000	10000	4650	1.715
7410AC	50	130	31	96000	69000	9200	4400	2.105
7411AC	55	140	33	110000	82000	8400	4150	2.642
7412AC	60	150	35	126000	93000	7800	3950	3.14
7414AC	70	180	42	167000	138000	6400	3450	5.495
7416AC	80	200	48	200000	169000	5800	3600	7.758
7418AC	90	225	54	232000	206000	5100	5300	11.1
7420AC	100	250	58	250000	215000	5000	5200	15.6
7422AC	110	280	65	258000	225000	4800	5000	17.9
7432AC	160	400	88	260000	235000	4600	4800	59.7
